Hydrogen Generator

Name: Hydrogen Generator
Brand: UNITED ENTERPRISES
Price: 1800000.0 INR
Availability: InStock

Price 1800000.0 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

Hydrogen Generator Specification

Product Type
Hydrogen Generator

General Use
Industrial Hydrogen Production

Material
Stainless Steel

Type
Electrolytic Type / PSA Type

Capacity
3 Nm3/h - 1000 Nm3/h

Purity(%)
99.999%

Production Rate
Continuous

Weight (kg)
600 kg - 3500 kg (Depends on model)

Computerized
Yes

Automatic
Yes

Feeding Size
Custom / As required

Control System
PLC Based, Fully Automatic

Pressure
1.5 MPa (15 bar)

Dew Point
-70 C

Power
10 kW - 100 kW (Depends on capacity)

Voltage
380V - 440V, Three Phase

Dimension (L*W*H)
Varies as per model (e.g., 16009001900 mm)

Feature
Energy Saving, Low Noise, High Efficiency

Color
White / Grey

Start-up Time
15 minutes

Safety System
Overpressure, Water/Lye Level, Power Failure Protection

Cooling Method
Air / Water Cooled

Input Water Quality
Deionized / Demineralized Water, Conductivity <1 S/cm

Noise Level
<60 dB

Installation
Skid Mounted

Display
Digital Touch Screen

Outlet Connection
Customizable

Operation Temperature
5C - 40C

Hydrogen Outlet Pressure
0.1~1.5 MPa adjustable

Compliance
CE, ISO9001 Certified

Maintenance
Low Maintenance Design

About Hydrogen Generator

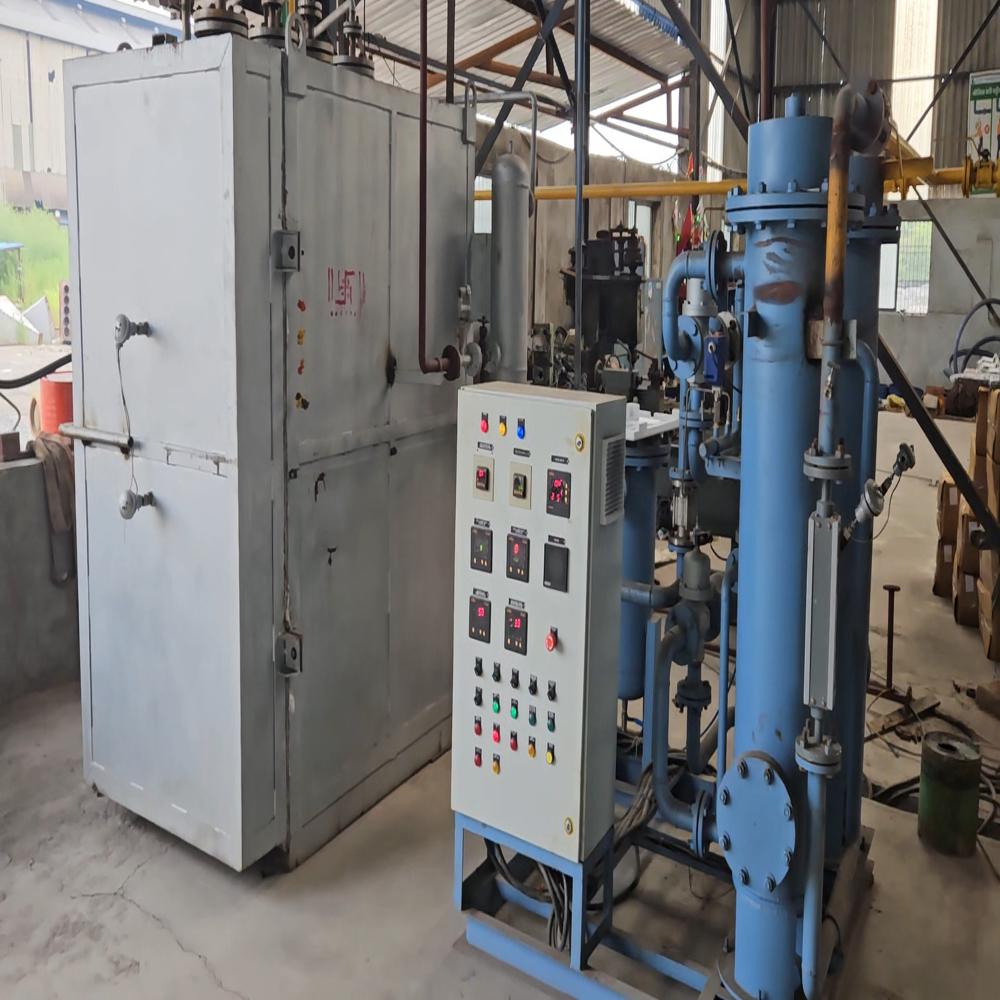

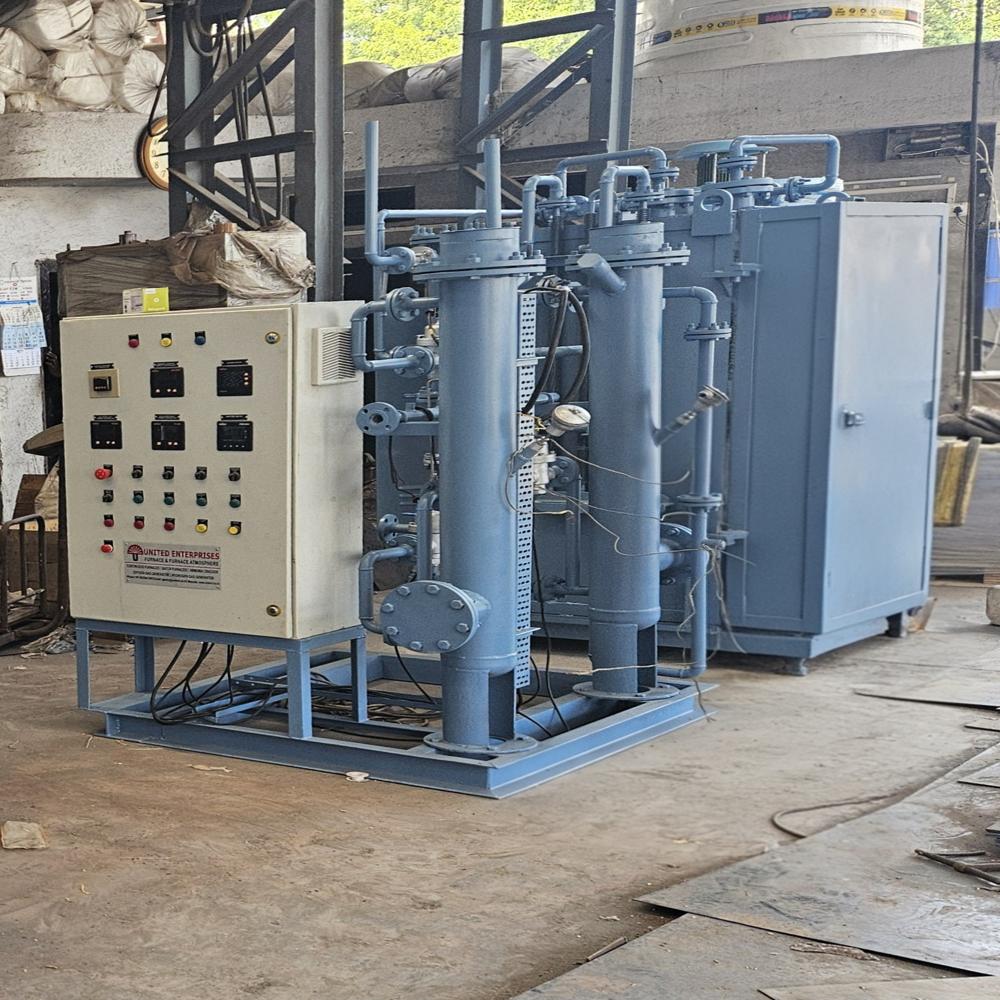

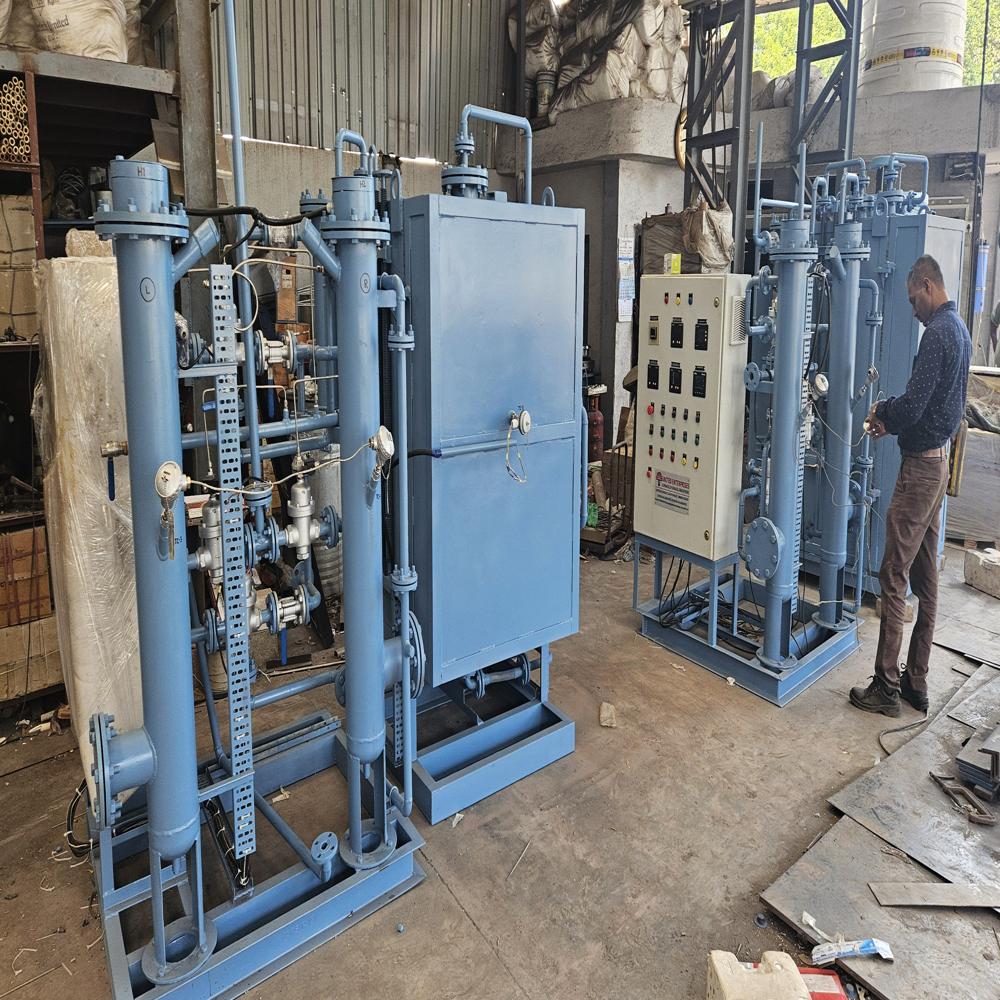

Hydrogen Generator manufactured by United Enterprises is an on-site hydrogen production system based on water electrolysis or methanol cracking delivering high-purity hydrogen for bright annealing, brazing, electronics and laboratory applications.

Brief Description:

We manufacture and export best-in-class Hydrogen Generators, used wherever high-purity hydrogen is needed for industrial heat treatment, brazing or laboratory applications. Our Hydrogen Generators are available in water-electrolysis and methanol-cracking variants, with flow rates from 1 Nm/hr to 100+ Nm/hr and purities up to 99.999%.

Water-electrolysis units use alkaline electrolyte and modern bipolar cells; methanol-cracking units use a catalyst to crack methanol-water mixtures into a hydrogen-rich gas. Both designs include PLC-based control, safety systems and PSA / Pd-membrane purification for low residual moisture and CO.

Each unit is engineered around the customers flow, purity and pressure requirements.

Characteristics:

On-site hydrogen generation
Water electrolysis or methanol cracking
Flow rate from 1 Nm/hr to 100+ Nm/hr
Purity up to 99.999%
PSA or Pd-membrane purification
PLC and SCADA-based control
Robust industrial-duty construction
Comprehensive safety systems

About United Enterprises:

United Enterprises is over 25+ years experienced Hydrogen Generator manufacturer in India. We design, manufacture, supply, export and commission tailor-made Hydrogen Generators across Asia and Europe. Established in 1998, we are an established manufacturer and exporter in India, supplying SS pipe, copper, electronics, jewellery and laboratory industries all under CE and ISO standards.

FAQs:

Q: Electrolysis or methanol cracking?

A: Electrolysis is cleaner (only water and electricity needed); methanol cracking is often more economical at higher capacities.

Q: What purity can I get?

A: Up to 99.999% with appropriate purification Pd-membrane purifiers can give even higher purity.

Q: Safety is on-site hydrogen safe?

A: With proper design, ventilation and safety devices (per applicable standards), on-site hydrogen generation is well-established industrial practice.

Reliable and Efficient Hydrogen Production

Harnessing electrolytic or PSA methods, our generator ensures continuous high-efficiency hydrogen output with purity up to 99.999%. With energy-saving technology and adaptable production rates, this equipment is suitable for a broad range of industrial applications demanding consistent hydrogen supply.

Advanced Safety and Automation

Safety systems for overpressure, water/lye level, and power failure protection are integral to our design. The PLC-based control system and digital touch screen display enable simple, automated operation, minimizing manual intervention and maximizing reliability.

Versatile Installation and Customization

The skid-mounted design allows for straightforward installation, with customizable outlet connections and feeding sizes to suit diverse industrial setups. The generator operates quietly (<60 dB) within a wide temperature range, offering flexibility for different environments and requirements.

FAQ's of Hydrogen Generator:

Q: How does the hydrogen generator process work?

A: The generator produces hydrogen either via water electrolysis or Pressure Swing Adsorption (PSA), using deionized/demineralized water. The process is fully automated and managed through a PLC system, ensuring high purity and continuous output.

Q: What are the benefits of using air or water-cooled options in this hydrogen generator?

A: Both cooling methods maintain optimal operating temperatures (5C-40C), reduce wear, and enhance efficiency. The choice between air or water-cooling allows adaptation to site-specific environmental or infrastructure needs.

Q: When should I perform maintenance on this hydrogen generator?

A: Thanks to its low-maintenance design, only periodic inspections of the water/lye levels and safety systems are needed. The digital display will prompt users if attention is required, minimizing downtime and maintenance efforts.

Q: Where can the hydrogen generator be installed?

A: The skid-mounted construction allows for quick, stable installation indoors or in sheltered outdoor industrial environments. Dimensions and connections can be customized for your specific location and operational requirements.

Q: What input water quality is necessary for optimal operation?

A: For best performance and output purity, the generator requires deionized or demineralized water with conductivity below 1 S/cm, ensuring efficient electrolysis and minimizing equipment scaling or fouling.

Q: How does the safety system protect during operation?

A: Integrated safety measures monitor overpressure, water/lye levels, and power supply. In the event of anomalies, the system initiates automatic shutdowns to prevent hazards, safeguarding both the equipment and personnel.

Q: What are the primary advantages of this hydrogen generator for industrial use?

A: This unit combines energy-saving features, low noise, high efficiency, and fully automatic operation. With customizable installation, robust safety, and reliable, continuous hydrogen supply, it is ideal for diverse and demanding industrial applications.
