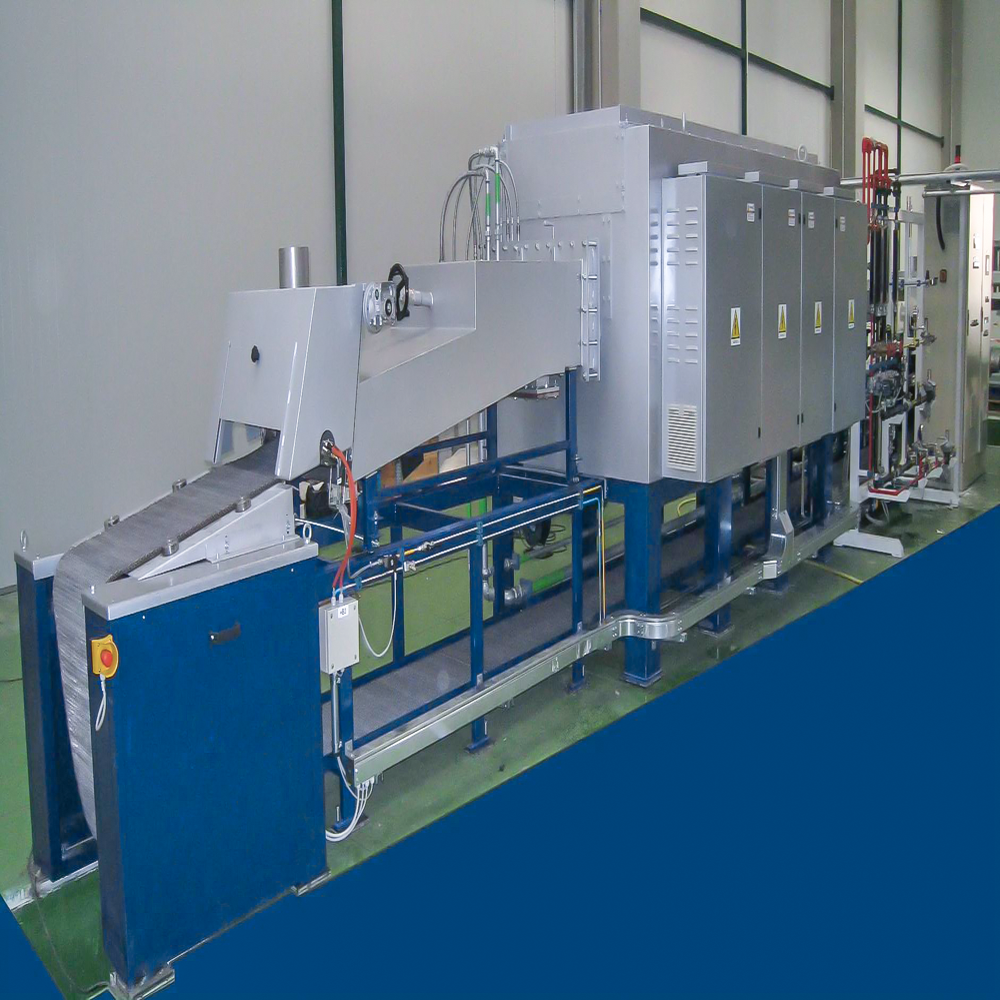

Cast Link Belt Furnace

Name: Cast Link Belt Furnace
Brand: UNITED ENTERPRISES
Price: 4000000.0 INR
Availability: InStock

Price 4000000.0 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

Cast Link Belt Furnace Specification

Glass Size
Suitable for various components

Rating
Industrial Grade

Feature
Automatic Temperature Control, Uniform Heating

Condition
New

Type
Cast Link Belt

Usage
Industrial heat treatment

Power
30-200 kW (Depending on model)

Voltage
380-440 V

Size
Customized as per requirement

Dimensions
To Be Customized

Weight
As per size and model

Application
Hardening, Tempering, Annealing, Sintering

Fuel Type
Electric / Gas

Capacity
Up to 1000 kg/hr

Insulation
High density ceramic fiber

Control System
PID Digital Temperature Controller

Finish
Corrosion-resistant paint / coating

Belt Material
Cast alloy steel links

Maintenance
Low maintenance design

Conveyor Speed
Variable (Adjustable by controller)

Cooling Section
Integrated (optional)

Atmosphere
Normal / Controlled (optional)

Automation
Fully automatic operation

Safety Features
Overheat protection, Emergency shut-off

Heating Zone
Multiple configurable zones

Max Temperature
Up to 1150C

Cast Link Belt Furnace Trade Information

Minimum Order Quantity
1 Unit

Delivery Time
7 Days

About Cast Link Belt Furnace

Cast Link Belt Furnace manufactured by United Enterprises is a continuous heat treatment furnace where heavy components are conveyed on a robust cast-alloy link belt, designed for high-temperature service and abrasive loads.

Brief Description:

Where a standard mesh belt is too fragile, the cast link belt design takes over. Each link is precision-cast from heat-resistant alloy, giving the belt the strength to carry heavy or sharp-edged components through continuous heating, hardening, quenching and tempering cycles.

Typical applications include hardening of fasteners, springs, bearing races, chain links, forgings and ball-and-roller components. The furnace integrates with our own atmosphere systems (Ammonia Cracker, Endo Gas, Nitrogen) for clean, oxide-free heat treatment.

Each cast link belt furnace is engineered for the customers component weight, temperature profile and required production rate.

Characteristics:

Heavy-duty cast alloy link belt for tough loads
Continuous heat treatment up to 1100C
Suitable for hardening, normalizing, sintering
Cracked ammonia / endo / nitrogen atmosphere
Available in electric and gas-fired versions
Multi-zone PLC temperature control
Integrated quench tank and tempering furnace (optional)
Fully automated SCADA system

About United Enterprises:

United Enterprises is a leading cast link belt furnace manufacturer in India with over 25+ years of experience in continuous heat treatment lines. We design, manufacture, supply, export and commission tailor-made cast link belt furnaces across Asia and Europe. Our turnkey solutions, in-house atmosphere generator manufacturing and CE / ISO compliance make us a trusted partner for fastener, spring, bearing and forging industries.

FAQs:

Q: When should I prefer a cast link belt over a mesh belt?

A: Choose cast link when components are heavy, abrasive or sharp-edged, or when belt life under thermal cycling is a concern.

Q: Can the belt be repaired in-house?

A: Yes. The modular cast links can be replaced individually, simplifying maintenance and reducing downtime.

Q: Do you offer integrated hardening + tempering lines?

A: Yes. We supply complete lines with washing, hardening furnace, quench, post-wash and tempering furnace under one project.

The Cast Link Belt Furnace is an in-demand solution for industrial heat treatment, featuring a customizable cast alloy steel link belt. This crackerjack furnace offers top-tier performance with multiple configurable heating zones, uniform heating, and fully automatic operation. Grab this industrial-grade system equipped with a PID digital temperature controller and variable conveyor speed for flexible processing. Its high-density ceramic fiber insulation and robust safety features ensure reliability, while the corrosion-resistant finish and low-maintenance design add lasting value. Suitable for hardening, tempering, annealing, and sintering up to 1150C, the furnace supports both electric and gas fuel options, with capacity up to 1000 kg/hr. Designed and built to your specifications, it's a best-in-class choice for manufacturers, exporters, and suppliers.

Specific and General Uses - Superior Performance Advantage

The Cast Link Belt Furnace is specially designed for a broad spectrum of industrial heat treatment operations. Widely recognized for its competitive advantages such as uniform heating, variable speed control, and fully automatic functionality, this furnace is ideal for hardening, tempering, annealing, and sintering applications. Its customizable size and flexible heating zones ensure optimal results for diverse components, making it a reliable asset for both specific and general heat-treating requirements in demanding environments.

Certifications, Delivery, and Domestic Market Reach

Every Cast Link Belt Furnace is manufactured adhering to stringent certifications, ensuring industry compliance and consistent quality. Our streamlined transportation process ensures that the furnace is carefully handed over to clients within the agreed delivery time after a transparent quotation. We serve the main domestic market with prompt and professional support, guaranteeing reliable after-sales service and swift responses to all delivery-related queries, empowering customers to operate with full confidence.

FAQ's of Cast Link Belt Furnace:

Q: How is the Cast Link Belt Furnace customized to meet specific customer requirements?

A: The furnace is built to order, with belt sizes, heating zones, dimensions, and features tailored to your unique process needs, ensuring optimal compatibility with your industrial applications.

Q: What are the main usage benefits of the fully automatic operation?

A: Fully automatic operation streamlines production, minimizes manual intervention, improves consistency, and enhances process safety through advanced controls and automation, boosting efficiency and reliability.

Q: When is overheat protection and emergency shut-off activated?

A: These safety features activate automatically if the furnace temperature exceeds preset thresholds, or if an emergency is detected, ensuring operator and equipment protection at all times.

Q: Where can the Cast Link Belt Furnace be installed and operated?

A: The furnace is suitable for installation in industrial settings such as manufacturing plants, heat treatment facilities, and metalworking industries-with customizable sizes to fit various production spaces.

Q: What is the process for installation and start-up after purchase?

A: After handing over the unit post-transportation, installation is completed by qualified technicians, followed by system calibration, testing, and operator training to ensure safe and efficient operation.

Q: How does the Cast Link Belt Furnace ensure uniform heating and product quality?

A: Multiple configurable heating zones, consistent conveyor speed, and PID digital temperature control work together to provide even heat distribution, resulting in reliably treated components across every batch.
