Mesh Belt Conveyor Furnace

Name: Mesh Belt Conveyor Furnace
Brand: UNITED ENTERPRISES
Price: 2500000.0 INR
Availability: InStock

Price 2500000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Mesh Belt Conveyor Furnace Specification

Feature
Continuous operation, Uniform heating, Energy efficient

Rating
Industrial Grade

Glass Size
Up to 1200 mm width

Condition
New

Type
Conveyor Furnace

Usage
Heat Treatment, Sintering, Annealing

Power
Electric / Gas (as specified)

Voltage
220-480 V (as per model)

Size
Customizable as per requirement

Dimensions
Based on required capacity

Weight
Varies as per model/specification

Application
Hardening, Tempering, Brazing, Annealing of metals

Fuel Type
Electric or Gas

Capacity
Up to 2000 kg/hr (model-dependent)

Heating Zone
Multiple zones with independent control

Chamber Material
Heavy duty mild steel with refractory lining

Safety Features
Over-temperature protection, emergency stop, and alarm system

Atmosphere
Nitrogen / Hydrogen / Air

Control System
Digital PID controller with PLC option

Belt Material
Stainless Steel / Alloy Steel

Color
Industrial grey with enamel coating

Cooling System
Integrated cooling chamber (optional)

Conveyor Speed
Adjustable (0.1 to 2 m/min)

Maintenance
Low maintenance design

Insulation Material
Ceramic fiber / Fire bricks

Temperature Range
Up to 1200C

Loading Method
Manual or automated loading possible

Mesh Belt Conveyor Furnace Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
7 Days

About Mesh Belt Conveyor Furnace

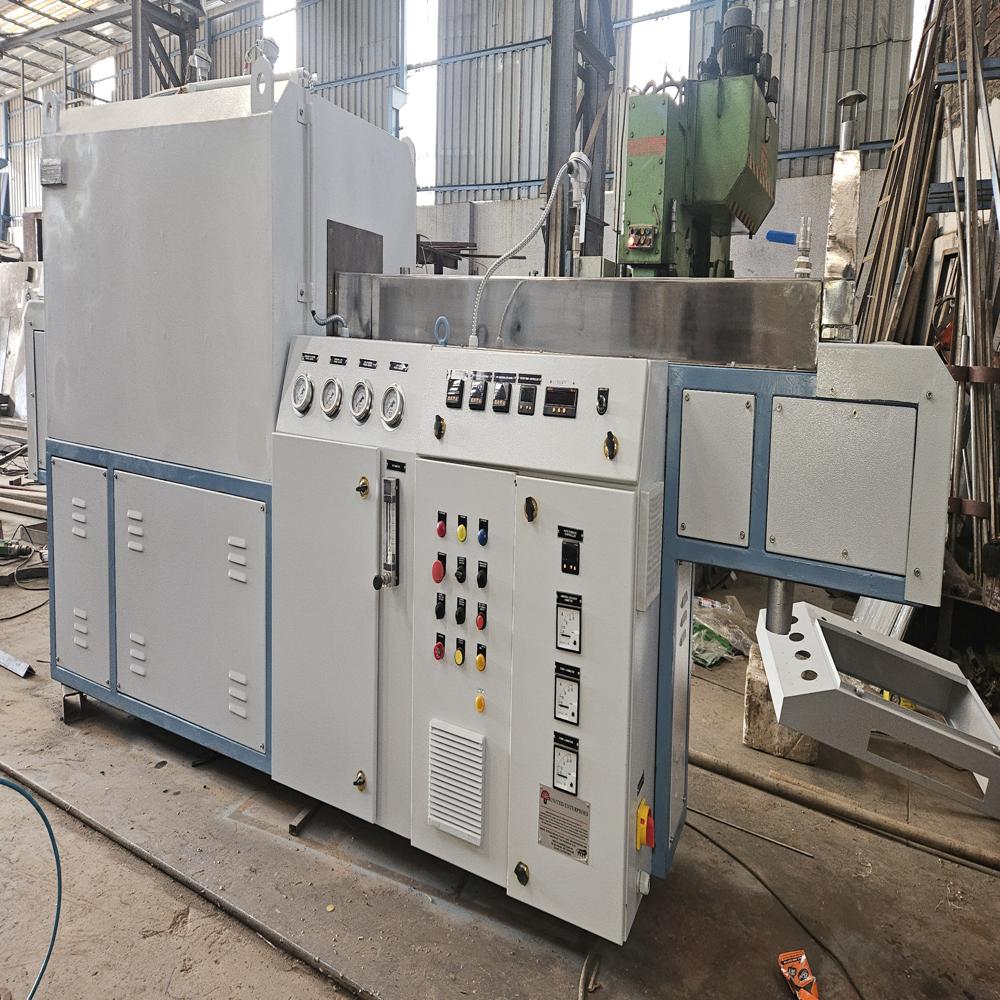

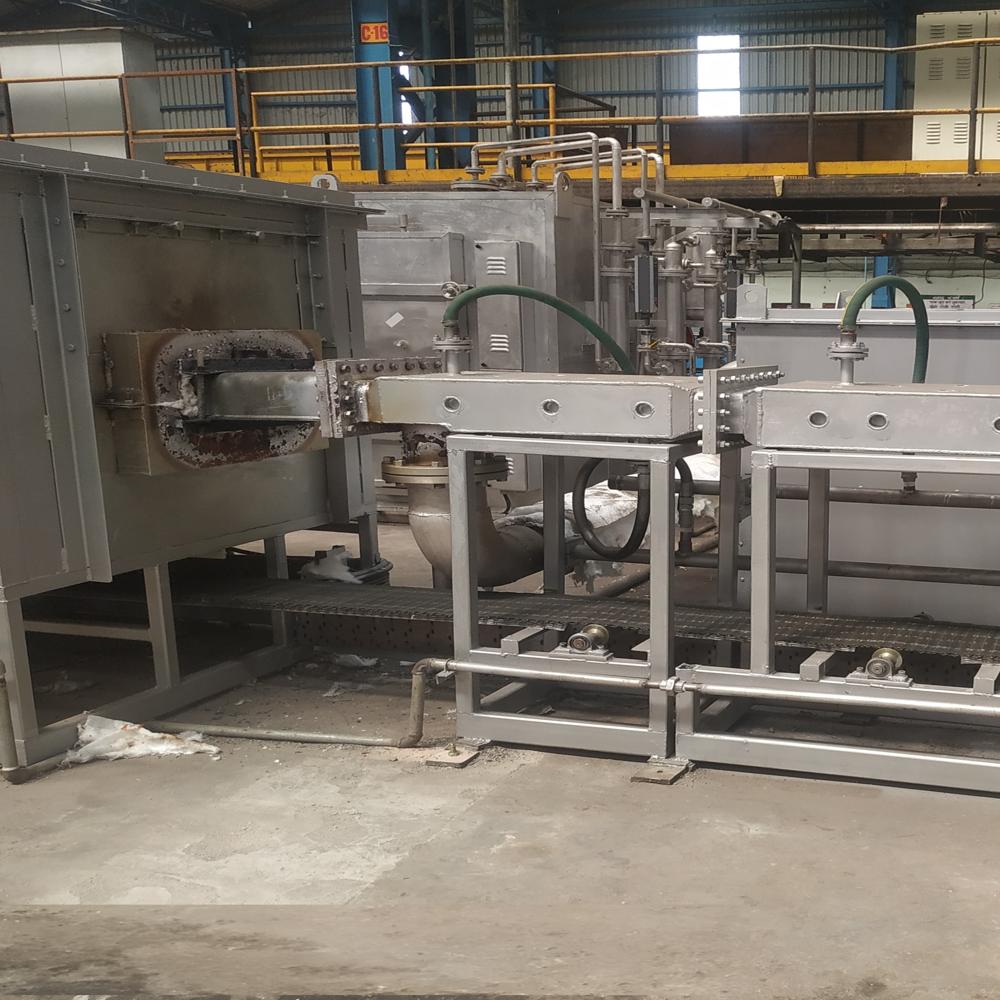

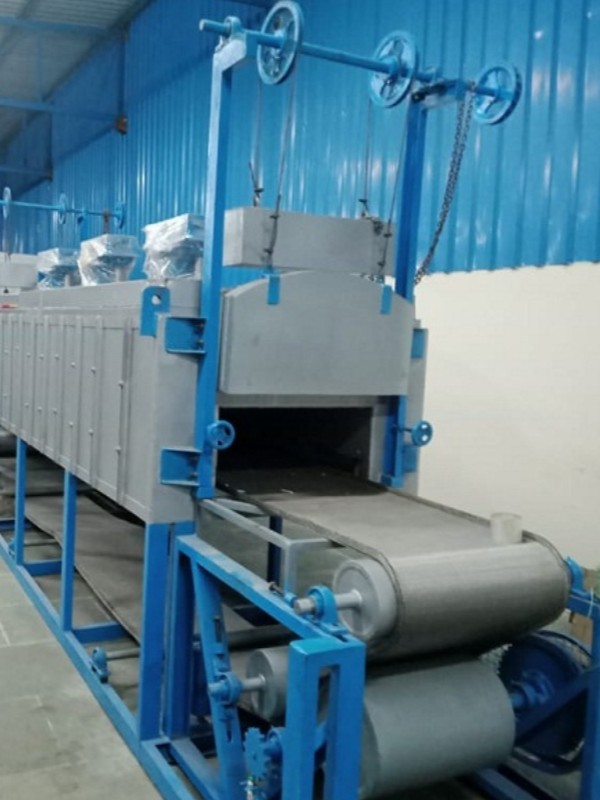

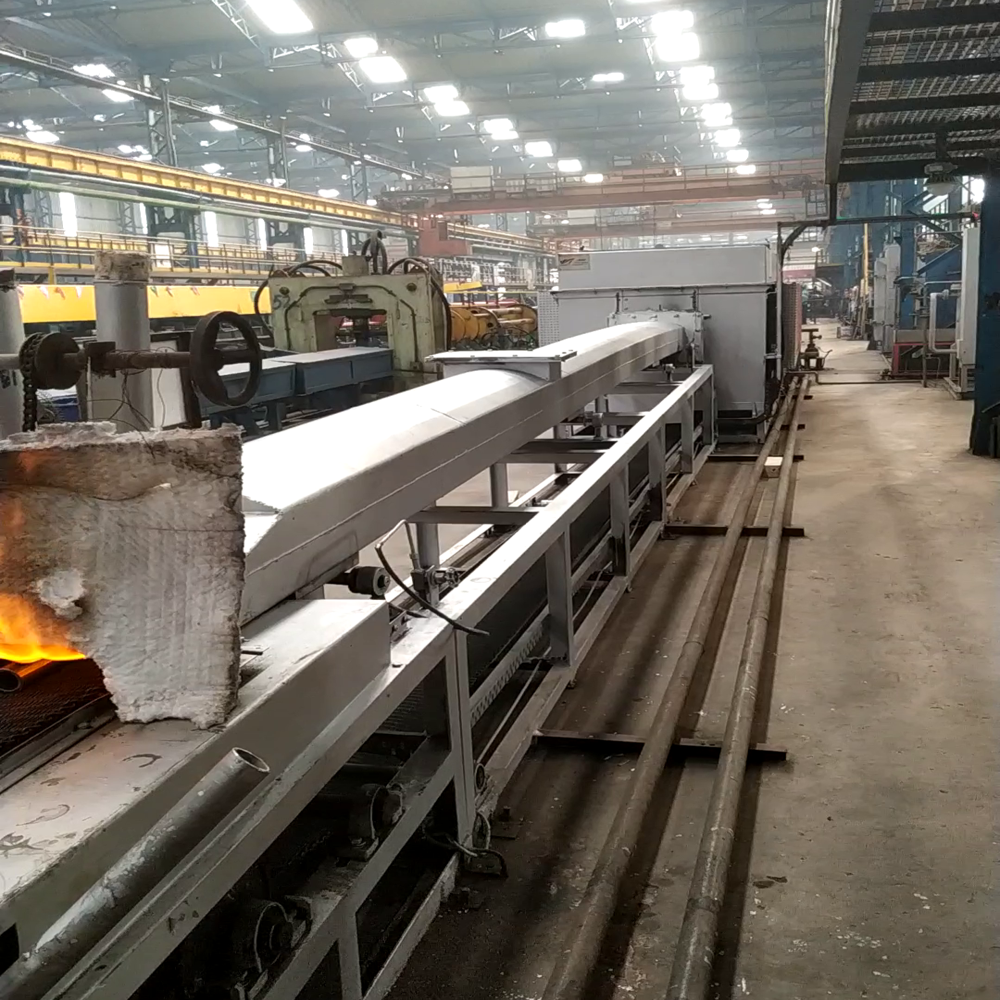

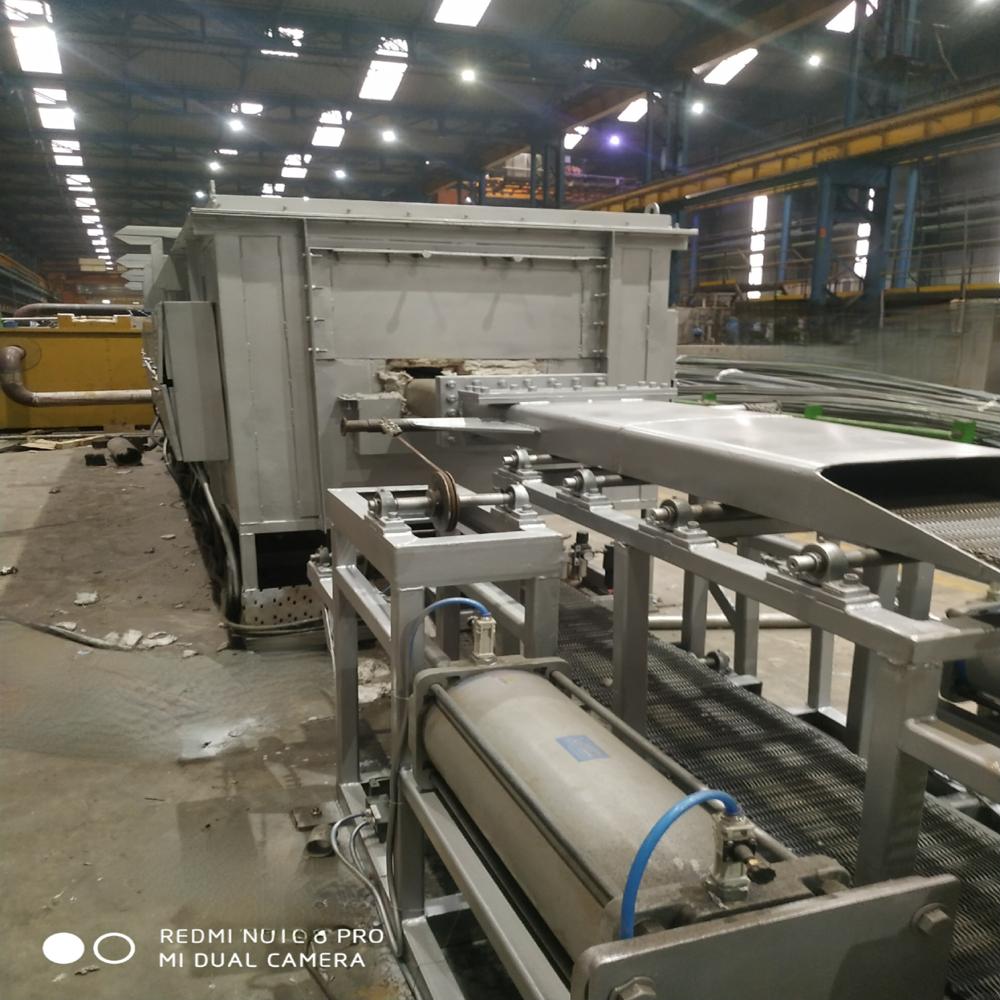

Mesh Belt Conveyor Furnace manufactured by United Enterprises is a continuous heat treatment furnace where small components are carried through the heating chamber on a robust Inconel-grade mesh conveyor.

Brief Description:

This furnace is used for continuous hardening, annealing, tempering, sintering and brazing of bulk components. The mesh belt conveys the parts steadily through preheat, heating, soaking and cooling/quench zones making it ideal for high-volume production lines.

We design each mesh belt conveyor furnace as per the customers production rate, component size and atmosphere requirements. Atmosphere generation is supported by our in-house Ammonia Cracker, Endo Gas Generator and Nitrogen Generator.

Capacity ranges from 80 kg/hr to 3000 kg/hr, with both electric and recuperative gas-fired heating options.

Characteristics:

Continuous mesh belt conveyance for high throughput
Inconel-grade alloy mesh belt for durability
Suitable for hardening, sintering, annealing, brazing
Tight temperature control within 1C
Cracked ammonia / endo / nitrogen atmosphere options
Available in electric and gas-fired versions
Built-in water quench and belt tension control
Fully automated SCADA system with recipe storage

About United Enterprises:

United Enterprises is a trusted furnace manufacturer in India with over 25+ years of experience in continuous mesh belt furnaces and turnkey heat treatment lines. Since 1998 we have designed, manufactured, supplied, exported and commissioned mesh belt conveyor furnaces across Asia and Europe. Our CE and ISO compliant manufacturing supports customers in automotive, fastener, bearing and sintered-component sectors.

FAQs:

Q: How wide a mesh belt can you offer?

A: Belt widths from a few hundred millimeters up to over half a meter are routinely supplied. Width is selected based on component size and throughput.

Q: Is atmosphere mandatory?

A: Not always. Some processes like simple stress relieving work without atmosphere; hardening, brazing and sintering generally require a controlled atmosphere for surface quality.

Q: Do you handle line integration with washing and tempering?

A: Yes. We can supply complete lines with pre-wash, hardening furnace, oil/water quench, post-wash and tempering furnace as a single integrated system.

Discover the unassailable efficiency and phenomenal quality of our Mesh Belt Conveyor Furnace-engineered for gilt-edged industrial performance. With a robust stainless steel/alloy steel belt, temperatures soaring up to 1200C, and a digital PID control system, this furnace is designed for precision and dependability. Multiple independent heating zones, optional integrated cooling, and customizable sizing make it perfect for various metallurgical applications. Try Now and experience low-maintenance safety with over-temperature, emergency stop, and alarms. Add to Cart-Ending Soon for premium, industry-rated excellence!

Versatile Applications and Enhanced Features of Mesh Belt Conveyor Furnace

Our Mesh Belt Conveyor Furnace is crucial for commercial heat treatment, sintering, and annealing. With optional automated loading, integrated cooling, and adjustable conveyor speeds, it adapts to diverse industrial needs. High-grade ceramic fiber and fire brick insulation, plus independent zone control assure uniform heating and energy efficiency. Applications range from hardening and tempering to brazing, serving metal, glass, and alloy processing on a wide range of surfaces.

Global Export, Secure Packaging, and Leading Domestic Markets

We proudly supply this premium furnace across main export markets such as North America, Europe, and Asia. Each unit is securely crated and packaged for safe goods transport. Domestically, our product is favored in industrial hubs through a quotation-based procurement system. Our commitment ensures each order reaches clients in pristine condition, maintaining the furnace's integrity and reliable operation.

FAQ's of Mesh Belt Conveyor Furnace:

Q: How is the loading and unloading process managed with the Mesh Belt Conveyor Furnace?

A: Our furnace offers flexible loading options-choose manual or automated systems to match your workflow, optimizing throughput for various industrial needs.

Q: What materials can be processed in the Mesh Belt Conveyor Furnace?

A: It is ideal for the heat treatment, brazing, tempering, and annealing of metals and alloys, accommodating workpieces up to 1200 mm in width.

Q: Where can this furnace be used most effectively?

A: This furnace performs exceptionally in industries requiring uniform, continuous heat treatment-such as automotive, aerospace, and heavy manufacturing applications.

Q: When should I consider the optional cooling chamber?

A: The integrated cooling chamber is recommended when rapid product cooldown is crucial, improving cycle times and operational efficiency in demanding processes.

Q: What are the key safety features of this industrial furnace?

A: Safety is prioritized with over-temperature protection, emergency stop functions, and an alarm system to ensure unassailable workplace reliability.

Q: How does the adjustable conveyor speed benefit my production?

A: Adjustable speed (0.1 to 2 m/min) enables precise control of processing times, ensuring optimal heat treatment for a wide variety of materials and thicknesses.
