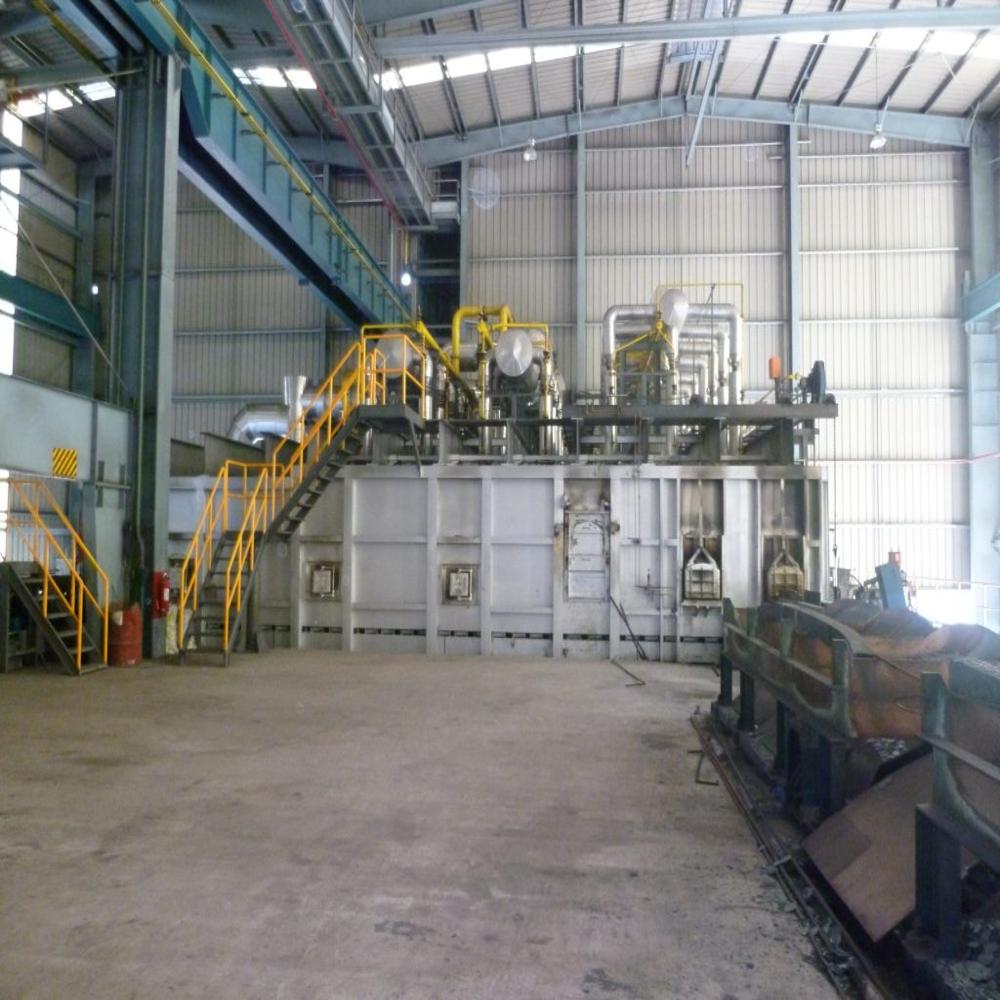

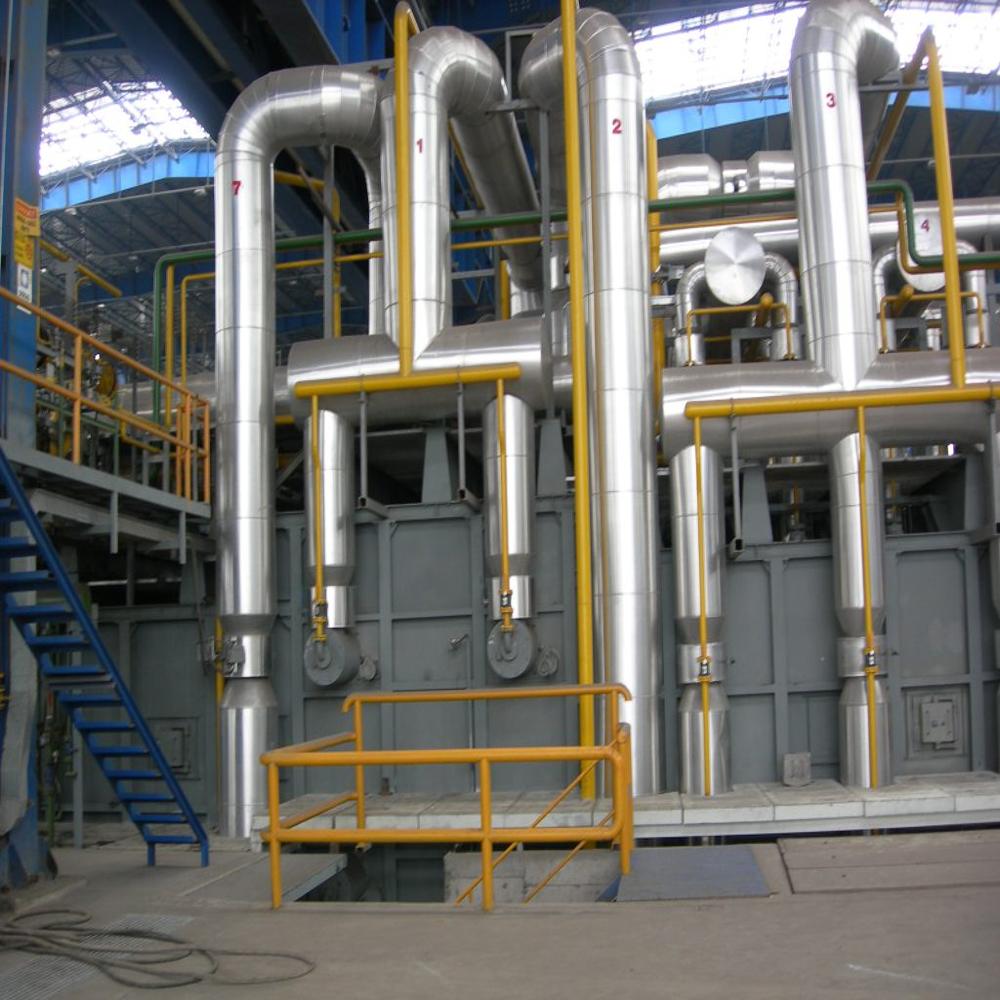

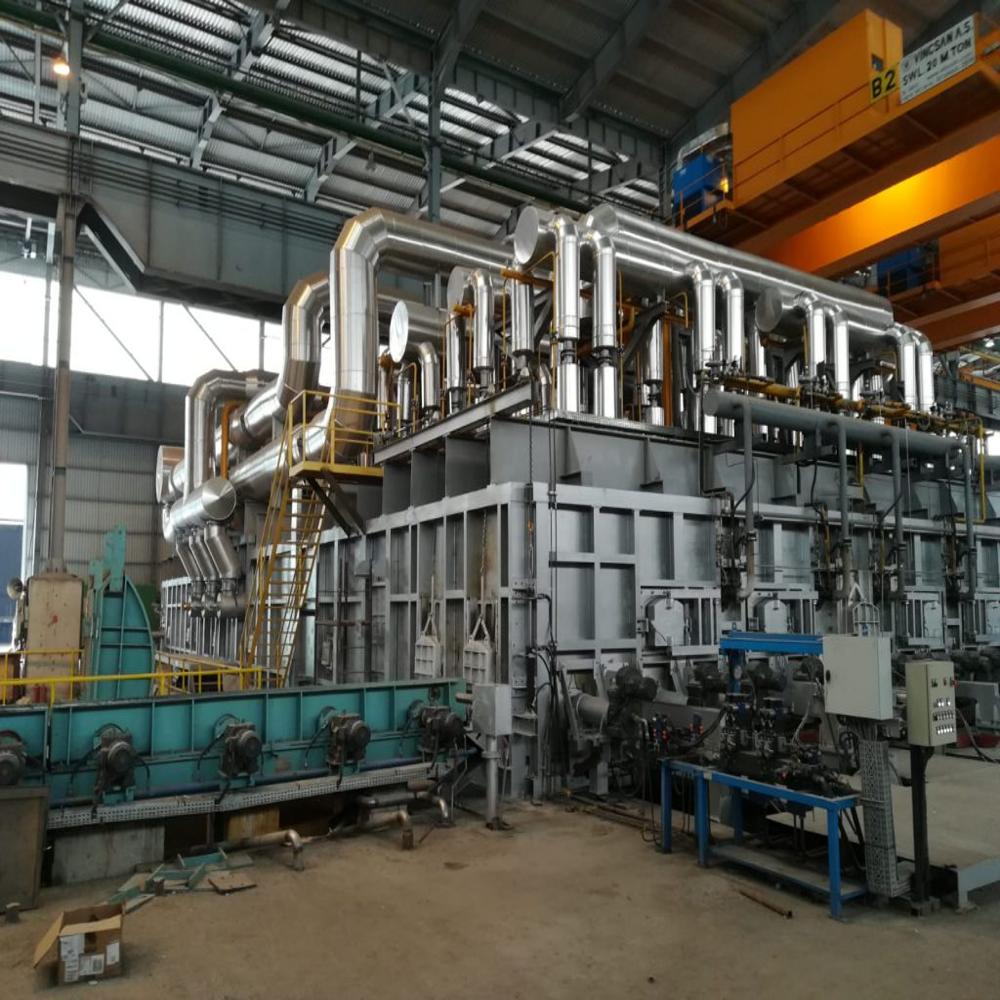

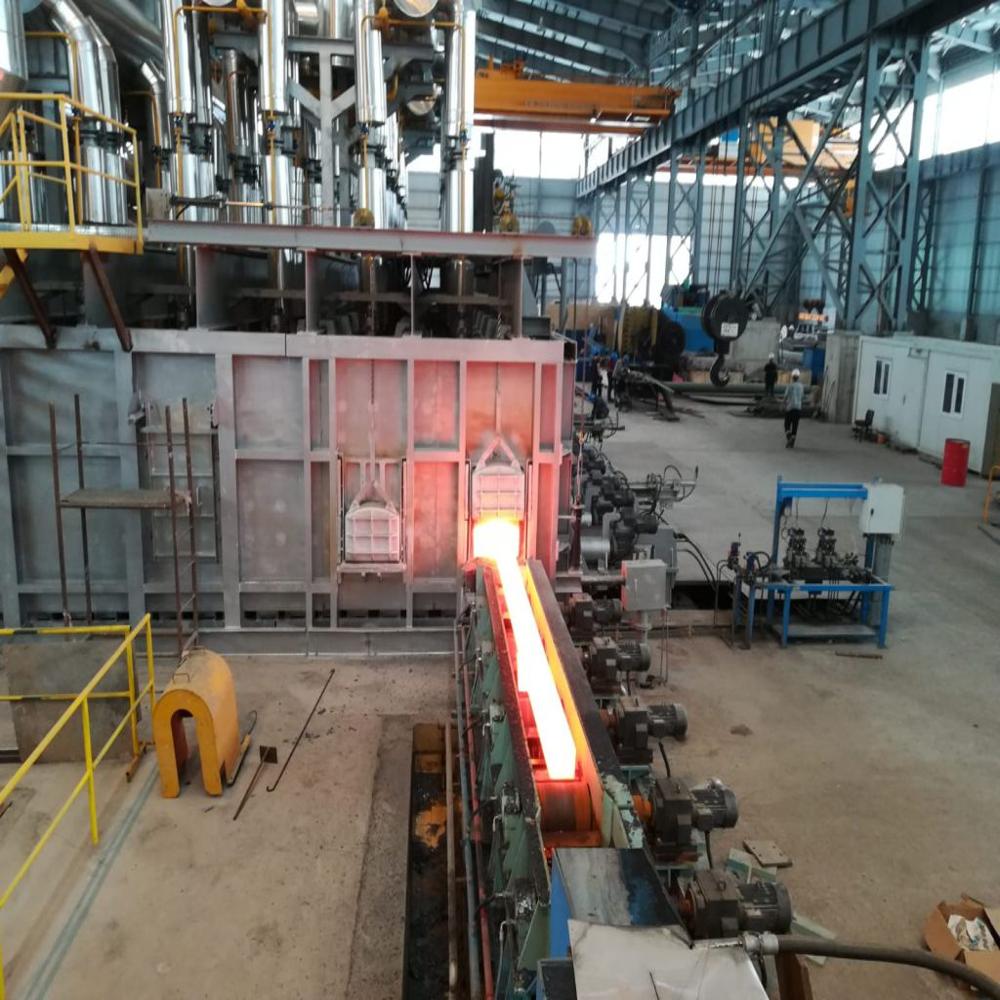

Bloom and Billet Reheating Furnace

Name: Bloom and Billet Reheating Furnace
Brand: UNITED ENTERPRISES
Price: 7000000.0 INR
Availability: InStock

Price 7000000.0 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

Bloom and Billet Reheating Furnace Specification

Rating
High performance

Feature
Uniform heat distribution, robust construction, energy efficient

Condition
New

Type
Reheating Furnace

Usage
Industrial reheating of bloom and billet

Power
Depends on capacity and design

Voltage
380-440 V

Size
Custom or as per requirement

Dimensions
Customized

Weight
Variable as per specifications

Application
Steel Plants, Rolling Mills

Fuel Type
Gas fired / Oil fired / Dual fuel

Capacity
Up to 100 Tons/hour

Material of Construction
High-grade refractory lining, steel structure

Insulation Thickness
220mm or as per requirement

No. of Doors
Multiple for easy charging & discharging

Control System
Fully automatic PLC/SCADA based

Chimney/Exhaust System
Designed to meet emission standards

Burner Type
High efficiency recuperative/special burners

Recycle System
Waste heat recovery options available

Surface Finish
Anti-corrosive paint/finish

Heating Zone
Multi-zone design for better control

Ignition System
Automatic

Max Operating Temperature
1250C - 1350C

About Bloom and Billet Reheating Furnace

Bloom and Billet Reheating Furnace manufactured by United Enterprises is a heavy-duty continuous reheating furnace designed to handle both blooms and billets in steel rolling mills, with flexible loading patterns and high thermal efficiency.

Brief Description:

Steel plants that roll both blooms and billets require a furnace flexible enough to handle different stock sizes without losing efficiency. Our combined bloom-and-billet reheating furnace is engineered with adjustable skid arrangements, multi-zone burners and recuperative air pre-heating for excellent fuel economy across the load mix.

Walking beam, walking hearth or pusher configurations are offered as per the mill layout. PLC and SCADA control deliver consistent discharge temperature, while tight refractory insulation extends campaign life.

Each unit is tailored to the customers production plan, stock dimensions and target throughput.

Characteristics:

Continuous reheating of blooms and billets
Walking beam / walking hearth / pusher options
Maximum temperature up to 1200C
Recuperative burners with air pre-heating
Multi-zone PLC combustion control
Flexible skid layout for different stock sizes
High-grade refractory for long campaign life
SCADA-based production tracking

About United Enterprises:

United Enterprises is among the top reheating furnace manufacturers in India with over 25+ years of experience in rolling mill projects. We design, manufacture, supply, export and commission Bloom and Billet Reheating Furnaces tailored to mill requirements across Asia and Europe. Turnkey delivery, in-house design and CE / ISO compliant manufacturing make us a trusted partner for the steel industry.

FAQs:

Q: Can the same furnace handle blooms and billets simultaneously?

A: Yes with the appropriate skid spacing and combustion design, the furnace can process mixed loads of blooms and billets.

Q: How is uniformity ensured for different sizes?

A: Each heating zone is independently controlled, allowing temperature setpoints to be adjusted for the load mix in the furnace.

Q: Do you provide AMC?

A: Yes. AMC contracts covering preventive maintenance, refractory inspection and spares are available for all supplied furnaces.

The Bloom and Billet Reheating Furnace offers a first-string solution for steel plants and rolling mills seeking enviable performance and opulent longevity. Redeem maximum efficiency with high-efficiency recuperative burners and a fully automatic PLC/SCADA control system. Its robust, high-grade refractory lining and anti-corrosive finish render it both scarce in maintenance needs and exceedingly durable. With multi-zone temperature control (1250C-1350C), multiple doors for streamlined workflow, and waste heat recovery, this popular industrial furnace stands out for uniform heating, energy efficiency, and tailored customization.

Leading Applications and Superior Features

Designed for the industrial reheating of blooms and billets, this furnace is invaluable in steel plants and rolling mills. Application media include oil, gas, or dual fuel systems, supporting a wide capacity range up to 100 tons/hour. Key extra features include multi-zone heating for enhanced control, a recycle system for waste heat recovery, and robust insulation up to 220mm. Multiple charging/discharging doors and customizable options make this furnace a stand-out solution for demanding operations.

Flexible Payment & Swift Supply Logistics

We offer secure payment terms for peace of mind with every order. Sample policies are available to ensure product satisfaction prior to large-scale investment. With a reliable logistics framework, express shipping guarantees prompt dispatch, meeting tight project deadlines. Our supply ability is robust, ensuring consistent availability for bulk requirements and timely delivery. Count on streamlined processing from your initial inquiry to final delivery for a smooth acquisition experience.

FAQ's of Bloom and Billet Reheating Furnace:

Q: How does the Bloom and Billet Reheating Furnace ensure uniform heat distribution?

A: The furnace utilizes a multi-zone design and high-grade refractory lining. This, coupled with advanced PLC/SCADA controls, allows for precise temperature management throughout the chambers, ensuring consistent and even heating of blooms and billets.

Q: What are the main benefits of the waste heat recovery system?

A: The waste heat recovery system recycles exhaust heat, improving energy efficiency and reducing fuel consumption. This not only lowers operational costs but also supports compliance with emission standards, making it an environmentally friendly and cost-effective solution.

Q: Where can this reheating furnace be installed?

A: This furnace is ideal for deployment in steel plants and rolling mills, where industrial reheating of blooms and billets is required. Its size and capacity can be customized for specific operational layouts and production scales.

Q: What options are available for fuel type and power?

A: You can select between gas-fired, oil-fired, or dual-fuel operation. The power requirement depends on the size, design, and capacity of the customized furnace, ensuring optimal compatibility with your facility's resources.

Q: How is the furnace delivered and what is the lead time?

A: The unit is dispatched using efficient logistics and express shipping when required. Lead times depend on customization but are kept to a minimum due to our robust manufacturing and supply capacities.
