Car Bottom Furnace

Name: Car Bottom Furnace
Brand: UNITED ENTERPRISES
Price: 2500000.0 INR
Availability: InStock

Price 2500000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Car Bottom Furnace Specification

Rating
Industrial Grade

Feature
Movable hearth (car bottom), heavy-load design, high-temperature uniformity, user-friendly controls

Condition
New

Type
Car Bottom Furnace

Usage
Industrial Heat Treatment

Power
Electric/Manual (varies by model)

Voltage
380V-480V

Size
Customizable as per requirement

Dimensions
Varies; up to several meters in length and width

Weight
Varies as per model and capacity

Application
Forging, Hardening, Tempering, Annealing, Reheating

Fuel Type
Electric / Gas / Oil Fired

Capacity
500 kg to 20,000 kg (customized)

Door Type
Vertically Lifted/Manual/Automatic

Insulation Material
High-Density Ceramic Fiber or Refractory Brick

Controller Type
PLC Based Digital Control Panel

Chamber Construction
Mild Steel/Fully Insulated

Work Platform Height
Customizable

Maximum Operating Temperature
1200C to 1400C (varies by model)

Heating Element Material
Kanthal, Silicon Carbide, or Molybdenum Disilicide

Car Movement
Motorized or Manual as per specification

Safety Features
Over-temperature cutoff, emergency stop, flame proof panel

Temperature Uniformity
5C Across Work Chamber

Ambient Working Temperature
0C to 45C

Car Bottom Furnace Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
7 Days

About Car Bottom Furnace

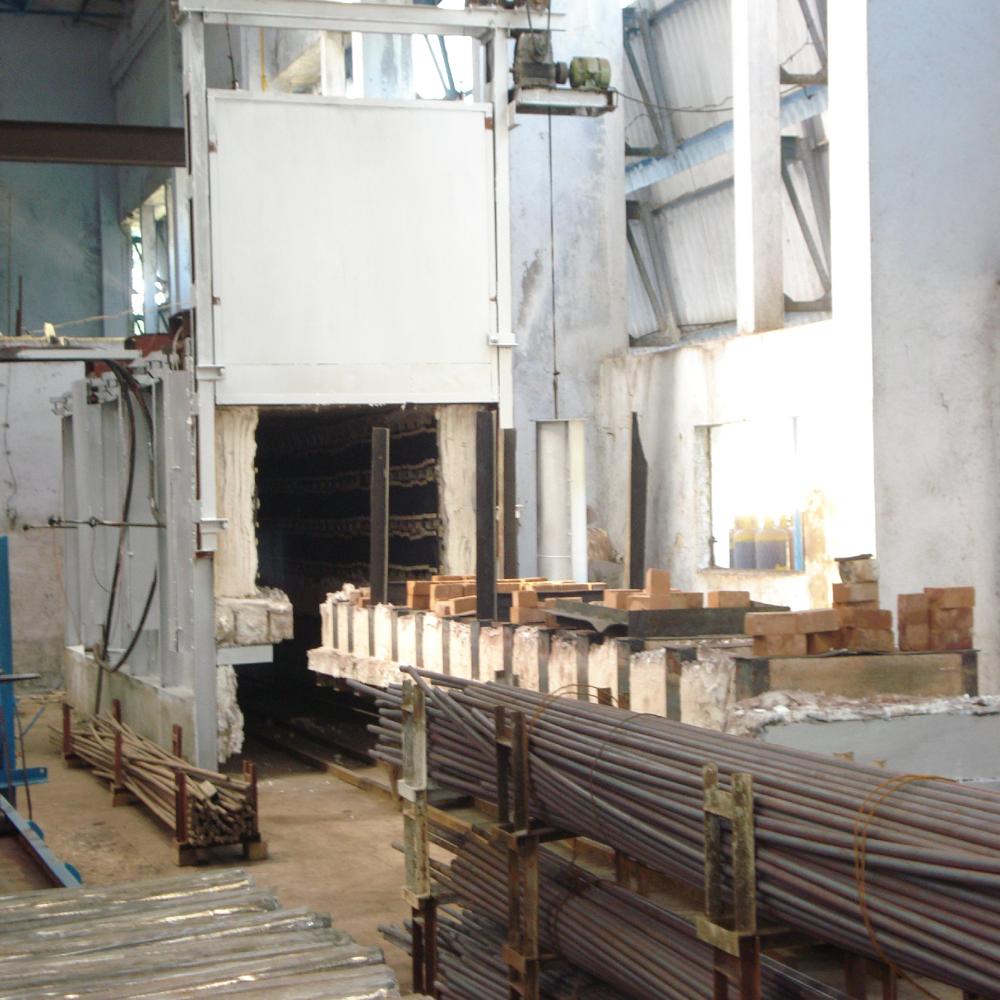

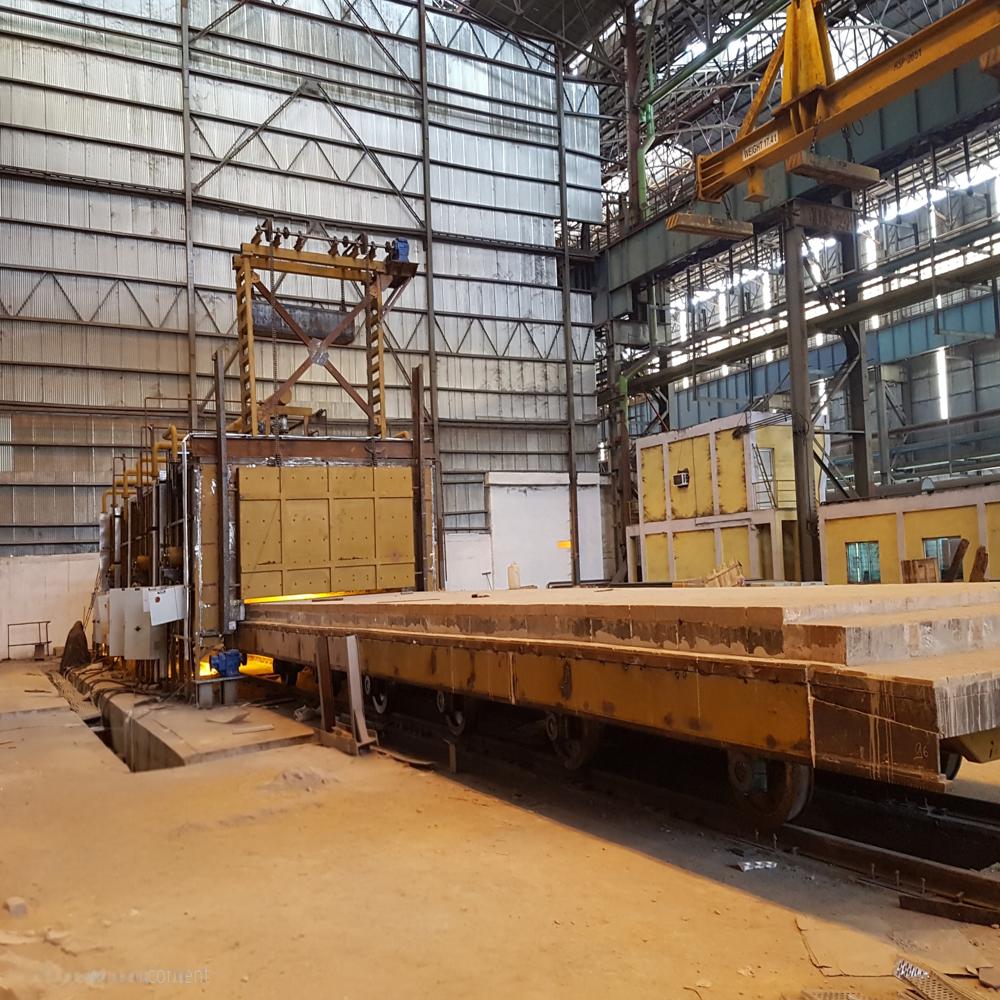

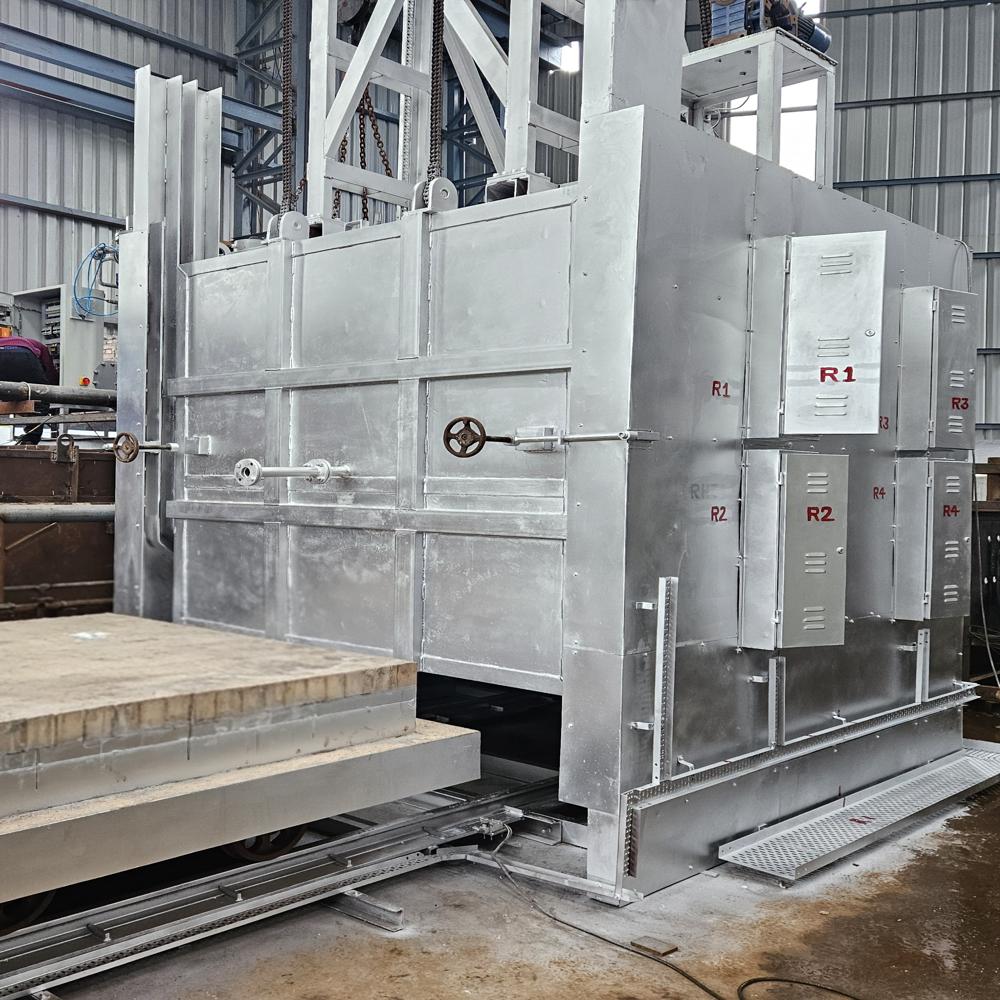

Car Bottom Furnace manufactured by United Enterprises is a heavy-duty batch furnace with a movable, rail-mounted bogie (car) that serves as the hearth, ideal for heat treatment of very heavy components.

Brief Description:

Car bottom furnaces are essentially the same family as bogie hearth furnaces, with strong emphasis on heavy-load handling. They are widely used in heavy forging, casting, defence and shipbuilding industries for tempering, annealing, normalizing, stress relieving and similar processes.

We design our car bottom furnaces with heavy-duty bogie structures, robust rail systems, electro-hydraulic lift doors and high-quality refractory linings. Multi-zone heating, air recirculation fans (for low-temperature use) and PLC / SCADA control deliver consistent results.

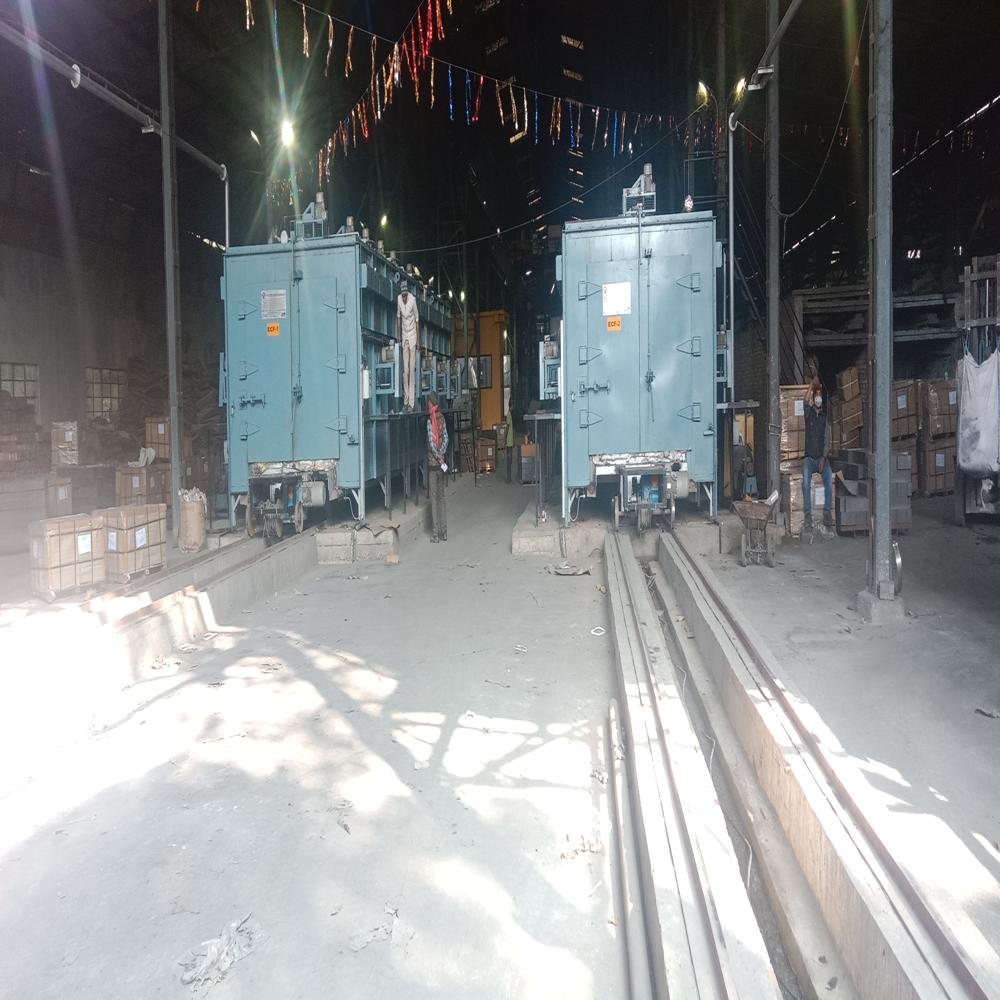

Multi-car versions allow one car to be unloaded/loaded while the other is heat-treated significantly improving throughput.

Characteristics:

Maximum temperature up to 1200C
Heavy-duty rail-mounted hearth-car (bogie)
Electro-hydraulic lift door
Available in electric and recuperative gas-fired versions
Air-recirculation fans for low-temperature uniformity
Multi-car option for higher throughput
Low-density high-quality refractory insulation
PLC and SCADA-based control

About United Enterprises:

United Enterprises is a recognised Car Bottom Furnace manufacturer in India with over 25+ years of experience in heavy-duty batch heat treatment systems. We design, manufacture, supply, export and commission tailor-made car bottom furnaces across Asia and Europe. Our turnkey approach, in-house design and fabrication, and CE / ISO compliance make us a preferred partner for forging, defence, shipbuilding and heavy engineering industries.

FAQs:

Q: Car bottom vs bogie hearth same thing?

A: Functionally yes; car bottom emphasises the rail-mounted car, while bogie hearth emphasises the bogie carrying the hearth. We use both terms based on customer preference.

Q: How heavy a load can it handle?

A: From a few tonnes to tens of tonnes we engineer the rail, bogie and door drive for the rated load.

Q: Do you offer atmosphere control?

A: No. It is suggested to go with other solutions, which our engineers would be glad to help you with once you connect with us.

Experience sizzling performance and impeccable reliability with our Car Bottom Furnace, designed for industrial-grade applications at the lowest price. Tailored from cost-effective yet opulent materials, the furnace operates at a maximum 1200C to 1400C (model dependent). Heating elements include Kanthal, Silicon Carbide, or Molybdenum Disilicide, ensuring praiseworthy uniformity of 5C throughout the work chamber. Featuring PLC-based digital controls, heavy-duty insulation, and multiple safety systems, every unit offers a customizable, user-friendly solution for hardening, annealing, forging, and more. Available with motorized/manual car movement and robust construction, it is the optimal choice for dependable, high-capacity heat treatment.

Versatile Application Areas and Industry Uses

Our Car Bottom Furnace excels in a range of application areas including forging, annealing, tempering, hardening, and reheating. Widely used in steel plants, automotive component manufacturing, and heavy engineering sectors, this furnace's robust design also makes it suitable for ceramic, aerospace, and foundry industries. The adaptable chamber and customizable sizing allow seamless installation in diverse industrial places such as workshops, manufacturing units, and fabrication plants, ensuring maximum process flexibility and productivity.

Sample Options, Certifications, and Delivery Commitments

We proudly offer Car Bottom Furnace samples, supporting both domestic and export markets to evaluate our quality before large orders. Our products adhere to leading international certifications, guaranteed to meet stringent safety and performance standards. Customers benefit from an attractive asking price and promotional offers. Delivery times are prompt and coordinated, ensuring swift fulfillment-ideal for overseas buyers and urgent projects. Reliable export packing and handling underscore our commitment as a premier exporter, manufacturer, and supplier.

FAQ's of Car Bottom Furnace:

Q: How does the Car Bottom Furnace ensure consistent temperature uniformity across the chamber?

A: The Car Bottom Furnace employs advanced heating elements such as Kanthal, Silicon Carbide, or Molybdenum Disilicide, along with high-quality insulation materials, to maintain a temperature uniformity of 5C across the work chamber. The PLC-based digital control panel further enhances precise and consistent heating.

Q: What are the primary industrial applications for this furnace?

A: This furnace is primarily used for forging, hardening, tempering, annealing, and reheating processes across industries like automotive, foundry, steel production, aerospace, and heavy machinery manufacturing.

Q: When can customers expect delivery after placing an order?

A: Delivery timelines are tailored to order specifications and destination, but we strive for prompt and efficient fulfillment. We also provide reliable export packing to ensure safe transit to any location.

Q: Where can the Car Bottom Furnace be installed?

A: The furnace is suitable for installation in industrial plants, manufacturing units, metal fabrication workshops, and research laboratories, thanks to its customizable size and adaptable features.

Q: What safety features are included in the Car Bottom Furnace?

A: Key safety features include over-temperature cutoff systems, emergency stop mechanisms, and a flame-proof control panel, protecting operators and maintaining operational security.

Q: How does the car movement operate within the furnace?

A: Depending on the specification, the car movement can be motorized for automated positioning or manual for flexible, cost-effective operation, allowing easy loading and unloading of heavy workpieces.
