Elevator Furnace

Name: Elevator Furnace
Brand: UNITED ENTERPRISES
Price: 2500000.0 INR
Availability: InStock

Price 2500000.0 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

Elevator Furnace Specification

Rating
High Performance

Glass Size
Up to 1000 mm (customizable)

Feature
Automatic Lifting Platform, Precise Temperature Control, Energy Efficient, Overheat Protection

Condition
New

Type
Electric Elevator Furnace

Usage
Industrial Heat Treatment

Power
12 kW - 50 kW

Voltage
220 V / 380 V / 415 V

Size
Customizable as per requirement

Dimensions
As per client specification

Weight
Approx. 350 kg (varies by model)

Application
Annealing, Sintering, Hardening, Laboratory, and Glass Processing

Fuel Type
Electric

Capacity
50 kg - 500 kg (custom options available)

Door Type
Vertical Lifting / Elevator-Type Door Mechanism

Operating Environment
Indoor, Dust-Free Condition

Heating Element
Kanthal Wire / Silicon Carbide Rods

Panel Type
User-Friendly Control Panel

Max. Loading Height
Up to 800 mm

Controller
Digital PID Temperature Controller

Safety Features
Emergency Stop, Over Current Protection, Thermal Cutoff

Furnace Chamber Material
High Grade Stainless Steel / Ceramic Fiber lining

Noise Level
< 65 dB

Insulation Thickness
100 mm - 150 mm

Cooling System
Optional Forced Air Cooling

Temperature Uniformity
5C

Max Temperature
Up to 1200C

Elevator Furnace Trade Information

Minimum Order Quantity
1 Unit

Delivery Time
7 Days

About Elevator Furnace

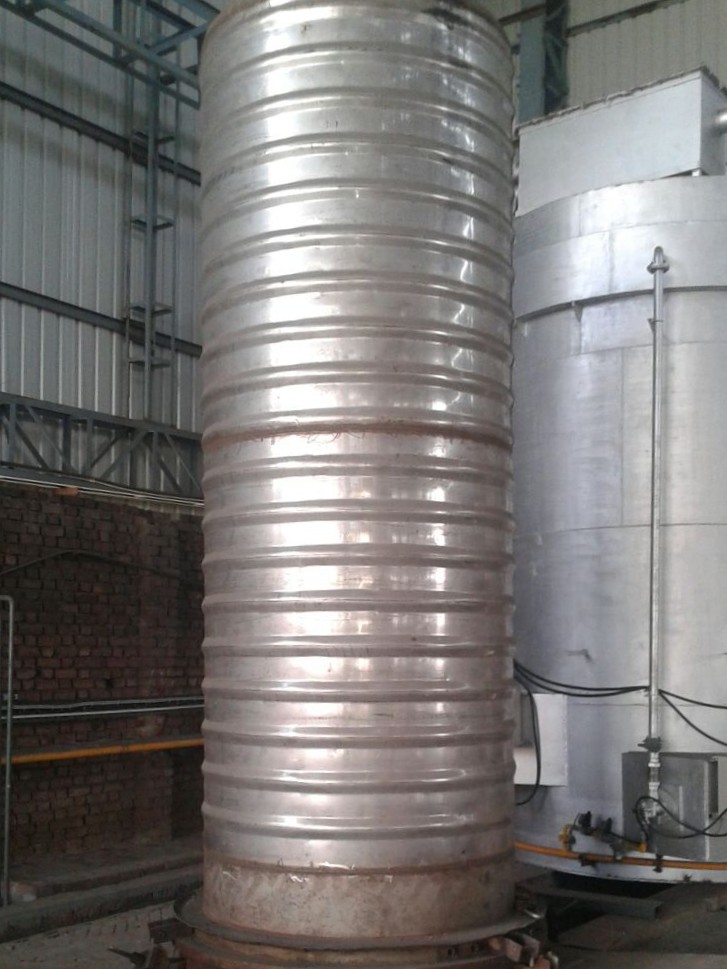

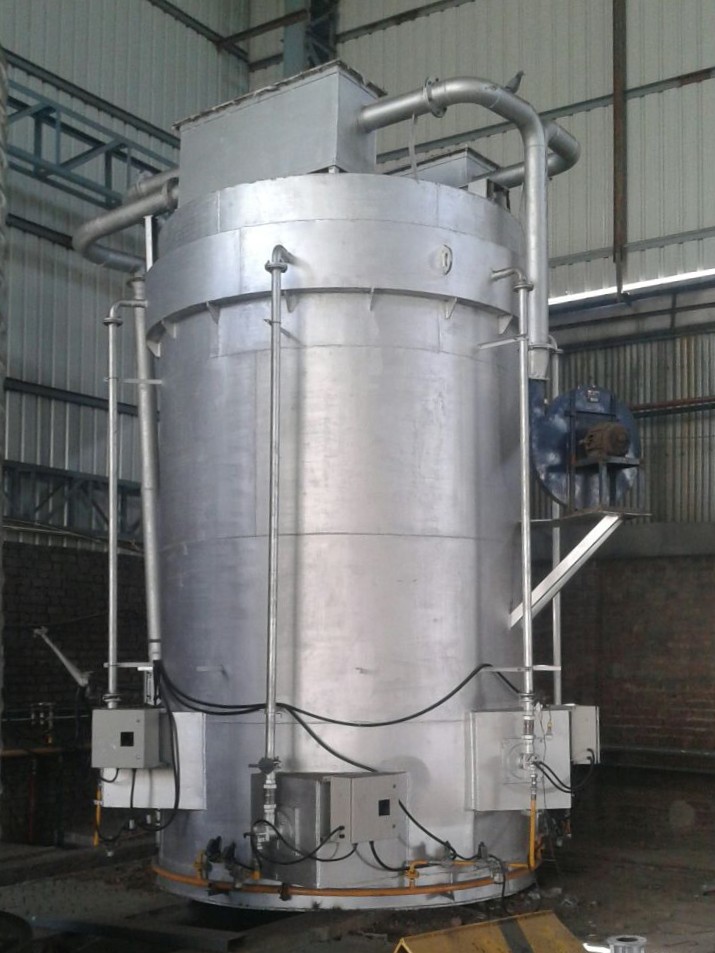

Elevator Furnace manufactured by United Enterprises is a bottom-loading batch furnace where the hearth elevates the charge into a stationary heating chamber from below ideal for heavy or fragile components.

Brief Description:

Elevator furnaces simplify loading of heavy or delicate components the charge is built up on the hearth at floor level and then raised into the heating chamber by a controlled hoist. This minimises mechanical stress and improves safety during loading and unloading.

We supply elevator furnaces in electric and gas-fired versions with multi-zone temperature control. Suitable for sintering, debinding, brazing and high-temperature annealing in air, inert or reducing atmosphere.

Each unit is engineered around the customers product geometry, weight and process requirement.

Characteristics:

Bottom-loading elevator hearth design
Maximum temperature up to 1080C as required
Air / inert / reducing atmosphere options
Multi-zone PLC temperature control
Multilayer ceramic fibre or refractory insulation
Safe elevator drive with hydraulic or electromechanical hoist
Suitable for sintering, debinding, brazing, annealing
Customizable hearth size and chamber height

About United Enterprises:

United Enterprises is a recognised Elevator Furnace manufacturer in India with over 25+ years of experience in batch furnace design. We design, manufacture, supply, export and commission tailor-made elevator furnaces across Asia and Europe. Our turnkey approach, in-house engineering and CE / ISO compliant manufacturing serve ceramic, sintering, advanced materials and R&D industries.

FAQs:

Q: Why use an elevator design?

A: Elevator design simplifies loading of heavy or fragile parts and improves safety during charging operations.

Q: What is the maximum operating temperature?

A: Depends on heating element choice we supply up to 1080C and beyond as needed.

Q: Can the elevator be automated?

A: Yes. Automatic loading sequences with PLC interlocks and safety scanners are routinely supplied.

Jump on the laureate of industrial furnaces with our Elevator Furnace, engineered for champions of heat treatment. Sizzling performance awaits, with a maximum temperature of 1200C, unbeatable temperature uniformity of 5C, and robust high-grade stainless steel or ceramic fiber lining. This electric furnace is furnished with a digital PID controller, champion Kanthal wire or SiC heating elements, and a powerful lifting mechanism. Secure maximum reliability with supreme safety features and lowest price offers-customized for your industrial triumph.

Diverse Heat Treatment Applications with Elevator Furnace

The Elevator Furnace is designed for precise applications such as annealing, sintering, hardening, laboratory testing, and glass processing. Its automatic lifting platform and vertically lifting door make it unrivaled for large-scale industrial use-ideal for factories, research labs, and glass workshops. Adaptable to various surfaces including metals, ceramics, and specialty glass, its user-friendly controls ensure seamless processing in demanding dust-free indoor environments.

Packaging, Sample Policy, and Payment Information

Our Elevator Furnace is securely dispatched in heavy-duty, shock-resistant export packaging designed for safe global delivery. Sample policies are tailored on request; quotations and list prices are provided based on your custom requirements. Flexible payment terms-including advance and letter of credit-are available to ease the purchase process for global exporters, manufacturers, and suppliers. Each order is swiftly processed to ensure prompt dispatching and client satisfaction.

FAQ's of Elevator Furnace:

Q: How does the Elevator Furnace ensure precise temperature control during operation?

A: The Elevator Furnace is equipped with a digital PID temperature controller that guarantees precise temperature regulation, maintaining uniformity within 5C across the chamber-vital for consistent heat treatment results.

Q: What are the typical usage scenarios for this Elevator Furnace?

A: This furnace is designed for industrial heat treatment tasks such as annealing, sintering, hardening, laboratory procedures, and glass processing, suiting a variety of applications in manufacturing plants, research institutes, and specialized glass workshops.

Q: When and where should the Elevator Furnace be operated for optimal performance?

A: Operate the Elevator Furnace in clean, dust-free indoor environments. It functions most effectively when installed in areas with controlled ventilation and adherence to safety protocols, commonly within industrial and laboratory facilities.

Q: What safety features are integrated into the Elevator Furnace design?

A: The Elevator Furnace incorporates multiple safety mechanisms: emergency stop, over current protection, thermal cutoff, and robust insulation (100-150 mm thick) to ensure operator and equipment safety during high-temperature operations.

Q: How is the Elevator Furnace customized to client requirements?

A: Clients can specify chamber dimensions, glass size, loading height, capacity, and power ratings according to their project's needs. Our team provides tailored solutions, ensuring the furnace meets unique industrial or laboratory demands.

Q: What payment terms and options are offered for purchasing the Elevator Furnace?

A: Our payment terms are flexible, offering advance payments and letters of credit. Quotations and official list prices are available upon request, making the order and dispatching process transparent and seamless for buyers worldwide.
