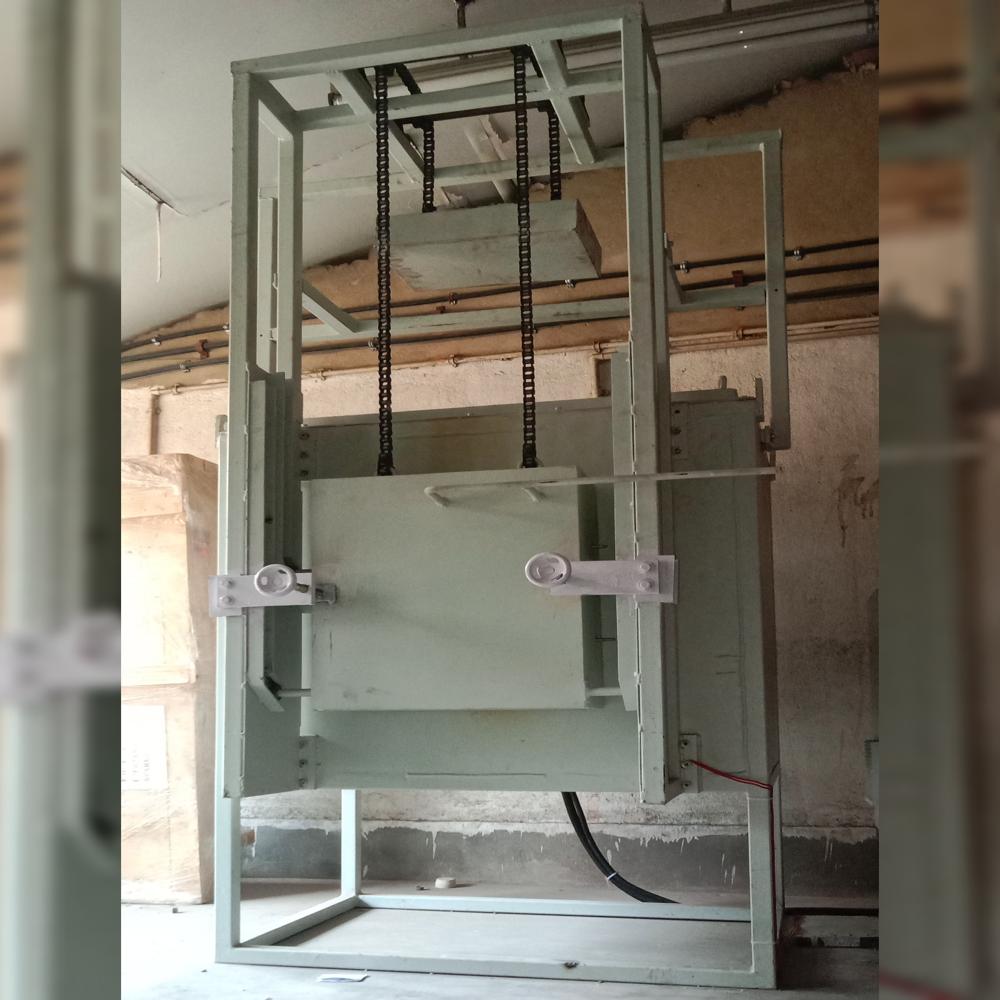

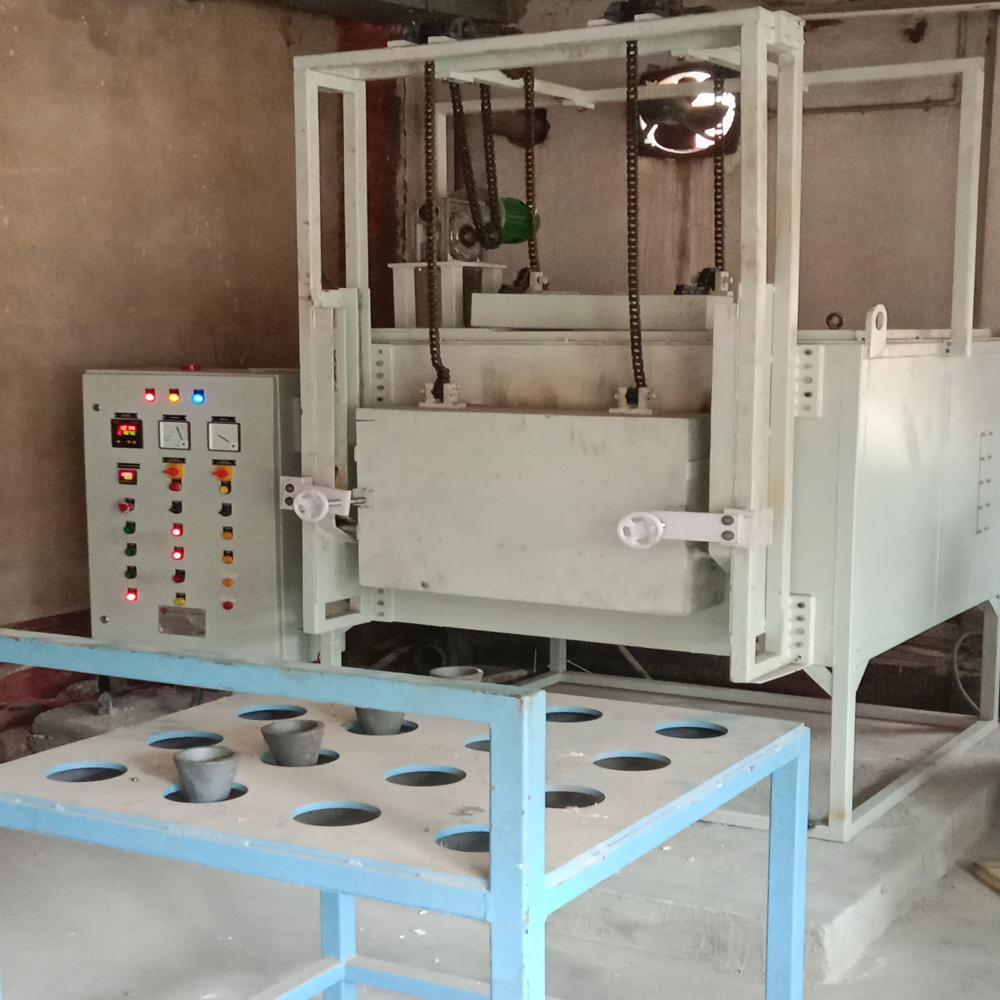

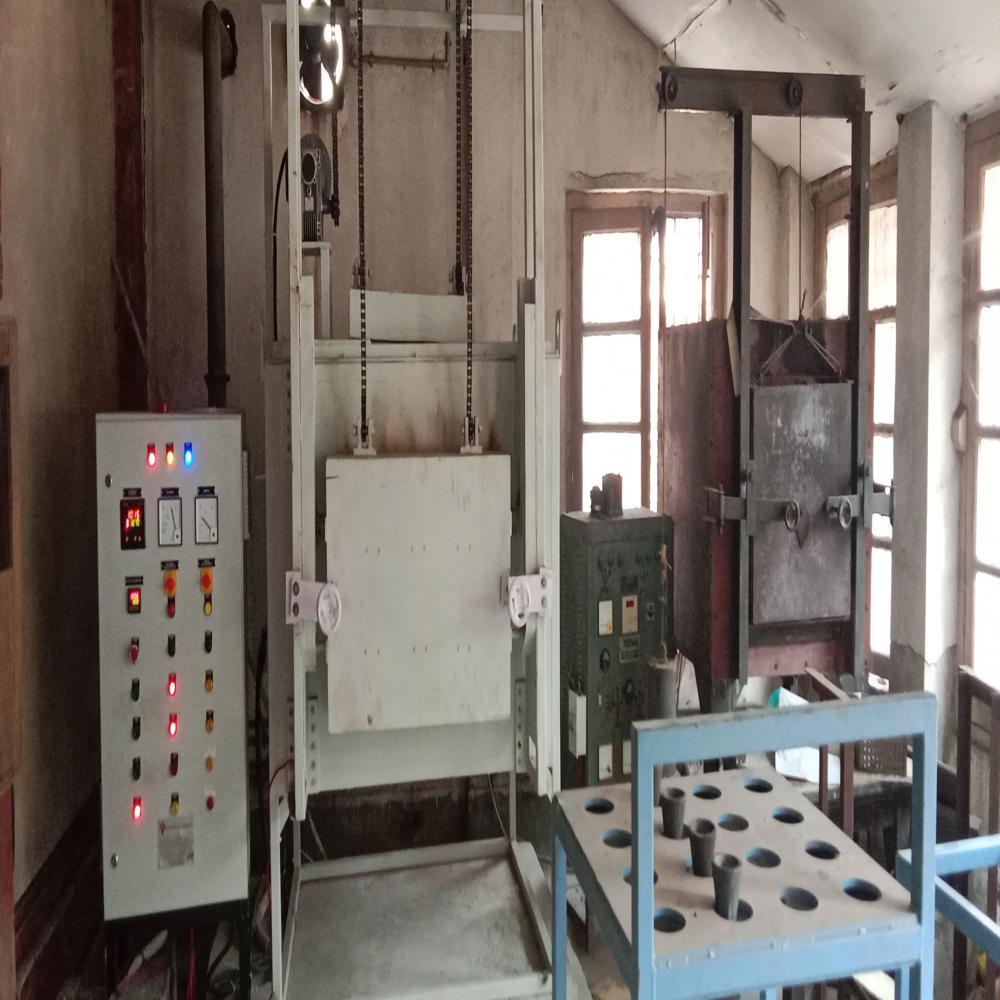

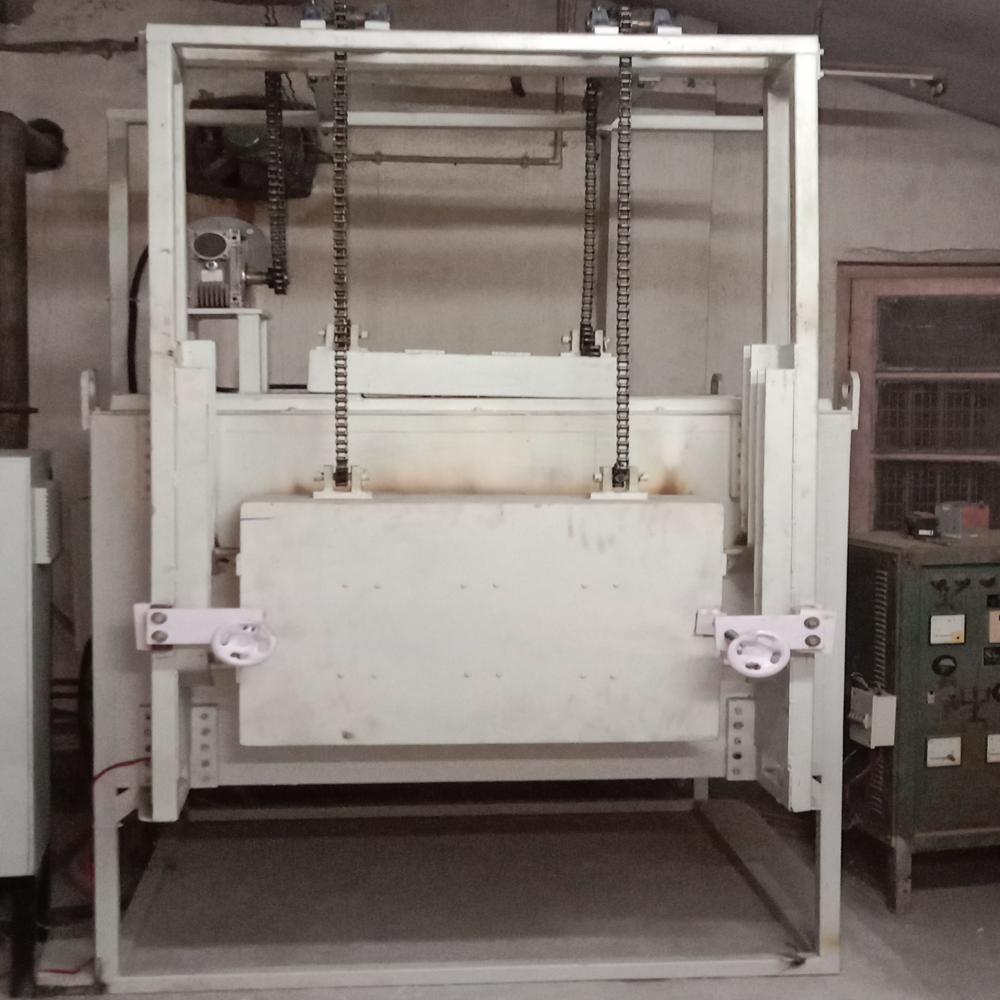

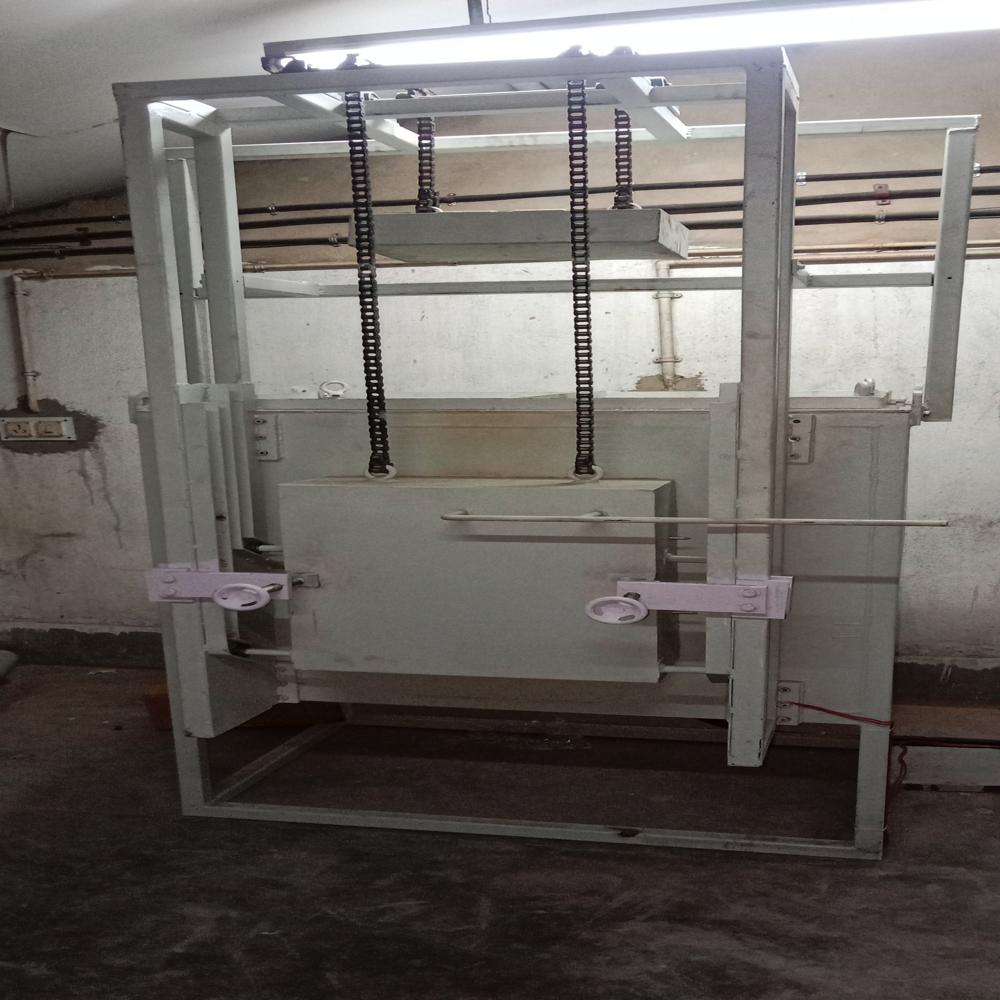

Cupellation Furnace

Name: Cupellation Furnace
Brand: UNITED ENTERPRISES
Price: 1000000.0 INR
Availability: InStock

Price 1000000.0 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

Cupellation Furnace Specification

Rating
High Temperature Furnace

Feature
Energy Efficient, Uniform Heating, Easy Maintenance

Condition
New

Type
Cupellation Furnace

Usage
Laboratory / Assay Testing

Power
3 kW - 9 kW (Depending on model)

Voltage
220 V / 380 V / 440 V (As per model)

Size
Standard / Custom as per requirement

Dimensions
600 x 450 x 600 mm / Custom sizes available

Weight
45 - 110 kg (Depending on size/model)

Application
Gold, Silver and Precious Metal Assaying

Fuel Type
Electric

Capacity
12 - 50 Cupels per batch (model-dependent)

Accessories Included
Cupel Tray, Tongs, Operating Manual

Heating Element
Kanthal A1 Wire / Silicon Carbide Rods

Ambient Operating Range
10C - 45C

Chamber Material
Refractory Ceramic Fiber Lined

Safety Features
Over-temperature Protection, Fused Power Circuit

Heating Method
Top and Side Heating Elements for Uniform Temperature

Thermostat
High Precision Temperature Sensing Thermocouple

Control System
Digital PID Controller with Programmable Settings

Display
LED Digital Display

Door Type
Front Opening, Insulated

Cooling Time
Fast Cooling Between Batches

Insulation Thickness
Up to 115 mm

Temperature Range
Ambient to 1200C

Furnace Construction
Heavy Duty Mild Steel Body with Powder Coating

Cupellation Furnace Trade Information

Minimum Order Quantity
1 Unit

Delivery Time
5-7 Days

About Cupellation Furnace

Cupellation Furnace manufactured by United Enterprises is a specialty high-temperature furnace built for cupellation the final stage of fire assay where the lead button is oxidised away on a porous cupel, leaving a precious-metal bead.

Brief Description:

We manufacture and export best-in-class Cupellation Furnaces, used in fire assay laboratories. The cupellation process is carried out at 950C1000C in air lead oxidises into PbO, which is absorbed by the porous cupel, leaving behind a bead of gold, silver or platinum group metals.

Our Cupellation Furnaces use SiC heating elements, multilayer refractory insulation and microprocessor-based temperature controllers. Air is supplied through engineered openings for efficient lead oxidation.

Each unit is engineered around the customers daily sample volume and assay standards.

Characteristics:

Designed for cupellation stage of fire assay
Maximum temperature up to 1100C
SiC heating elements
Microprocessor-based PID temperature controller
Engineered air openings for cupellation
Multilayer ceramic fibre / refractory insulation
Compact design for lab installation
Operator-friendly design with safety devices

About United Enterprises:

United Enterprises is over 25+ years experienced Cupellation Furnace manufacturer in India. We design, manufacture, supply, export and commission tailor-made Cupellation Furnaces across Asia and Europe. Established in 1998, we are an established manufacturer and exporter in India, supplying refineries, hallmarking centres, jewellery industries and mining labs all under CE and ISO standards.

FAQs:

Q: Cupellation temperature what is typical?

A: 950C1000C in air. Too low slows the process; too high may cause silver loss.

Q: Do you supply with fire assay furnaces?

A: Yes. Matching fire assay furnaces are offered as part of a complete fire assay lab.

Q: Lead, silver, gold beads how accurate is the analysis?

A: With well-controlled cupellation and accurate weighing, fire assay is the recognised gold standard for precious-metal analysis.
