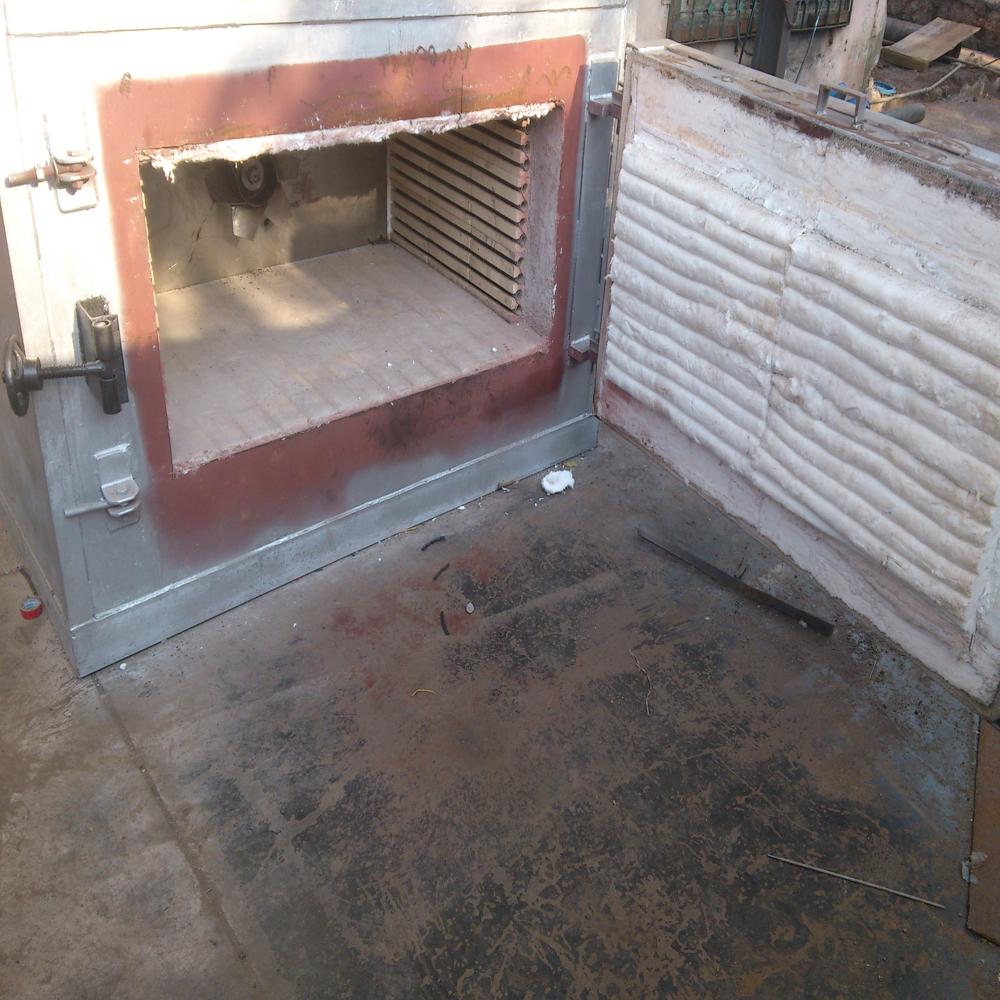

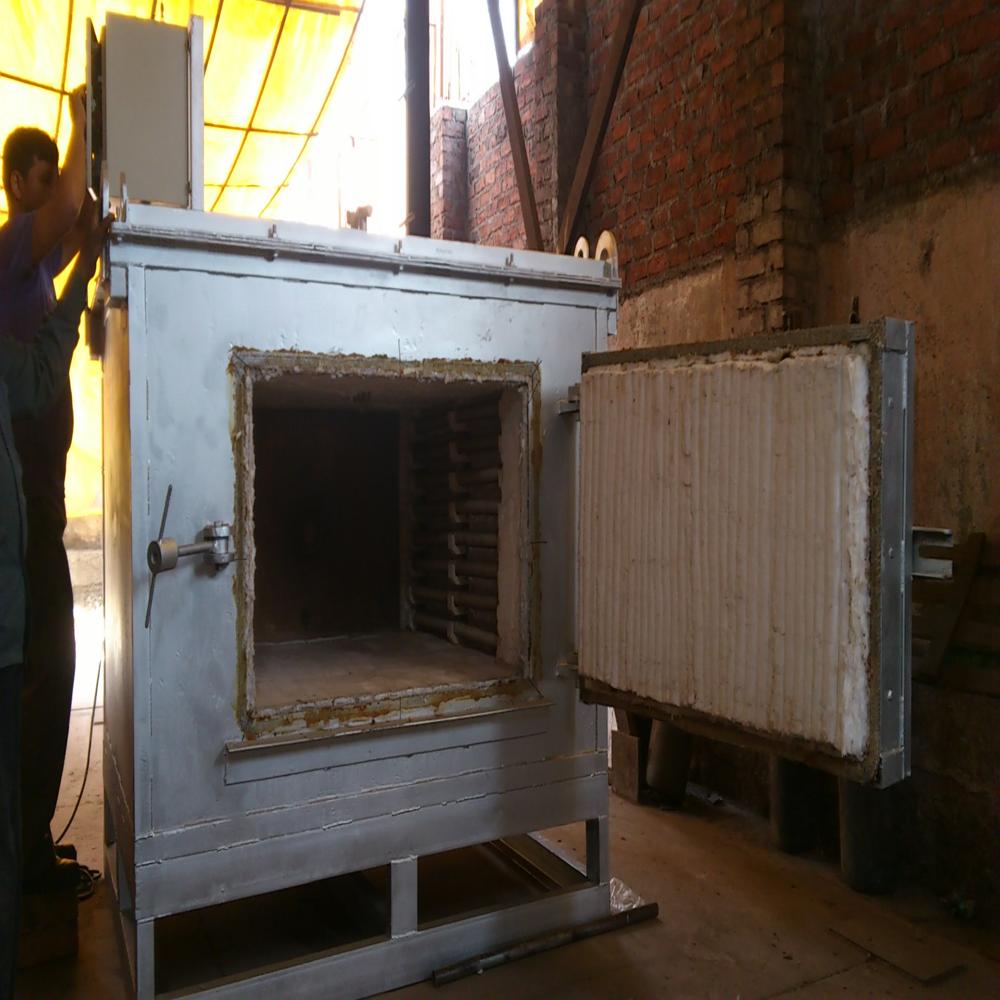

Curing Oven

Name: Curing Oven
Brand: UNITED ENTERPRISES
Price: 1250000.0 INR
Availability: InStock

Price 1250000.0 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

Curing Oven Specification

Condition
New

Heating Method
Forced Air Circulation

Accuracy
2C

Control Mode
Digital PID Controller

Heating Capacity
12 kW

Power Source
Electric

Type
Industrial Batch Oven

Model
CO-1500

Internal Size
1000 mm (W) x 1200 mm (D) x 1500 mm (H)

External Size
1200 mm (W) x 1500 mm (D) x 1800 mm (H)

Volume
1800 Liters

Air Flow
Horizontal/Uniform

Temperature Range
Ambient to 250C

Material
Mild Steel, Powder Coated

Dimension (L*W*H)
Approx. 1200 x 1500 x 1800 mm

Power
12-15 kW

Voltage
415 V, 3 Phase, 50 Hz

Surface Finish
Powder Coated

Heating Element
Tubular Heaters, Nickel Chrome

Timer
Programmable 0-999 minutes

Insulation Thickness
100 mm Mineral Wool

Safety Feature
Overheat Protection with Alarm

Door Type
Double leaf swing door with gasket

Applicable Use
Powder Curing, Paint Baking, Rubber Vulcanization

Number of Trays
8

Air Circulation Motor
0.5 HP, TEFC

Shelf Material
Stainless Steel

Display
LED Digital Display

Weight
Approx. 450 kg

About Curing Oven

Curing Oven manufactured by United Enterprises is a temperature-controlled industrial oven designed specifically for curing coatings, paints, adhesives and composite materials.

Brief Description:

Curing ovens are essential in powder-coating lines, paint shops, electronics, automotive and composite industries. The oven holds the product at a precise temperature for a controlled time, allowing chemical cross-linking of the coating or adhesive.

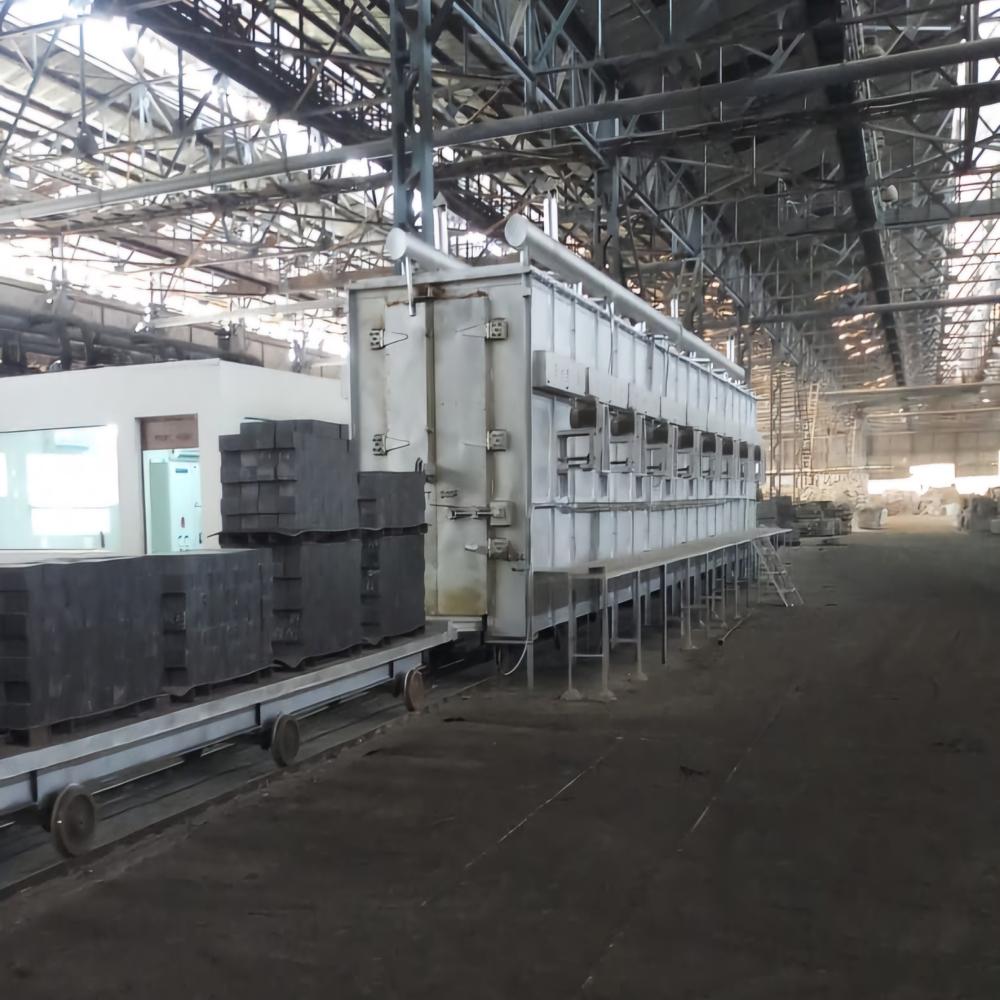

We supply curing ovens in batch and continuous configurations cabinet, walk-in, conveyor or overhead conveyor types. Electric, gas-fired and steam-heated versions are available. Multi-zone hot-air recirculation and PLC-based control deliver uniform, repeatable curing.

Each oven is engineered around the customers coating system, line speed and temperature profile.

Characteristics:

Batch or continuous curing oven
Maximum temperature up to 350C400C
Available in electric, gas-fired and steam-heated versions
Multi-zone hot-air recirculation for uniform curing
Cabinet, walk-in or conveyor configurations
Low-density high-quality insulation
PLC and SCADA-based recipe storage
Safety-vented design for solvent-laden curing (on request)

About United Enterprises:

United Enterprises is a trusted Curing Oven manufacturer in India with over 25+ years of experience in industrial ovens. We design, manufacture, supply, export and commission tailor-made curing ovens across Asia and Europe. Our turnkey approach, in-house design and fabrication and CE / ISO compliance support customers in paint, powder-coating, electronics, automotive and composite industries.

FAQs:

Q: How is curing uniformity ensured?

A: Through multi-zone heating, hot-air recirculation and well-designed air duct geometry, controlled in real time via PLC.

Q: Can I integrate it with my powder-coating line?

A: Yes. We supply standalone curing ovens or complete powder-coating lines with pretreatment, conveyor and cooling sections.

Q: What about safety for solvent-based paints?

A: Safety-vented and explosion-proof designs are supplied as per applicable standards for solvent-laden curing.

Precision and Efficiency in Industrial Curing

The CO-1500 Curing Oven delivers exceptional thermal uniformity thanks to its horizontal air circulation and advanced PID digital control. The programmable timer, overheat protection with alarm, and LED digital display ensure both safety and accuracy. This oven accommodates various industrial applications, including powder curing, paint baking, and rubber vulcanization, ensuring consistent, high-quality results every cycle.

Robust Construction for Reliability

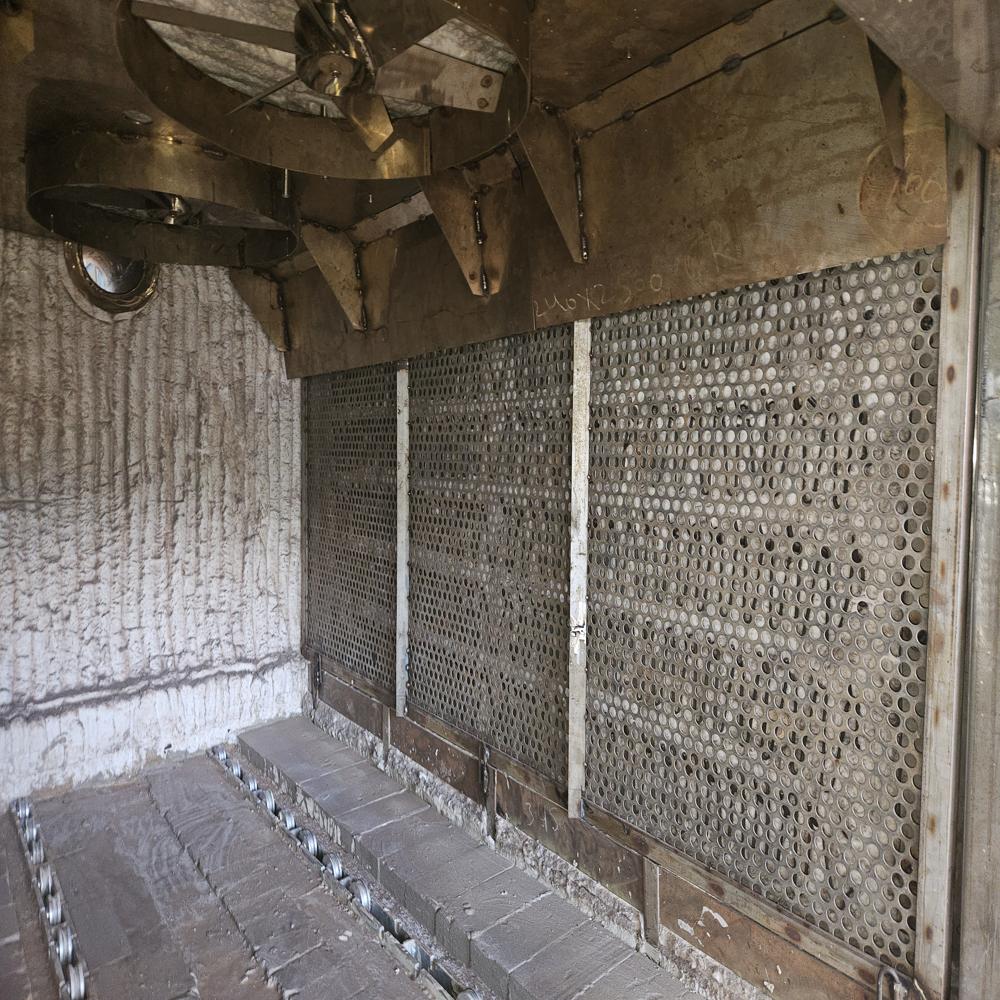

Built with a mild steel powder-coated exterior and 100 mm mineral wool insulation, the CO-1500 maintains temperature stability while minimizing energy loss. Stainless steel trays and a strong, double-leaf swing door with gaskets provide long-lasting durability and efficient heat retention. Its forced air circulation, driven by a 0.5 HP TEFC motor, ensures even heat distribution throughout the 1800-liter internal chamber.

User-Friendly Operation and Advanced Safety

This oven's user interface features a clear LED digital display with programmable controls, making operation straightforward. Safety is enhanced by overheat protection and an audible alarm, guarding against excessive temperatures. The oven's design prioritizes efficient process control, ensuring operator confidence in diverse industrial environments.

FAQ's of Curing Oven:

Q: How is uniform temperature maintained inside the CO-1500 curing oven?

A: Uniform temperature is achieved using a forced air circulation system powered by a 0.5 HP TEFC motor, which ensures horizontal and consistent airflow throughout the oven. The digital PID controller further maintains temperature stability within 2C accuracy.

Q: What types of processes can this curing oven be used for?

A: The CO-1500 is suitable for powder curing, paint baking, and rubber vulcanization tasks. Its programmable timer and precise temperature control make it versatile for various industrial applications requiring controlled heat treatment.

Q: When is the overheat protection system activated, and what does it do?

A: The overheat protection system activates if the oven temperature exceeds set safety limits. It triggers an audible alarm and halts the heating process to prevent damage to materials and ensure operator safety.

Q: Where is this oven typically installed and used?

A: This industrial batch oven is commonly installed in manufacturing facilities, workshops, and processing plants that require large-scale thermal processing, such as those in the automotive, metal finishing, and rubber industries.

Q: What benefits does the double-leaf swing door design provide?

A: The double-leaf swing door with gasket ensures a tight seal to minimize heat loss and improve energy efficiency. It also allows for easy loading and unloading of trays, enhancing operator convenience in busy industrial settings.

Q: How does the digital display facilitate the oven's operation?

A: The LED digital display provides real-time temperature readings, timer status, and system alerts. It allows operators to program and monitor processes easily, ensuring accuracy and reducing the chance of user error.
