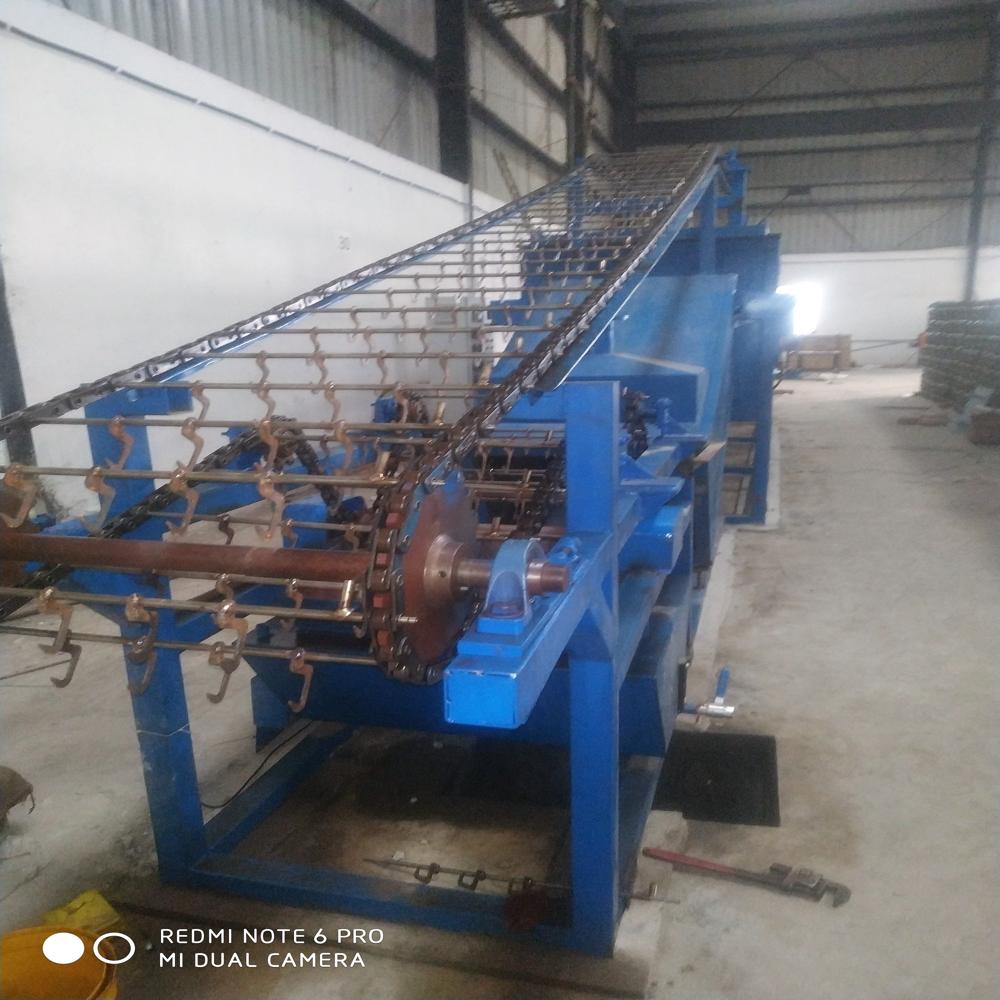

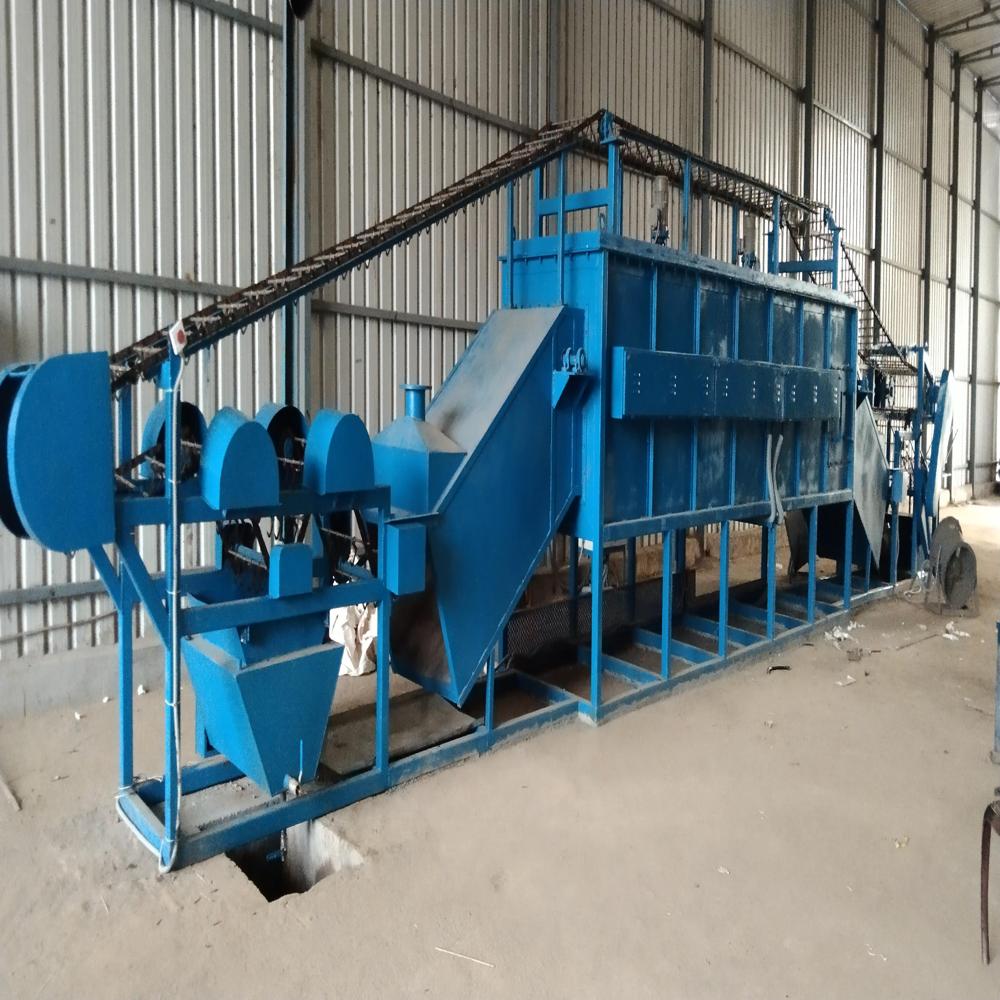

Humpback Continuous Belt Furnace

Name: Humpback Continuous Belt Furnace
Brand: UNITED ENTERPRISES
Price: 4000000.0 INR
Availability: InStock

Price 4000000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Humpback Continuous Belt Furnace Specification

Feature
Automatic temperature control, uniform heat distribution, PLC-based operation

Rating
Industrial grade

Glass Size
Up to 1500 mm width (customizable)

Condition
New

Type
Continuous Belt Furnace

Usage
Heat treatment / Annealing / Hardening

Power
18 kW - 120 kW (varies by size)

Voltage
415 V, 3 Phase

Size
Customizable as per requirement

Dimensions
Depends on model (typically L 5-15m x W 1-2m x H 1.5-2.5m)

Weight
2 - 10 Tons (model dependent)

Application
Metal parts processing, glass tempering, sintering, electronics

Fuel Type
Electric or Gas

Capacity
100 kg/hr - 3000 kg/hr (model dependent)

Insulation
Multi-layer ceramic fiber insulation

Heating Zone
Multiple independently controlled zones

Safety Features
Overheat protection, emergency stop switch

Ambient Noise Level
<80 dB

Control Panel
PLC with digital display and safety interlocks

Belt Speed
Variable, 0.05-1.5 m/min

Loading/Unloading
Automatic or manual options

Belt Material
Heat-resistant alloy steel mesh belt

Max Temperature
Up to 1150C

Finish
Epoxy powder-coated for corrosion resistance

Cooling Zone
Integrated forced air or water cooling

Chamber Material
High-grade refractory steel

About Humpback Continuous Belt Furnace

Humpback Continuous Belt Furnace manufactured by United Enterprises is a high-productivity continuous belt furnace whose elevated heating chamber retains reducing or inert gas more effectively than conventional flat-belt designs.

Brief Description:

The hump in the centre keeps the reducing atmosphere typically cracked ammonia, hydrogen or nitrogen-hydrogen mixture confined to the heating zone. This results in lower gas consumption, stable furnace atmosphere and excellent brazed/sintered joint quality.

We supply this furnace with our own Ammonia Cracker, Hydrogen Generator or Nitrogen Generator depending on the application. Electric or recuperative gas-fired heating options are available.

Common applications include copper-brazed heat exchangers, radiator parts, electronic components and bright sintered hardware.

Characteristics:

Humpback profile for low gas consumption
Continuous mesh belt operation
Cracked ammonia / hydrogen / nitrogen-hydrogen atmosphere
Electrical and gas-fired heating options
Multi-zone temperature control with PLC and SCADA
Belt tension and water quench mechanism integrated
Customizable belt width, length and chamber height
Suitable for brazing, sintering and bright annealing

About United Enterprises:

United Enterprises is a trusted manufacturer of Humpback Continuous Belt Furnaces in India with over 25+ years of experience. We design, manufacture, supply, export and commission tailor-made humpback furnaces across Asia and Europe. Our turnkey approach, in-house atmosphere generators and CE/ISO compliance make us a preferred partner for the brazing, sintering and electronics industries.

FAQs:

Q: How much gas saving can I expect with a humpback design?

A: Compared to a flat belt furnace under the same atmosphere, gas consumption is typically reduced significantly, depending on belt loading and gas flow setting.

Q: Is it suitable for stainless steel brazing?

A: Yes. With high-purity hydrogen atmosphere, the furnace is widely used for stainless steel and high-end alloy brazing.

Q: Can I retrofit a quench section?

A: Yes. Slow cooling, rapid cooling muffles or even water quench sections can be added at the exit.

Experience a crowning solution in industrial heat treatment with our Humpback Continuous Belt Furnace, featuring high-grade refractory steel chambers and a blue-ribbon, heat-resistant alloy steel mesh belt for dependable performance. With a first-rate design supporting up to 1150C, multiple precision-controlled heating zones, and advanced multi-layer ceramic fiber insulation, this special furnace guarantees uniform, efficient processing. Enjoy competitive pricing and affordable options tailored to your requirements-whether for metal hardening, glass tempering, or electronics sintering. Safety features and custom sizing ensure versatility while digital PLC controls streamline operation, making it the premier choice for exporters, manufacturers, and suppliers alike.

Areas of Application & Directions for Use

The Humpback Continuous Belt Furnace finds extensive application in metal parts processing, glass tempering, sintering, and electronics manufacturing. Frequently used by industrial manufacturers and export houses, it's suitable for continuous heat treatment, annealing, and hardening processes. To operate, simply load items onto the belt-either manually or automatically-set your desired parameters on the PLC control panel, and let the furnace's precision zones uniformly process your materials. Its versatility and customizable sizes ensure compatibility with diverse industrial workflows.

Certifications, Payment Terms & Supply Ability

Our continuous belt furnaces are shipped with full certifications to meet stringent industry standards, guaranteeing reliability and compliance. Take advantage of the lowest price options without compromising on quality or essential safety features. Payments can be arranged flexibly to suit your expenditure plans, and we boast strong supply ability to deliver promptly worldwide. Whether you're scaling up production or replacing aging equipment, our efficient logistics ensure timely arrival anywhere you choose.

FAQ's of Humpback Continuous Belt Furnace:

Q: How does the Humpback Continuous Belt Furnace ensure uniform heat distribution?

A: The furnace features multiple independently controlled heating zones and a heat-resistant alloy steel mesh belt, along with advanced multi-layer ceramic fiber insulation, to provide uniform heating and consistent processing across all items.

Q: What materials can be processed with this continuous belt furnace?

A: This furnace is suitable for processing metal parts, glass, ceramics, and electronic components-commonly used for heat treatment, annealing, hardening, glass tempering, and sintering in industrial applications.

Q: Where can the furnace be installed and used?

A: Designed for industrial environments, the furnace can be installed in manufacturing plants, export facilities, or specialized processing centers. Customizable size options ensure it fits various production floor layouts.

Q: What are the safety features included?

A: Safety is paramount, with features such as overheat protection, emergency stop switches, secure digital PLC operation, and safety interlocks to safeguard both the operator and equipment during use.

Q: How does the purchasing process work and what payment options are available?

A: Once an order is placed, payment terms are flexible to suit your financial planning. The furnace is shipped with all certifications, and competitive pricing ensures low expenditure without sacrificing performance.

Q: What are the benefits of choosing this furnace over others?

A: This model stands out for its special, customizable design, energy efficiency, first-rate safety features, and blue-ribbon performance, all offered at an affordable and competitive price point for industrial customers.
