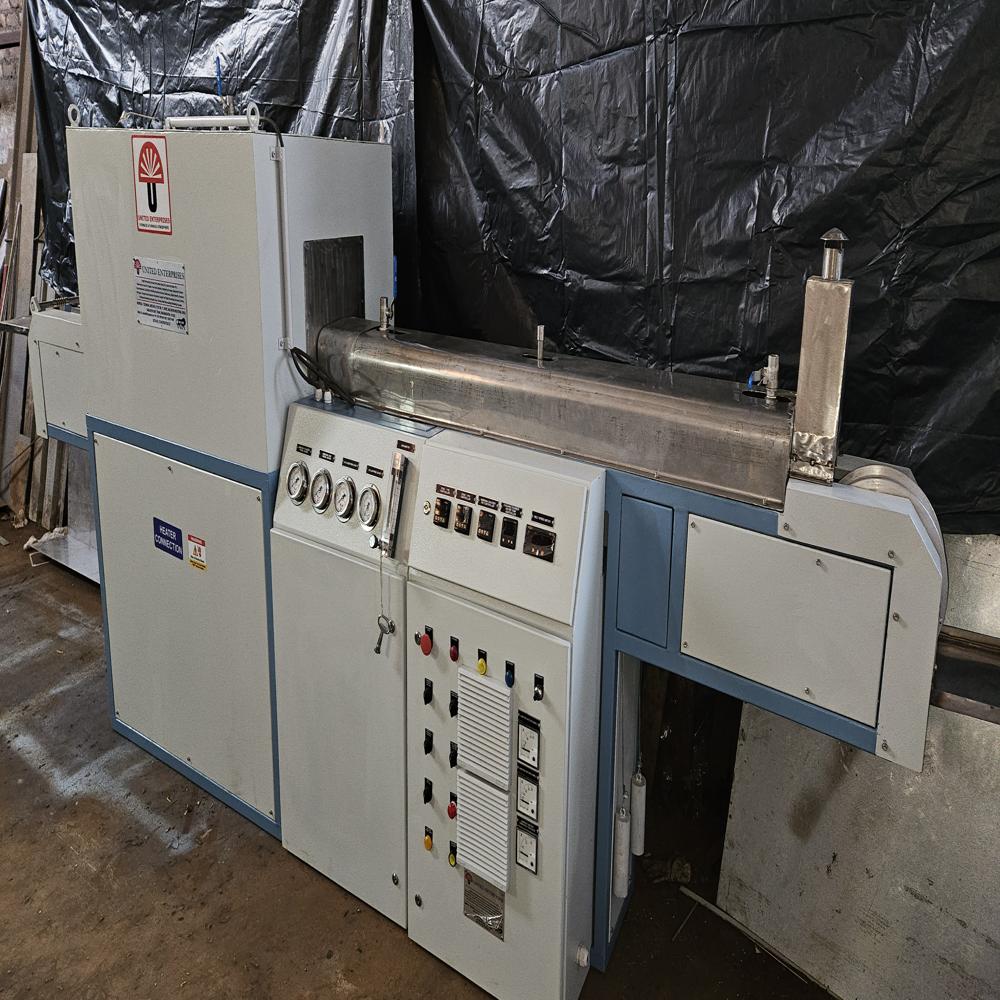

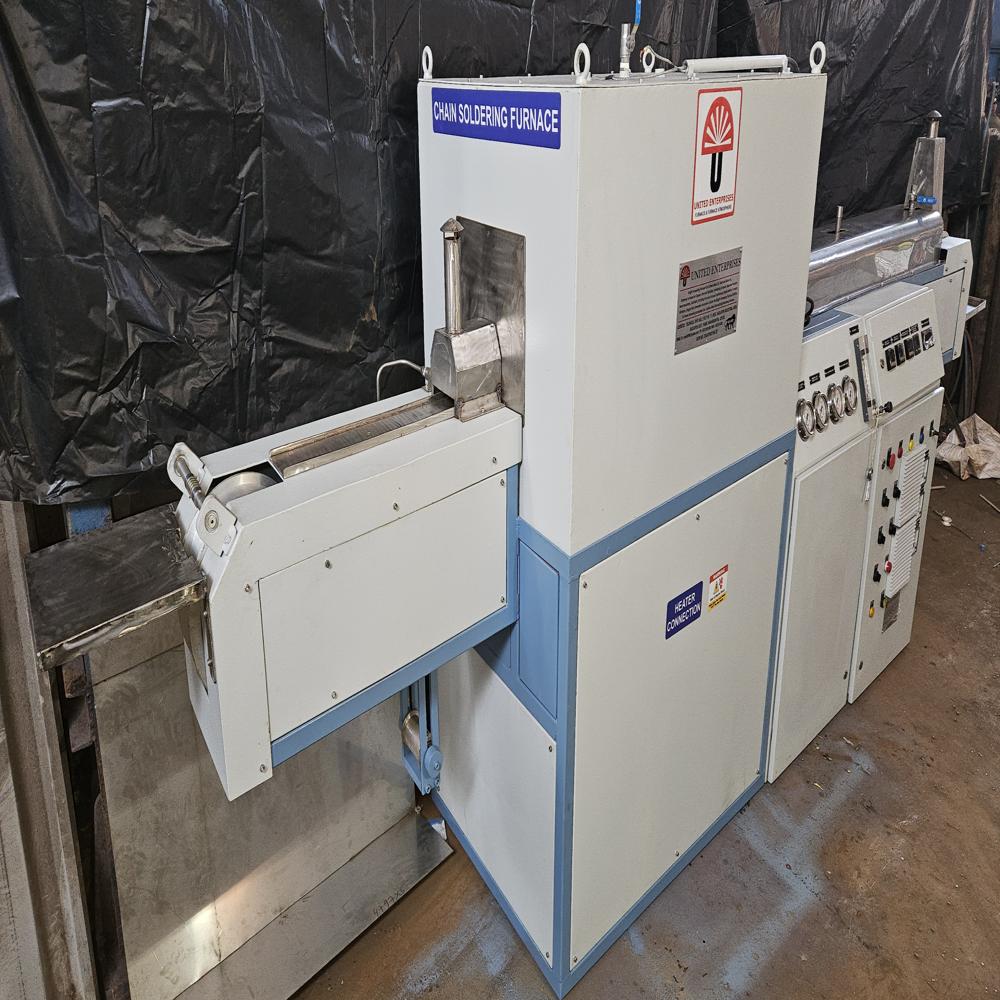

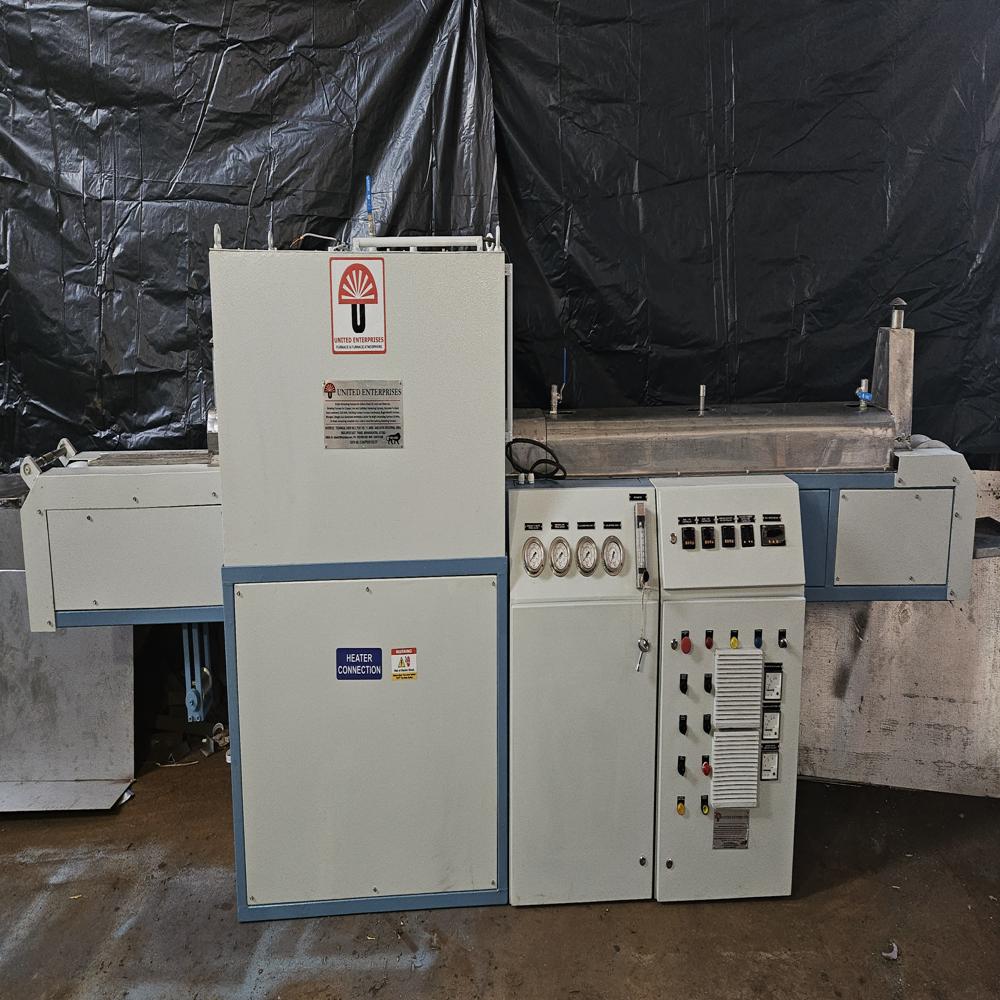

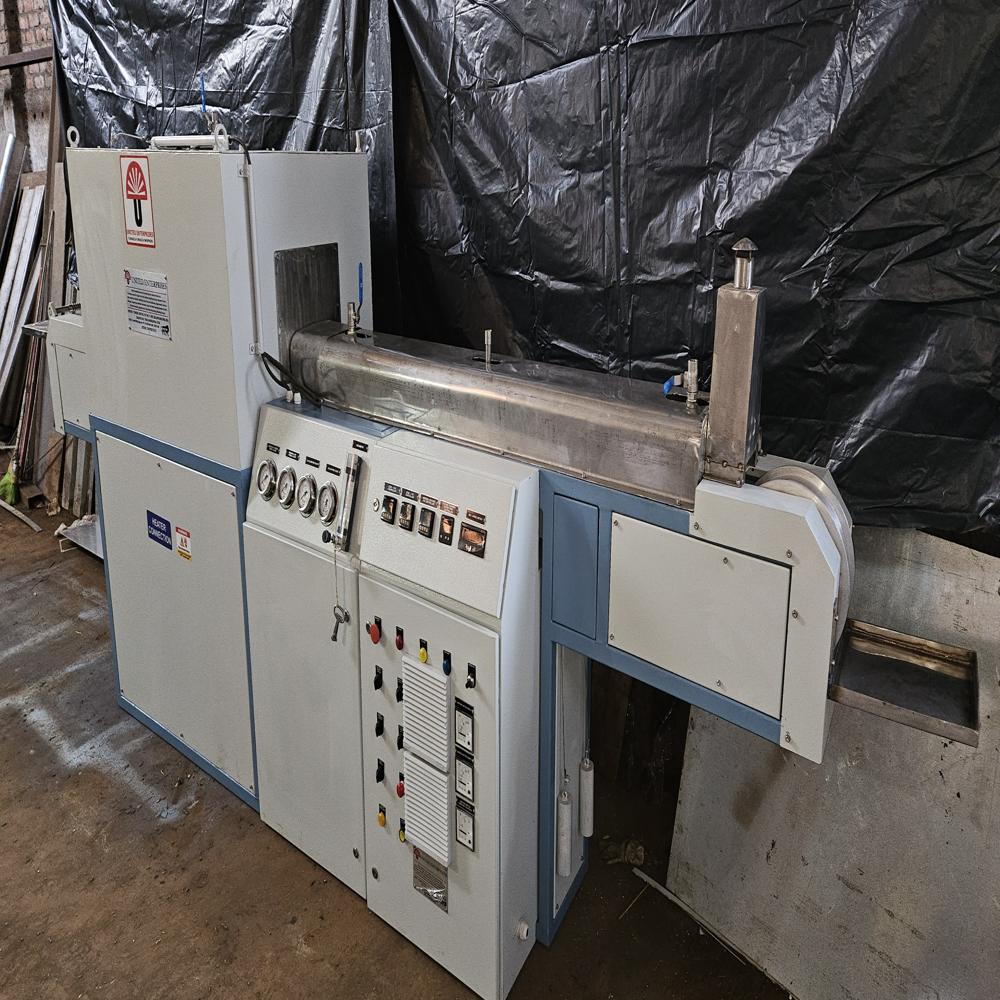

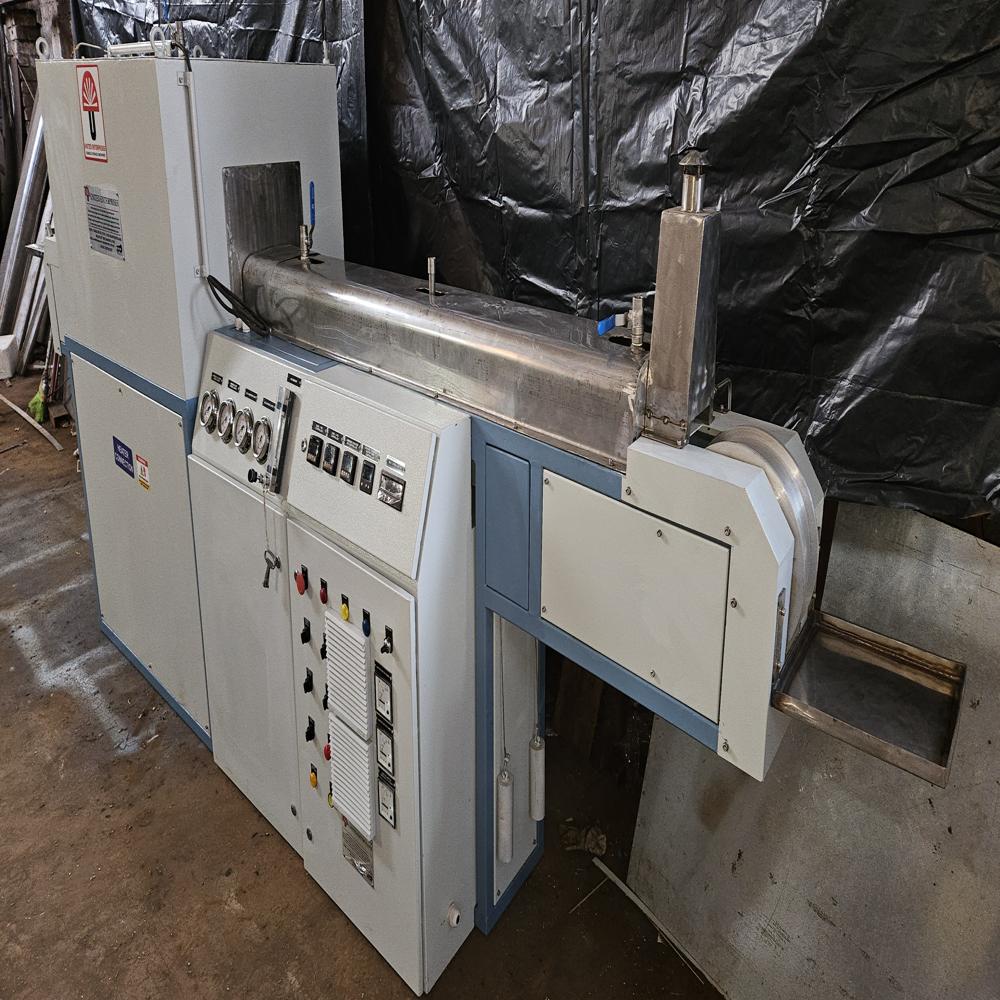

Industrial Gold Belt Furnace

Name: Industrial Gold Belt Furnace
Brand: UNITED ENTERPRISES
Price: 1600000.0 INR
Availability: InStock

Price 1600000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Industrial Gold Belt Furnace Specification

Feature
Energy efficient, High temperature uniformity, PLC control

Rating
3 Phase, Heavy-duty

Condition
New

Type
Continuous Belt Furnace

Usage
Industrial heating and gold processing

Power
30-60 kW

Voltage
415 V

Size
Customizable

Dimensions
3500 x 850 x 1200 mm (L x W x H)

Weight
Approx. 1800 kg

Application
Jewelry annealing, hardening, heat treatment

Fuel Type
Electric

Capacity
Up to 100 kg/hour

Portability
Stationary

Chamber Material
High-grade insulated steel

Display
Digital Temperature Display

Safety Feature
Over-temperature protection, Emergency stop switch

Insulation Type
Ceramic fiber blanket

Cooling Zone
Integrated

Heating Zone
Multiple, independently controlled

Control System
Digital PID / PLC-Based

Operating Environment
Indoor, well-ventilated area

Belt Speed
0.1-1 m/min

Belt Material
Stainless Steel Mesh

Maximum Temperature
1200C

About Industrial Gold Belt Furnace

Gold Belt Furnace manufactured by United Enterprises is a continuous mesh-belt annealing furnace specifically designed for bright annealing of gold wires, chains and small jewellery components.

Brief Description:

We manufacture and export best-in-class Gold Belt Furnaces, used for continuous bright annealing of gold chains, wires, sheets and small jewellery components. The unit uses a stainless steel or Inconel mesh belt to convey jewellery items through preheating, annealing and quenching zones in a controlled reducing atmosphere (cracked ammonia or hydrogen).

Our Gold Belt Furnaces are supplied with our in-house Ammonia Cracker or Hydrogen Generator for the atmosphere. Automatic speed/tension control, recipe-based temperature management, integrated quench tank and a buzzer alarm for cycle end are standard features.

Each unit is engineered around the jewellery workshops daily capacity and product mix.

Characteristics:

Continuous mesh-belt bright annealing
Designed for gold wires, chains, sheets, small jewellery
Cracked ammonia / hydrogen atmosphere
In-house Ammonia Cracker / Hydrogen Generator
Automatic speed / tension control
Integrated quench tank with cooling chamber
Recipe-based PLC and SCADA control
Compact, workshop-friendly footprint

About United Enterprises:

United Enterprises is over 25+ years experienced Gold Belt Furnace manufacturer in India. We design, manufacture, supply, export and commission tailor-made Gold Belt Furnaces across Asia and Europe. Established in 1998, we are an established manufacturer and exporter in India, supplying jewellery workshops, refineries and precious-metal industries all under CE and ISO standards.

FAQs:

Q: Belt furnace vs static annealing furnace for gold?

A: Belt furnace is preferred for continuous high-volume bright annealing; static annealing is better for small batches and varied products.

Q: Cracked ammonia or hydrogen?

A: Cracked ammonia is more economical; pure hydrogen gives a brighter mirror finish for premium applications.

Q: Can the same furnace anneal silver?

A: Yes. With appropriate temperature setting, the same belt furnace can anneal silver, platinum and other precious alloys.

Advanced Process Control

The furnace features a digital PID or PLC-based control system, empowering operators with detailed, precise regulation of each heating zone. This enables exceptional temperature uniformity and efficient energy use throughout the heat treatment, annealing, or hardening processes.

Superior Construction & Insulation

Constructed from high-grade insulated steel and incorporating a stainless steel mesh belt, the furnace ensures durability and consistent performance. The ceramic fiber blanket insulation provides effective thermal efficiency, minimizing heat loss and supporting rigorous industrial workflows.

Integrated Safety Standards

To ensure operator safety, the furnace is equipped with robust safety measures, including an over-temperature protection system and an emergency stop switch. These features maintain operational safety standards and help prevent accidents during high-temperature industrial applications.

FAQ's of Industrial Gold Belt Furnace:

Q: How does the industrial gold belt furnace achieve high temperature uniformity?

A: The furnace utilizes multiple, independently controlled heating zones managed by a digital PID or PLC control system. This configuration ensures consistent, uniform heat distribution across the stainless steel mesh belt, critical for processes like jewelry annealing and hardening.

Q: What type of applications is this furnace most suitable for?

A: This continuous belt furnace is specifically designed for industrial heating and gold processing tasks, including jewelry annealing, hardening, and various heat treatment processes requiring precise temperature control and reliability.

Q: When should I use the integrated cooling zone feature?

A: The integrated cooling zone is recommended for use immediately after the heating stages. It rapidly cools processed items, stabilizing their structure and enhancing process efficiency in continuous heat treatment or annealing operations.

Q: Where should this furnace be installed for optimal operation?

A: The furnace is intended for indoor, well-ventilated environments to ensure safe operation and effective temperature control. Adequate ventilation supports both equipment performance and operator safety.

Q: What safety features are included in the furnace?

A: It is equipped with over-temperature protection and an emergency stop switch to safeguard both the operator and equipment, mitigating risks associated with high-temperature industrial processes.

Q: How energy efficient is this furnace in industrial settings?

A: With ceramic fiber blanket insulation and precise PLC/PID control, the furnace is engineered for energy efficiency. It minimizes heat loss while maintaining accurate, stable temperatures, reducing overall power consumption during continuous operation.

Q: What are the customization options for size and capacity?

A: The furnace dimensions and processing capacity are customizable according to user requirements. Standard models measure 3500 x 850 x 1200 mm and accommodate up to 100 kg/hour, accommodating diverse industrial needs.
