Normalizing Furnace

Name: Normalizing Furnace
Brand: UNITED ENTERPRISES
Price: 2000000.0 INR
Availability: InStock

Price 2000000.0 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

Normalizing Furnace Specification

Rating
Industrial grade

Feature
Digital temperature controller, Energy efficient insulation, Automatic timing system

Condition
New

Type
Electric Heated/ Gas Fired

Usage
Industrial heat treatment

Power
30-150 kW (depending on model)

Voltage
380/415 V, 3 Phase, 50 Hz

Size
Customizable as per requirement

Dimensions
3000mm x 1200mm x 1500mm (example, customizable)

Weight
Approximately 4200 Kg (varies by size)

Application
Annealing, Normalizing, Stress relieving

Fuel Type
Electricity/Gas

Capacity
Up to 5 Tons per batch

Heating Element
Nickel-Chromium or Kanthal Elements (electric type)

Material of Construction
Heavy duty Mild Steel & Refractory Brick lining

Chamber Volume
3 to 25 m3

Control System
PLC based or standard digital controller

Max Operating Temperature
Up to 1200C

Process Atmosphere
Air

Insulation Thickness
125mm to 250mm

Cooling System
Optional forced air or natural cooling

Door Type

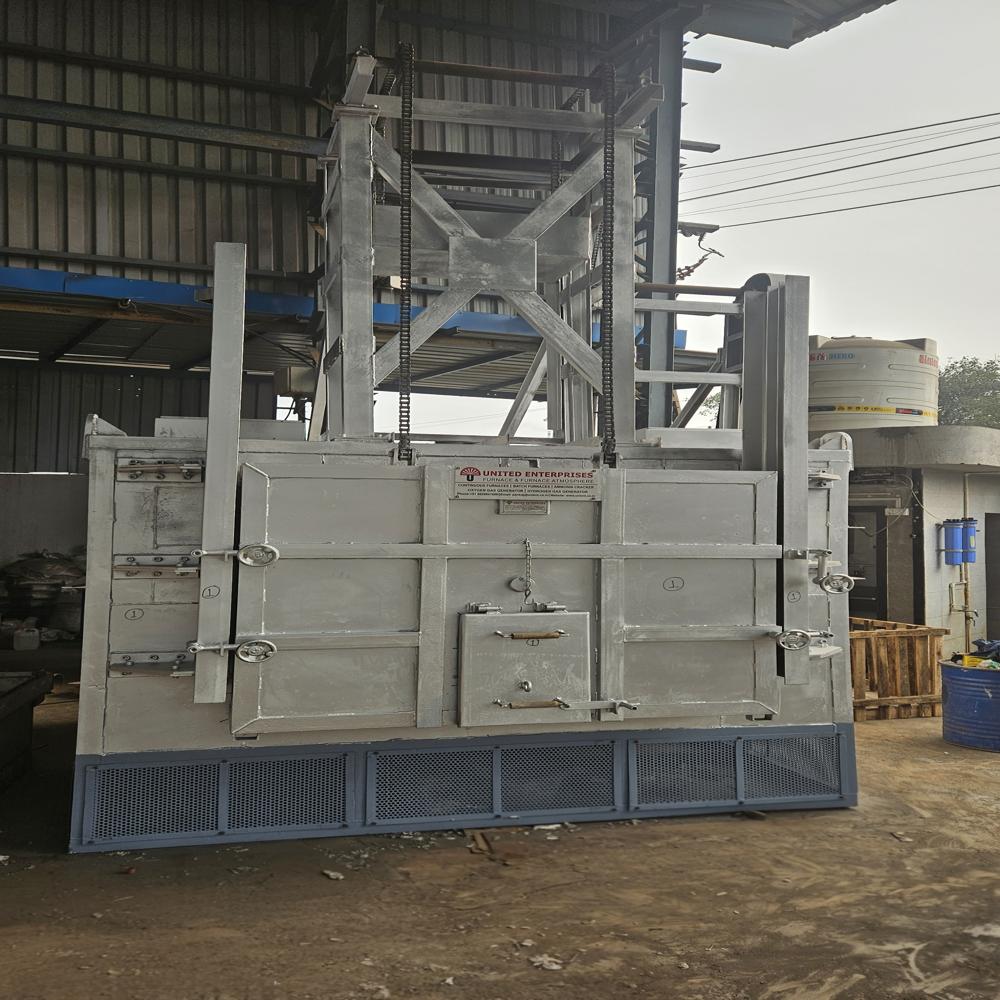

Motorized vertical sliding or manual options

Temperature Uniformity
10C

About Normalizing Furnace

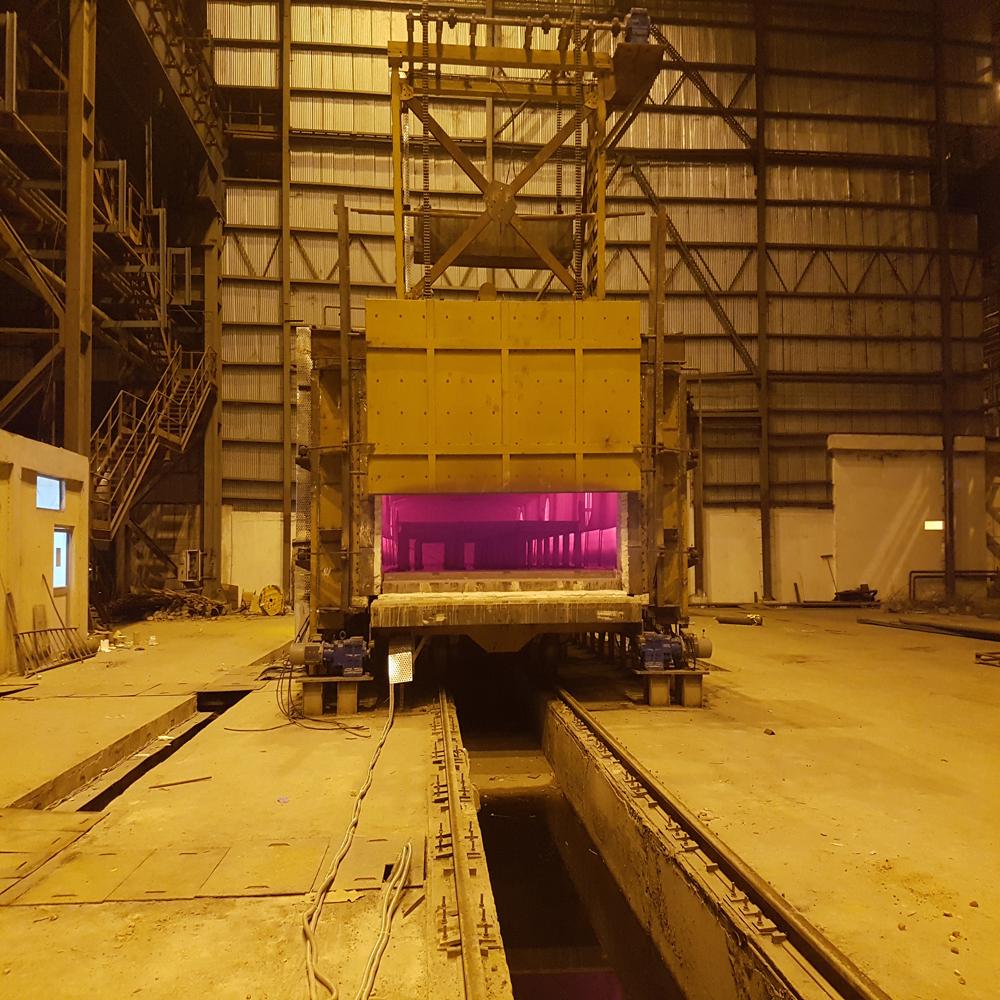

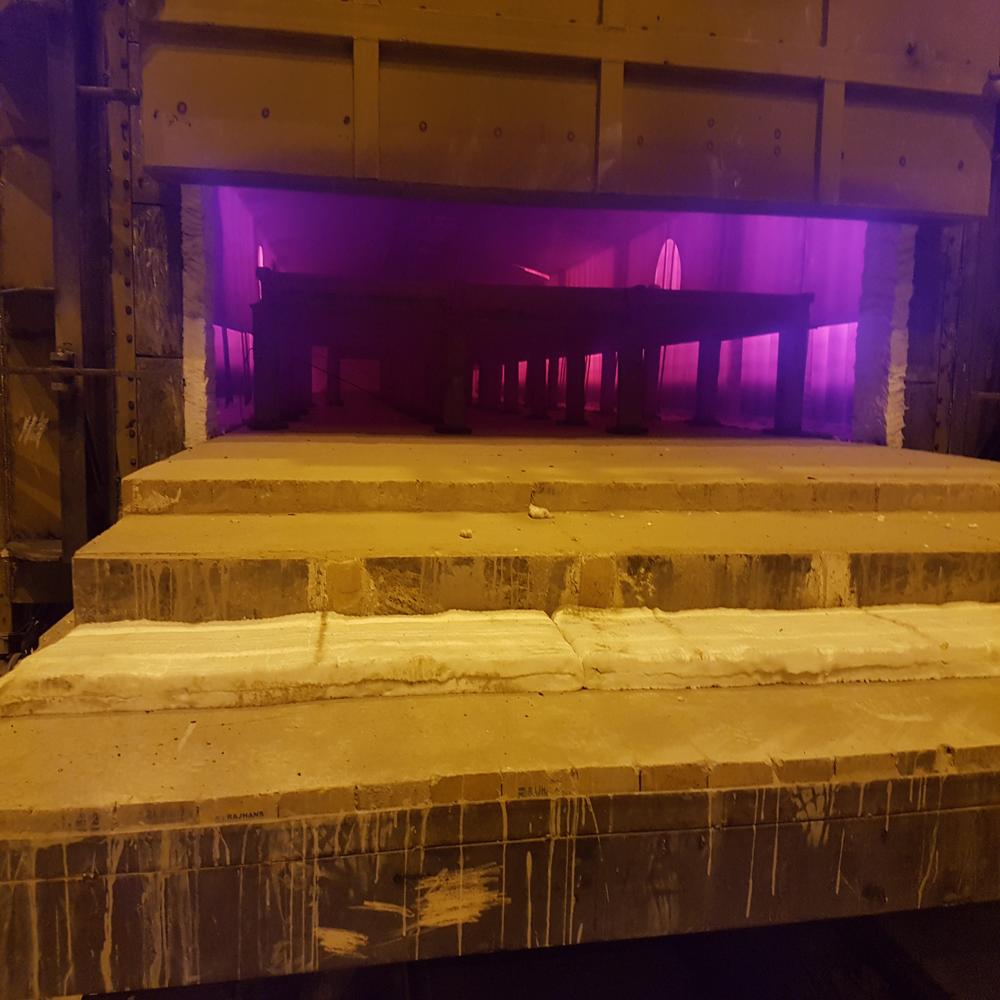

Normalizing Furnace manufactured by United Enterprises is a heat treatment furnace used to refine the grain structure of steel by heating it above its upper critical temperature followed by air cooling.

Brief Description:

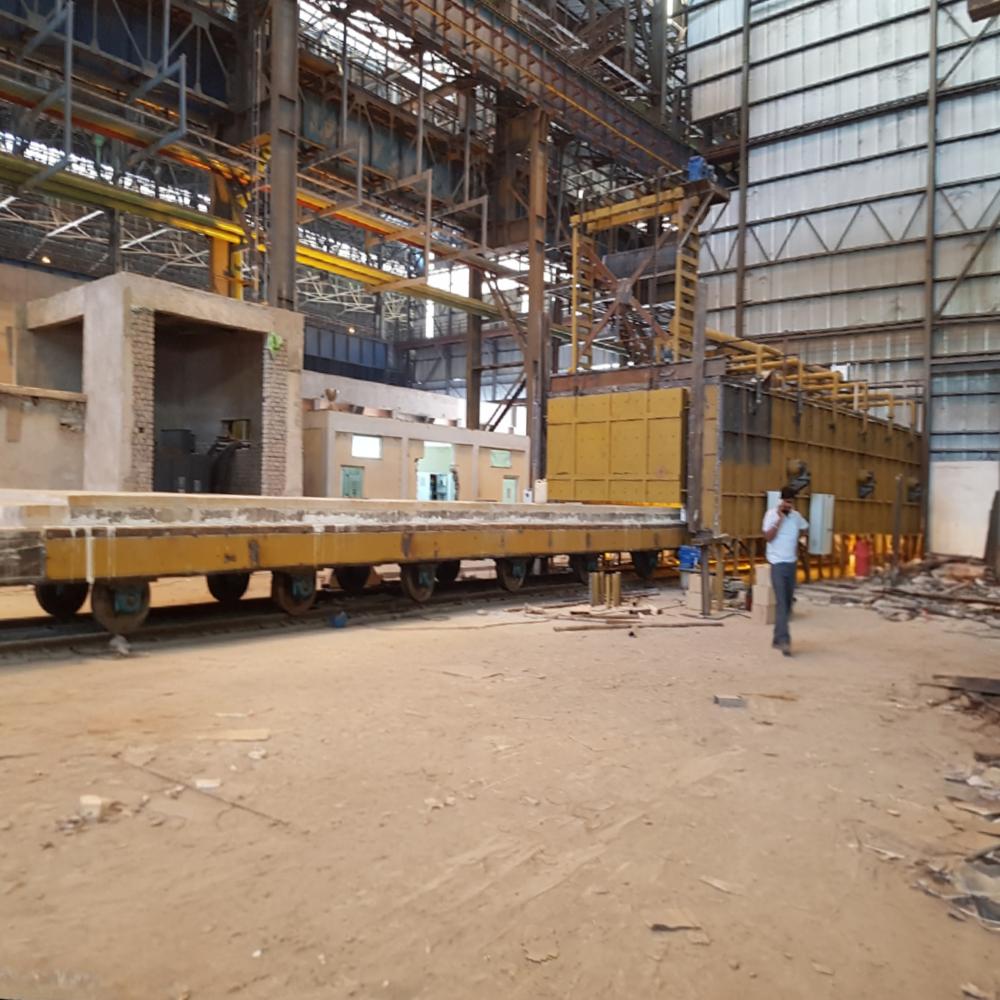

Normalizing is one of the most common heat treatment processes for carbon and low-alloy steels used to refine grain structure, improve machinability and homogenize mechanical properties after forging, casting or rolling. Our normalizing furnaces are offered in box, bogie, roller hearth and pit configurations.

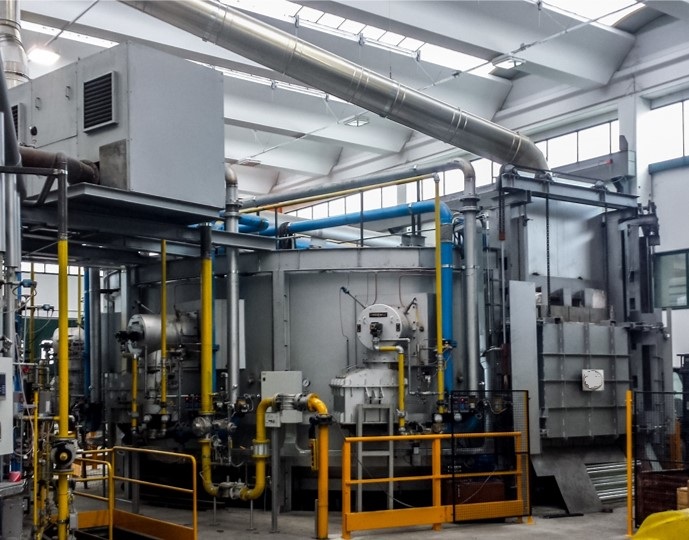

Both electric and recuperative gas-fired heating versions are available. Multi-zone temperature control through PLC and SCADA ensures uniform heating across the load, while air-recirculation fans (in lower-temperature designs) further improve uniformity.

Each furnace is engineered around the customers part mix, batch weight and target metallurgy.

Characteristics:

Maximum temperature up to 1100C
Box / bogie / roller hearth / pit configurations
Available in electric and recuperative gas-fired versions
Multi-zone PLC and SCADA temperature control
Air-recirculation for low-temperature uniformity
Low-density high-quality refractory insulation
Optional air-cooling chamber for controlled cooling
Suitable for forgings, castings and rolled products

About United Enterprises:

United Enterprises is among the top Normalizing Furnace manufacturers in India with over 25+ years of experience in heat treatment systems. We design, manufacture, supply, export and commission tailor-made normalizing furnaces across Asia and Europe. Our turnkey approach, in-house design and CE / ISO compliant manufacturing serve forging, casting, automotive and heavy engineering industries.

FAQs:

Q: Why normalize a forging?

A: To refine the grain structure, improve machinability and homogenize the mechanical properties after forging.

Q: Bogie or roller hearth which for plates?

A: Roller hearth for continuous high-volume plate normalizing; bogie for heavy or non-standard loads.

Q: Do you supply with air-cooling sections?

A: Yes. Controlled air-cooling chambers can be added for repeatable cooling rates.

Precision and Reliability for Industrial Heat Treatment

Designed for demanding industrial environments, this normalizing furnace ensures process efficiency and consistent results. Its advanced accessories-such as motorized doors, robust insulation, and digital controls-enable seamless integration into manufacturing workflows. Customizable in size and configuration, it addresses various production requirements, ensuring safety, durability, and top-tier energy efficiency.

Versatile Applications and Custom Configurations

The furnace accommodates a variety of heat treatment needs, including annealing, normalizing, and stress relieving. Available with forced air or natural cooling options, and powered by either electricity or gas, it can be tailored to meet specific plant requirements. Its user-friendly interface and advanced temperature management make it a preferred solution for manufacturers and exporters seeking consistent metallurgical results.

FAQ's of Normalizing Furnace:

Q: How does the normalizing furnace achieve precise temperature uniformity?

A: This furnace utilizes high-quality insulation materials and advanced heating elements (Nickel-Chromium or Kanthal) to maintain a temperature uniformity of 10C throughout the chamber. The PLC-based or digital control system ensures accurate temperature regulation across all areas of the load.

Q: What industrial processes can be carried out using this furnace?

A: The furnace is suitable for a range of heat treatment processes, including annealing, normalizing, and stress relieving. These processes enhance the mechanical properties, structure, and stability of metals typically used in manufacturing and fabrication industries.

Q: When should forced air cooling be selected over natural cooling?

A: Forced air cooling should be chosen when rapid cooling is required to achieve specific material properties or to improve production throughput. Natural cooling is adequate for standard applications where slower cooling rates are acceptable.

Q: Where is the furnace commonly installed or used?

A: This industrial-grade normalizing furnace is widely used in metalworking plants, forging facilities, fabrication shops, and steel processing units where consistent and controlled heat treatment is essential for quality assurance.

Q: What are the benefits of using a digital temperature controller in the furnace?

A: A digital temperature controller offers precise thermal management, automatic timing, and enhanced process reliability. It minimizes human error, maintains optimal temperature uniformity, and supports programmable profiles for different heat treatment cycles.

Q: How customizable are the chamber volume and size options?

A: The furnace's chamber volume ranges from 3 to 25 m3, with size and dimensions fully customizable to match individual production requirements. Dimensions and design considerations can be discussed and tailored during the ordering process.

Q: What energy efficiency measures are integrated into this furnace?

A: The furnace incorporates energy-efficient insulation (125-250mm thick) and optimized heating systems to reduce heat loss and power consumption, supporting sustainable and cost-effective operations for large-scale industrial applications.
