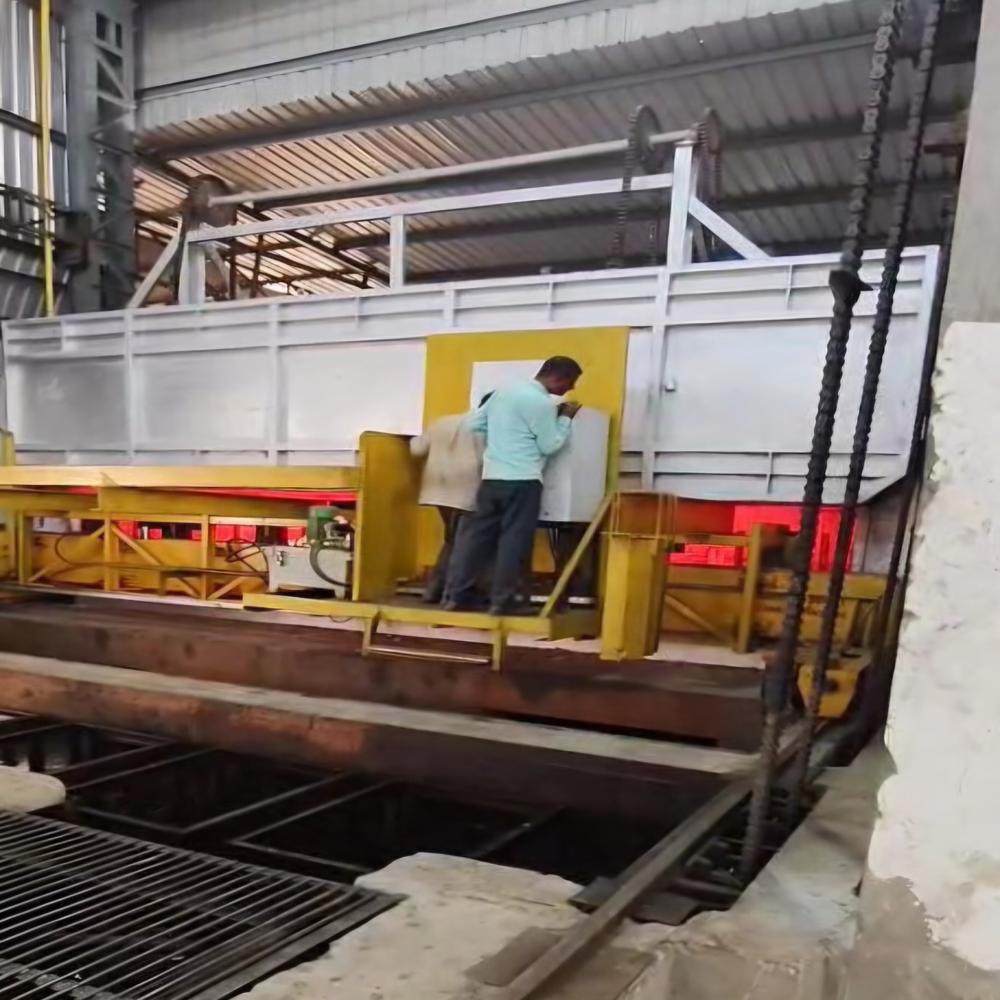

Rapid Quench Furnace

Price 2500000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Rapid Quench Furnace Specification

Feature
High Thermal Efficiency, Accurate Temperature Control, Fast Cooling Cycle

Rating
Industrial Grade

Glass Size
Accommodates various sizes up to specified capacity

Condition
New

Type
Quenching Furnace

Usage
Industrial Metal Heat Treatment

Power
Electric/Optional Fuel Fired

Voltage
380-440V

Size
Customizable as per requirement

Dimensions
As per model specification

Weight
Varies as per model

Application
Rapid Quenching, Annealing, and Hardening

Fuel Type
Electricity / Gas / Oil

Capacity
50 kg to 2 Tons/Batch

Chamber Design
Horizontal / Vertical (Optional)

Heat Up Time
Rapid - Optimized for Quick Cycles

Material of Construction
Mild Steel with High-Grade Insulation

Compliance
Meets International Industrial Standards

Surface Finish
Powder Coated / Painted

Insulation Type
Ceramic Fibre / High-Density Brick

Loading System
Manual or Automatic

Cooling Method
Forced Air, Oil, or Water Quench

Quench Medium
Water, Oil, Polymer (As Required)

Control System
Digital PID Controller

Safety Features
Over Temperature Alarm, Emergency Shutdown, Interlocks

Temperature Range
Ambient to 1300C

About Rapid Quench Furnace

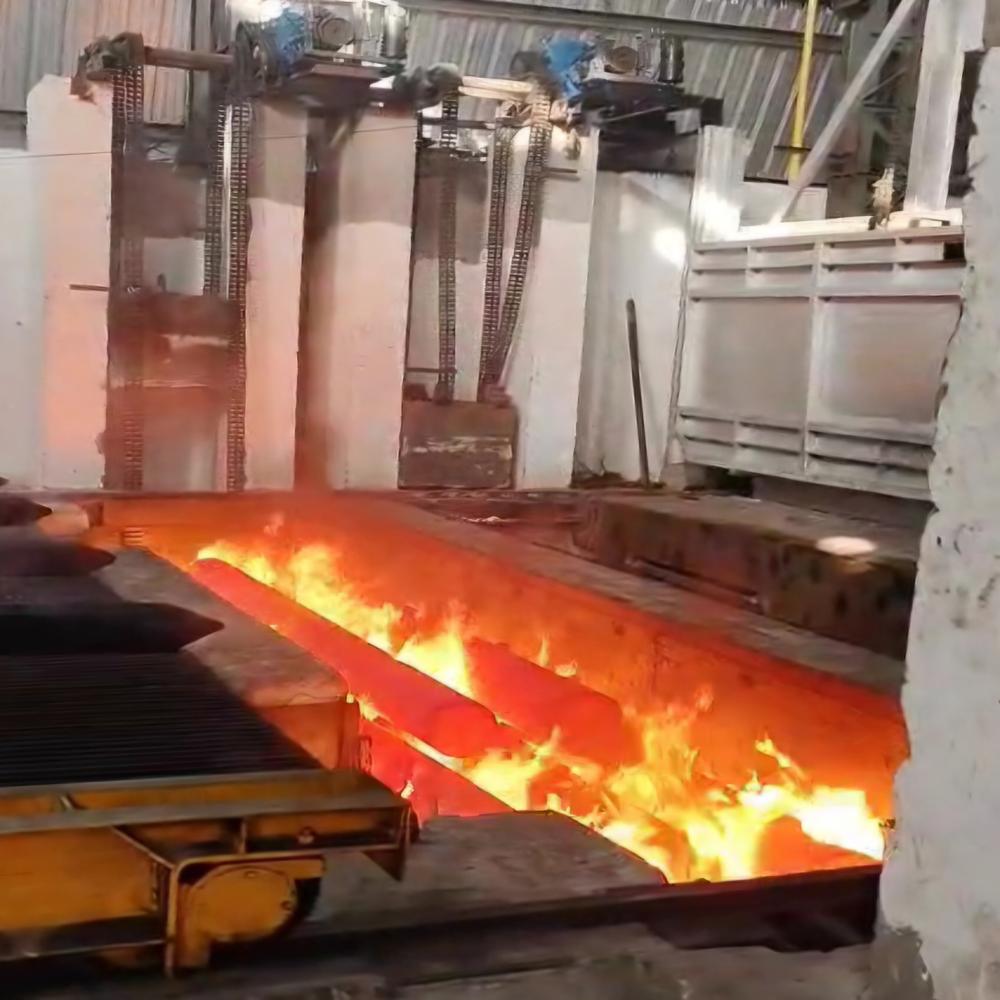

Rapid Quench Furnace manufactured by United Enterprises is a high-speed heat treatment furnace designed for solution annealing, hardening and ageing processes where minimum quench delay is critical.

Brief Description:

For aluminium solution heat treatment, stainless steel solution annealing and similar processes, quench delay must be kept very short to retain the desired metallurgy. Our Rapid Quench Furnaces use automated transfer mechanisms and high-capacity quench tanks to ensure quench delay within 1545 seconds depending on part size.

Each line is supported by robust XY / XYZ charging manipulators (up to 25 MT capacity) for safe, efficient charge handling. Both electric and recuperative gas-fired heating versions are available.

The line is engineered around the customers part, target metallurgy and production rate.

Characteristics:

Quench delay within 1545 seconds
Maximum temperature up to 1200C
Available in electric and recuperative gas-fired versions
Low-density high-quality insulation
XY / XYZ Charging Manipulators (up to 25 MT)
Suitable for solution heat treatment and ageing
Multi-zone PLC temperature control
Fully automated SCADA system

About United Enterprises:

United Enterprises is a trusted Rapid Quench Furnace manufacturer in India with over 25+ years of experience in solution heat treatment lines. We design, manufacture, supply, export and commission tailor-made rapid quench furnaces across Asia and Europe. Our turnkey approach, in-house design and fabrication and CE / ISO compliance support aerospace, defence, automotive and aluminium industries.

FAQs:

Q: Why is quench delay so important?

A: For aluminium and certain stainless grades, delayed quench can affect mechanical properties and corrosion resistance. Rapid quench protects these properties.

Q: How heavy a load can your manipulator handle?

A: Up to 25 MT in our standard range; custom designs for larger loads are also available.

Q: Do you support performance trials?

A: Yes. Quench delay, temperature uniformity and metallurgy can be validated at commissioning.

Optimized for High-Speed Heat Treatments

The Rapid Quench Furnace delivers fast heat-up times and quick cooling, maximizing throughput in demanding industrial environments. Designed to accommodate loads from 50 kg to 2 tons per batch, its adaptive chamber and customizable dimensions support diverse metal treatment requirements. The advanced insulation conserves energy, ensuring both efficiency and precise temperature management.

Flexible Design and Superior Control

With both horizontal and vertical chamber options and a choice of manual or automated loading systems, the furnace adapts to varied operational workflows. The integrated digital PID controller offers accurate temperature regulation, while multiple quenching and cooling options broaden its application range for different materials and finish specifications.

Safety and Compliance Assured

Engineered to meet international industrial standards, this furnace features essential safety measures-including over-temperature alarms, emergency shutdowns, and interlocks-to ensure safe, trouble-free operation. Surface finishes like powder coating enhance durability, while customizable design options address client-specific process needs.

FAQ's of Rapid Quench Furnace:

Q: How does the Rapid Quench Furnace achieve quick heat-up and cooling cycles?

A: This furnace utilizes high-grade insulation materials, such as ceramic fibre or dense brick, along with a powerful heating element to swiftly reach temperatures up to 1300C. Rapid cooling is enabled through forced air, water, oil, or polymer quenching, all tailored for efficient process cycling and minimal downtime.

Q: What types of heat treatment processes can be performed with this furnace?

A: It is suitable for a range of industrial heat treatment operations including rapid quenching, annealing, and hardening of metals. The precise digital PID control and configurable quench mediums make it versatile for different metallurgical processes.

Q: When should I choose horizontal versus vertical chamber design?

A: The choice depends on your material handling requirements and workflow. Horizontal chambers are preferred for large or elongated items, while vertical chambers are ideal for batch processes with varied part sizes or when space is limited. Both options offer excellent performance and thermal efficiency.

Q: Where can this furnace be installed in an industrial facility?

A: The furnace is designed for flexibility and can be installed in most industrial settings engaged in metal heat treatment. Its robust construction and customizable size options ensure straightforward integration into new or existing layouts, provided the appropriate utilities and safety measures are in place.

Q: What benefits does the digital PID controller provide in operation?

A: The digital PID controller ensures consistent, accurate temperature maintenance throughout the heat treatment process. This not only enhances product quality and repeatability but also optimizes energy consumption and process efficiency.

Q: How does the furnace ensure operational safety?

A: Safety is addressed through multiple features: an over-temperature alarm, emergency shutdown system, and interlocks to prevent unsafe operation. These measures are designed to protect both equipment and personnel during each stage of operation.
