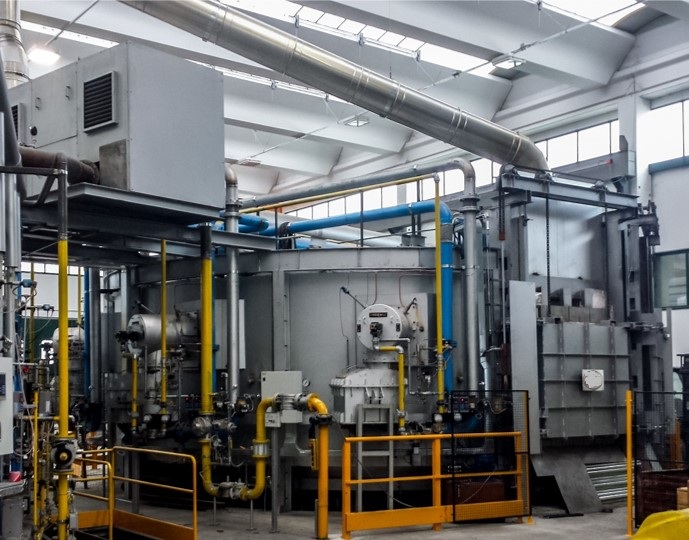

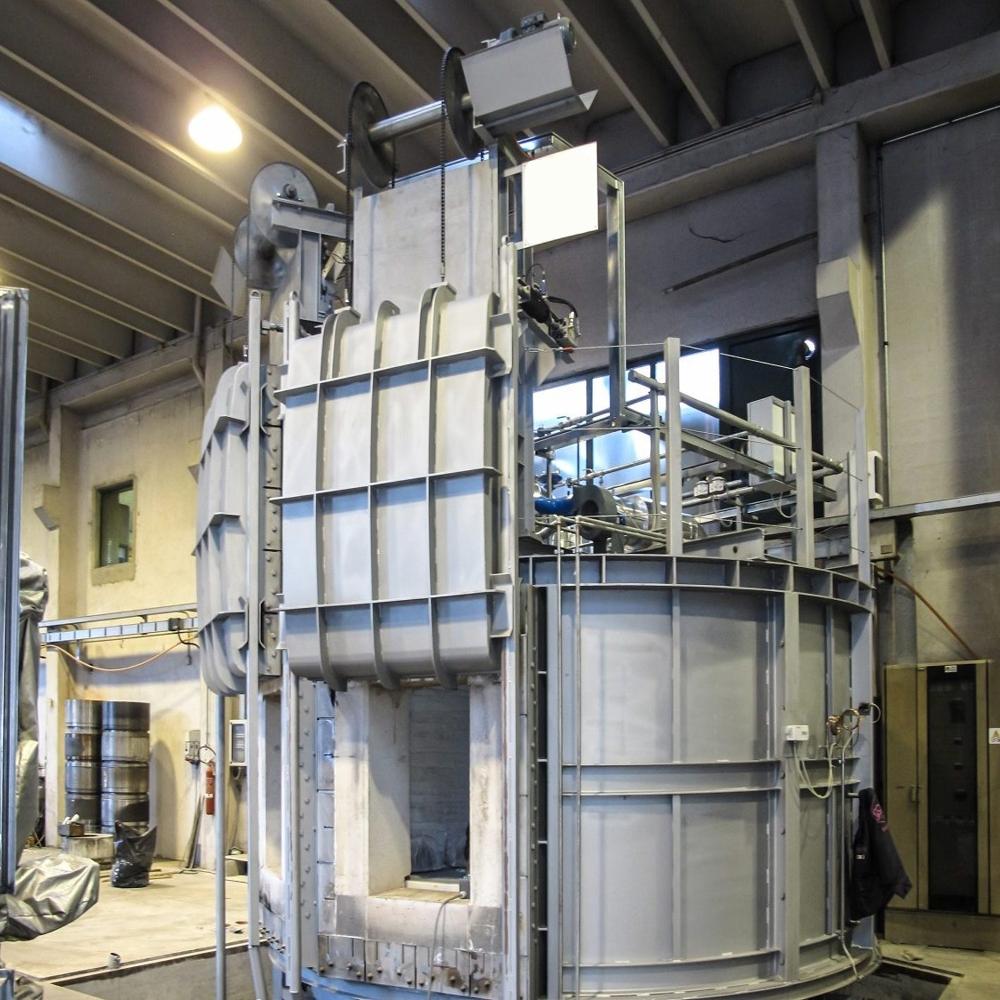

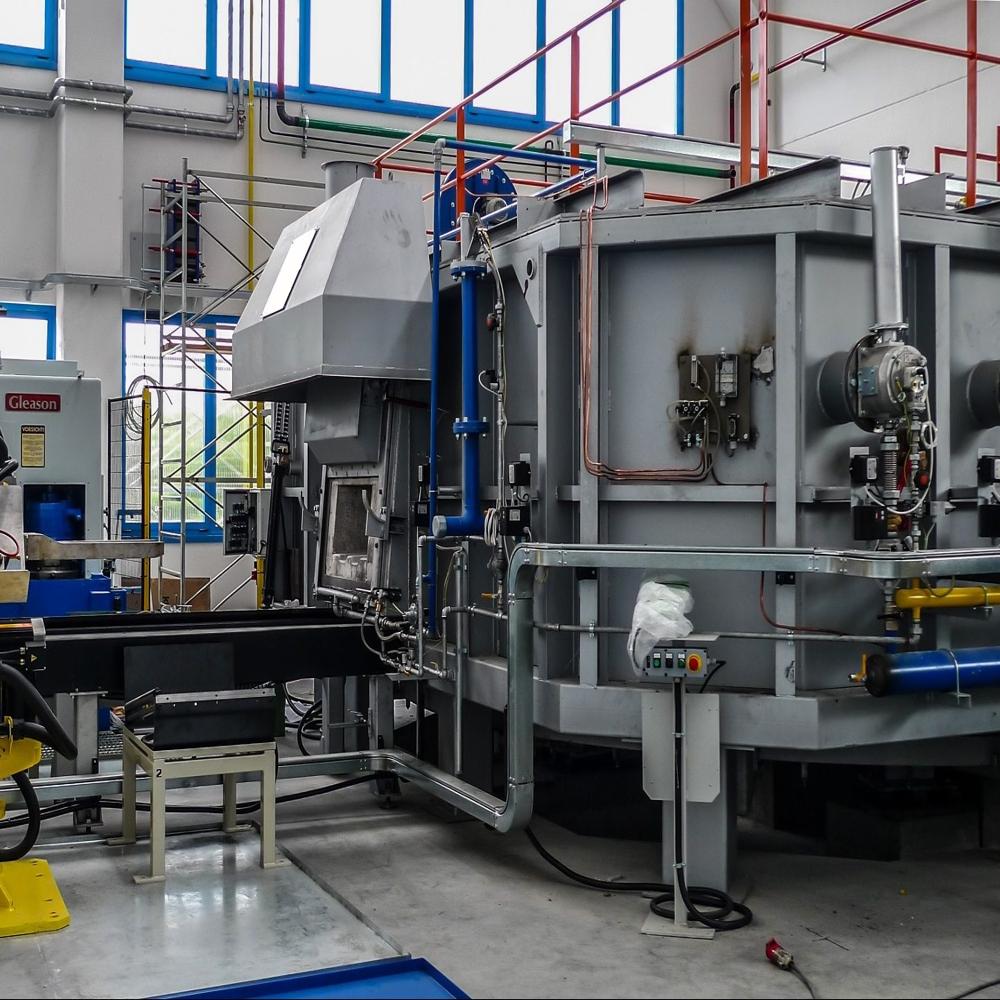

Rotary Hearth Furnace

Name: Rotary Hearth Furnace
Brand: UNITED ENTERPRISES
Price: 6000000.0 INR
Availability: InStock

Price 6000000.0 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

Rotary Hearth Furnace Specification

Rating
Up to 1800C Operating Temperature

Glass Size
N/A for Metal/Heat Treatment Applications

Feature
Uniform Temperature Distribution, Energy Efficient, Fully Automatic Control Panel, Robust Construction

Condition
New

Type
Rotary Hearth Furnace

Usage
Industrial Furnace for Heat Treatment Applications

Power
Electric/Gas Fired (Depending on Model)

Voltage
380V / 440V (Three Phase)

Size
Customizable as per requirement

Dimensions
Client-Specific, Typically Diameter 2m-10m

Weight
Depends on Size; Generally Ranges from 5 to 50 Tons

Application
Case Hardening, Annealing, Forging, and Other Metallurgical Processes

Fuel Type
Gas/Electric/Dual Fuel

Capacity
1-20 Tons per Batch (Model Specific)

Cooling System
Integrated Air/Water Cooling (Optional)

Heating Element Material
High-Grade Alloy/SiC Elements (For Electric Models)

Compliance
Meets ISO & CE Standards

Safety Features
Over-Temperature Protection, Emergency Shut-Off, Interlocks

Max Hearth Rotation Speed
Up to 1.5 rpm (Adjustable)

Loading/Unloading Mechanism
Automatic / Manual Options

Temperature Uniformity
5C

Control System
PLC Based Fully Automatic with User Interface

Insulation
High Quality Ceramic Fiber / Refractory Lining

Service Support
Onsite Installation & Maintenance Available

Atmosphere Control
Endothermic/Nitrogen - Optional as per Process

Cycle Time
Customizable, Typically 30-180 Minutes

Chamber Material
Heavy Duty Steel, Heat Resistant Coating

Rotary Hearth Furnace Trade Information

Minimum Order Quantity
1 Unit

Delivery Time
5-10 Days

About Rotary Hearth Furnace

Rotary Hearth Furnace manufactured by United Enterprises is a continuous-type furnace with a rotating circular hearth, designed for uniform heating of round or symmetric components for reheating, hardening or annealing applications.

Brief Description:

In a rotary hearth furnace, components are loaded onto a slowly rotating circular hearth. As the hearth rotates, the load passes through different heating zones preheating, heating, soaking and discharge completing one full thermal cycle per rotation.

This design is especially efficient for round billets, forging stock, bearing rings and gear blanks. Multi-zone burners or electric heating ensure tight temperature uniformity, while recuperative burners deliver excellent fuel economy.

We supply rotary hearth furnaces with custom hearth diameters, gas or electric heating and atmosphere control as per the application.

Characteristics:

Continuous rotating hearth for uniform heating
Maximum temperature up to 1300C
Recuperative gas-fired or electric heating
Multi-zone PLC-controlled temperature
Custom hearth diameter and load capacity
High-quality refractory lining for long life
Optional atmosphere control with in-house gas generators
Fully automated SCADA system

About United Enterprises:

United Enterprises is a recognised rotary hearth furnace manufacturer in India with over 25+ years of experience. We design, manufacture, supply, export and commission tailor-made Rotary Hearth Furnaces across Asia and Europe. With turnkey delivery, in-house design and fabrication and CE / ISO compliant manufacturing, we serve forging, bearing, gear, automotive and steel industries.

FAQs:

Q: What components are best suited for a rotary hearth?

A: Round or symmetric components such as forging blanks, bearing rings, gear blanks and round billets are ideal for rotary hearth design.

Q: How is heating uniformity maintained?

A: Multiple independently controlled heating zones around the hearth ensure each part receives the right temperature profile.

Q: Is atmosphere control possible?

A: Yes. Sealed rotary hearth designs with atmosphere control and gas trains are available for processes that need oxidation-free heating.

Discover the astonishing Rotary Hearth Furnace with an unmatchable control system-PLC based and fully automatic with an intuitive user interface. This superior solution is engineered with high-grade alloy/SiC heating elements, heavy-duty steel chambers, and ceramic fiber or refractory insulation, ensuring consistent temperature uniformity (5C). Enjoy robust, energy-efficient performance for a variety of industrial heat treatment processes. Now available at affordable, cost-effective pricing for a limited time! Benefit from fully customizable sizes and cycle times, integrated safety features, and onsite installation support. Elevate your operation with this ISO & CE compliant furnace today.

Rotary Hearth Furnace: Features & Applications

The Rotary Hearth Furnace is tailored for both specific and general metallurgical uses, excelling in case hardening, annealing, and forging. Its superior features include automatic/manual loading options, integrated atmosphere control, and precise temperature distribution. Operational direction is straightforward with its user-friendly PLC interface and customizable settings. Ideal for steel plants and manufacturing units, it offers robust construction and cycle times from 30 to 180 minutes, supporting batch capacities up to 20 tons.

Packaging, Payment, and Certifications Made Simple

Each Rotary Hearth Furnace is securely packaged and prepared for transit, ensuring it reaches you in top condition. Stock is ready for prompt dispatch against confirmed orders. Payment terms are transparent-detailed quotations and competitive charges are provided upfront. Our furnaces comply with ISO and CE certifications, confirming top-tier safety and performance standards. Trust us for reliable service, from order confirmation through installation and maintenance.

FAQ's of Rotary Hearth Furnace:

Q: How does the fully automatic PLC control system enhance the furnace's operation?

A: The PLC-based control system allows users to precisely manage temperature, atmosphere, and cycle times, ensuring uniform heat treatment with minimal manual intervention. Its user interface streamlines programming and monitoring, increasing operational efficiency.

Q: What types of processes can this rotary hearth furnace handle?

A: Designed for industrial use, it supports a range of heat treatment processes including case hardening, annealing, forging, and other metallurgical applications, yielding consistent results batch after batch.

Q: When is the best time to take advantage of your limited time pricing?

A: It's ideal to contact us as soon as possible, as affordable, cost-effective prices and stock availability are subject to change. Request a quotation now to secure your furnace at the current rate.

Q: Where can these furnaces be installed and do you provide on-site support?

A: Our rotary hearth furnaces are suitable for steel plants, foundries, and manufacturing facilities. We offer onsite installation and maintenance support to ensure optimal integration and performance.

Q: What safety features help protect against operational hazards?

A: The furnace is equipped with over-temperature protection, emergency shut-off, and interlocks, providing superior operational safety during the heat treatment process.

Q: How can the furnace configuration be customized according to my application?

A: We can tailor chamber size, loading mechanisms, heating element type, atmosphere control, and cycle times based on your specific batch capacity and process requirements.
