Vertical Furnace

Name: Vertical Furnace
Brand: UNITED ENTERPRISES
Price: 1200000.0 INR
Availability: InStock

Price 1200000.0 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

Vertical Furnace Specification

Rating
High Performance

Feature
Uniform Heating, Energy Efficient, Low Maintenance

Glass Size
Customizable

Condition
New

Type
Vertical Furnace

Usage
Industrial, Laboratory, Heat Treatment

Power
12-40 kW (depending on model)

Voltage
220-440V

Size
Standard/Customizable

Dimensions
As per model specification

Weight
Approx. 800-2500 kg

Application
Glass Processing, Annealing, Tempering, Industrial Furnacing

Fuel Type
Electric

Capacity
Varies as per requirements

Heating Element Material
Kanthal/Nichrome

Heat Up Time
15-45 minutes depending on model

Operating Environment
Ambient to 40C

Insulation
High-density Ceramic Wool

Safety Features
Overheat Protection, Emergency Shut-off

Display
Digital Display Panel

Max Temperature
1200C

Thermocouple Type
K/R/S Type

Chamber Material
Stainless Steel

Control System
PID Digital Temperature Controller

Door Type
Vertical Hinged/Sprung Load

About Vertical Furnace

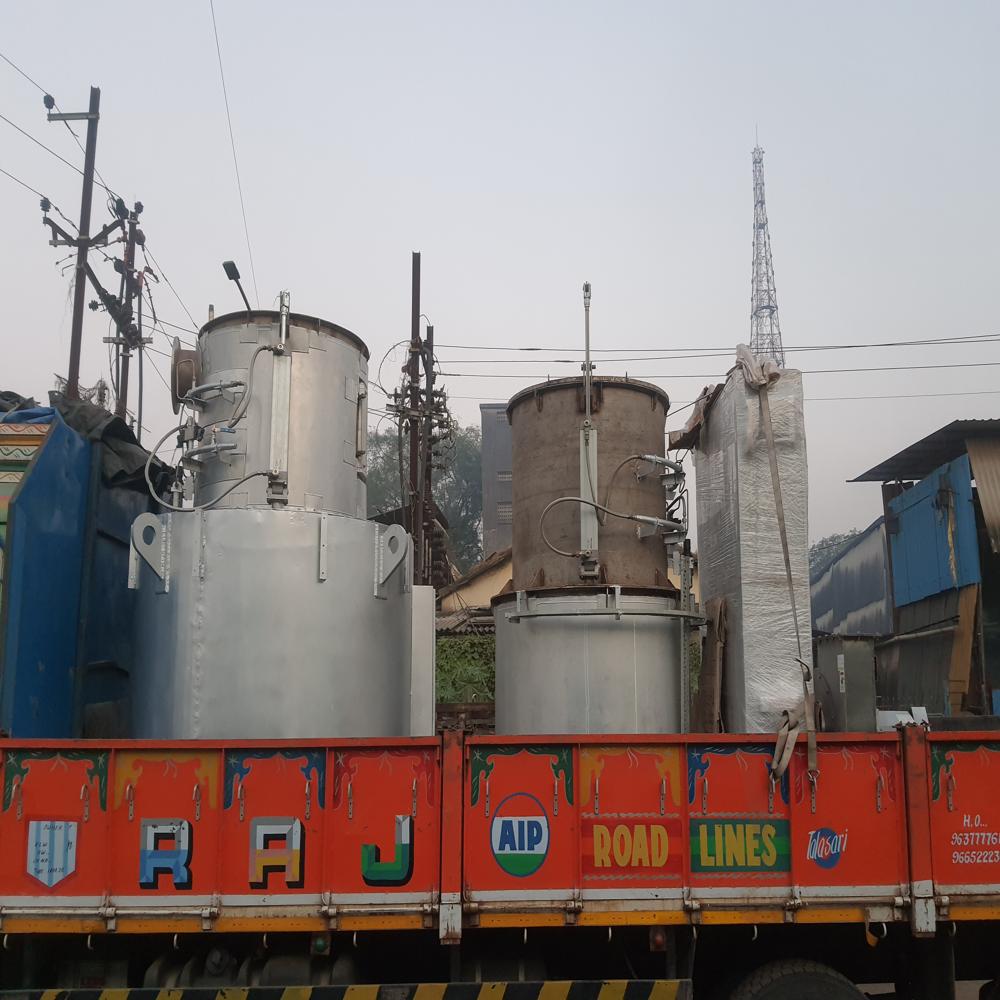

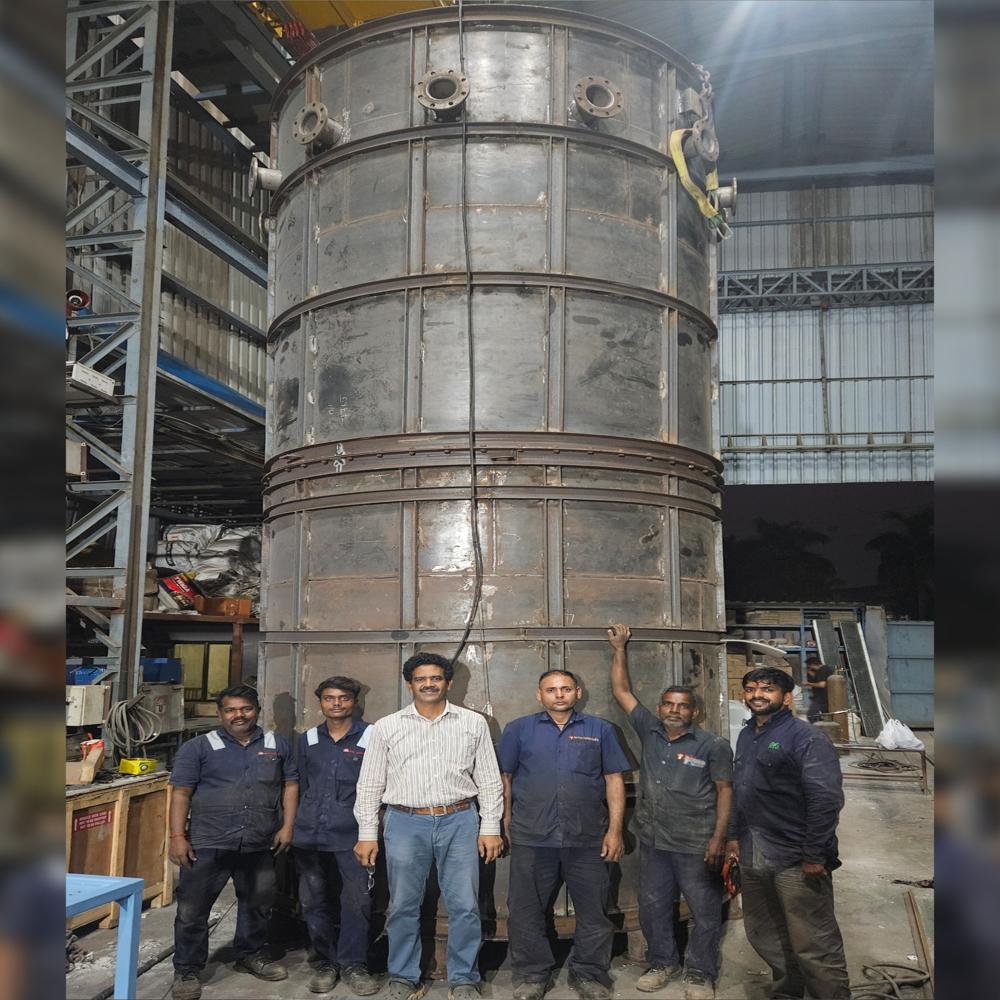

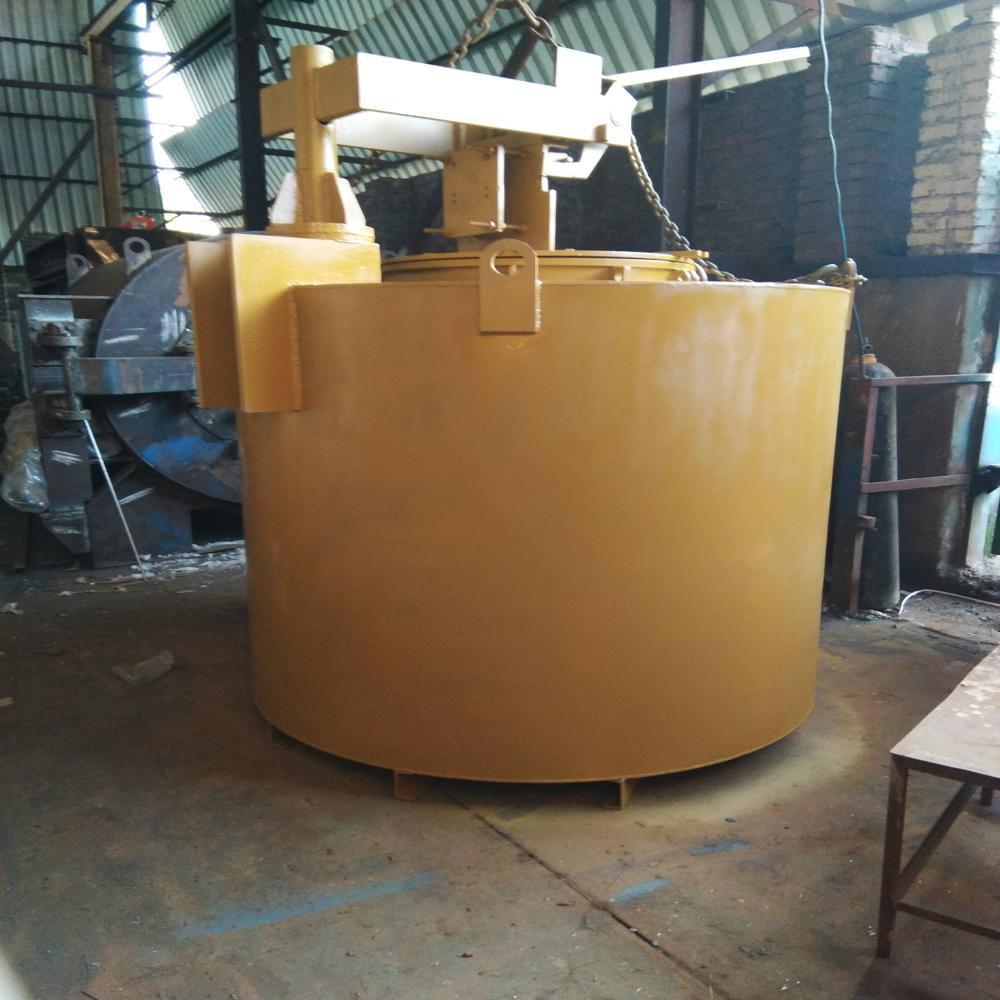

Vertical Furnace manufactured by United Enterprises is a top-loading batch heat treatment furnace designed for long components, with the heating chamber oriented vertically to handle tall or slender parts efficiently.

Brief Description:

Vertical furnaces are widely used for nitriding, bright annealing, carburizing, tempering and stress relieving of long shafts, tubes, gear racks and similar components. The vertical orientation allows uniform suspension or stacking of long parts, simplifying loading and minimising distortion.

We supply vertical furnaces with electric or recuperative gas-fired heating, multi-zone temperature control and our in-house Ammonia Cracker, Endo Gas Generator or Nitrogen Generator for atmosphere control. High-quality refractory and air-recirculation fans ensure tight temperature uniformity.

Each unit is engineered around the customers product length, atmosphere requirement and process need.

Characteristics:

Vertical, top-loading heating chamber
Maximum temperature up to 1200C
Available in electric and recuperative gas-fired versions
Air-recirculation fans for temperature uniformity
Cracked ammonia / endo / nitrogen atmosphere
Low-density high-quality insulation
Sealed retort for atmosphere version
PLC and SCADA-based control

About United Enterprises:

United Enterprises is among the established Vertical Furnace manufacturers in India with over 25+ years of experience in batch heat treatment equipment. We design, manufacture, supply, export and commission tailor-made vertical furnaces across Asia and Europe. Our turnkey approach, in-house gas generator manufacturing and CE / ISO compliance make us a preferred partner for gear, shaft, tube and engineering industries.

FAQs:

Q: Vertical vs pit furnace same thing?

A: Conceptually similar. Pit emphasises a furnace recessed into the floor; vertical emphasises a top-loading design that may sit above floor level.

Q: What atmosphere is common?

A: Cracked ammonia for nitriding and bright annealing; endothermic gas for carburizing; nitrogen for inert protection.

Q: Is automatic loading available?

A: Yes. Overhead crane loading aids, automatic baskets and PLC-controlled cycles are supplied as needed.

High-Precision Thermal Processing

Achieve optimal results in industrial heat treatment, annealing, and glass processing with precise temperature control up to 1200C. Digital PID regulation and advanced thermocouple support guarantee consistent results, while uniform heating technology ensures efficient processing for various materials.

Robust and Energy Efficient Design

Constructed with a stainless steel chamber and high-density ceramic wool insulation, this vertical furnace combines durability with significant energy savings. Uniform heat distribution minimizes power consumption, making it ideal for demanding laboratory or industrial environments that require reliability and efficiency.

Advanced Safety and Customization

The furnace includes overheat protection, an emergency shut-off system, and a digital display for real-time monitoring. Door types, chamber sizes, and operational parameters can be tailored to your specific industrial or laboratory needs, supporting diverse applications with safety and ease of use in mind.

FAQ's of Vertical Furnace:

Q: How does the vertical furnace ensure uniform heating for glass processing and heat treatment?

A: The vertical furnace utilizes high-density ceramic wool insulation and Kanthal/Nichrome heating elements. These components, combined with a precisely controlled PID digital temperature system, provide even heat distribution throughout the chamber, essential for consistent glass processing, annealing, and tempering applications.

Q: What safety features are included in this furnace for industrial operations?

A: This furnace is equipped with overheat protection and an emergency shut-off system. These safety mechanisms are designed to automatically intervene in case of abnormal temperature rises, providing reliable protection for users and preventing damage to both the furnace and processed materials.

Q: When should the digital PID controller be recalibrated?

A: It is recommended to recalibrate the PID digital temperature controller at least once a year or after any extensive maintenance work. Regular calibration ensures sustained temperature accuracy and optimal performance, especially in environments where precision is critical.

Q: Where can this vertical furnace be installed, given its environmental requirements?

A: The furnace should be installed in environments where the ambient temperature does not exceed 40C. Suitable locations include industrial facilities and laboratories with adequate ventilation, stable power supply, and solid flooring to accommodate the unit's weight and size specifications.

Q: What types of thermocouples are compatible, and how do they enhance process monitoring?

A: The furnace supports K, R, and S type thermocouples, which are known for their reliable temperature measurement at high ranges. Using these thermocouples ensures accurate monitoring of chamber temperatures during operations like annealing and heat treatment, contributing to consistent process quality.

Q: How can users benefit from the furnace's customizable sizes and glass capacities?

A: Customizable sizes allow the furnace to fit various operational requirements, from small laboratory applications to large-scale industrial processing. Adjustable glass capacity means users can select models tailored to their production volume, enhancing efficiency and reducing operational costs.

Q: What is the typical process for heating and cooling in this vertical furnace?

A: The furnace heats up to 1200C within 15 to 45 minutes depending on the model. The process involves setting the desired temperature via the PID controller; the chamber then reaches and maintains this temperature uniformly. Cooling times vary based on load and ambient conditions, but efficient insulation supports manageable cooldown periods.
