Bell Type Annealing Furnace

Name: Bell Type Annealing Furnace
Brand: UNITED ENTERPRISES
Price: 2500000.0 INR
Availability: InStock

Price 2500000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Bell Type Annealing Furnace Specification

Feature
High thermal efficiency, Uniform temperature, Fully automatic

Glass Size
Applicable for various glass diameters

Rating
Industrial Grade

Condition
New

Type
Bell Type Annealing Furnace

Usage
Annealing, Heat Treatment

Power
25 kW to 150 kW

Voltage
380 V / 415 V

Size
Customizable as per requirement

Dimensions
Based on capacity and specification

Weight
Varies by model and capacity

Application
Metal annealing, heat treating, glass industry

Fuel Type
Electric / Gas / Oil

Capacity
500 kg to 30 Tons per batch

Heating Element
Nichrome wire / Silicon carbide rods (for electrically heated models)

Loading Method
Manual/Crane loading

Control System
PLC based automated control

Installation Type
Freestanding, Skid mounted

Door Mechanism
Hydraulic/Lifting

Chamber Shape
Cylindrical Bell with Base Plate Arrangement

Cooling System
Forced air/water cooling system available

Surface Finish
Corrosion resistant paint

Material of Construction
Heavy-duty steel and refractory lining

Max Operating Temperature
Up to 1150C

Atmosphere Control
Inert/controlled atmosphere provision

Suitable Materials
Steel, Copper, Brass, Glass, Alloy metals

Safety Features
Over temperature protection, Emergency stop, Interlock systems

Insulation Material
High density ceramic fiber / fire bricks

About Bell Type Annealing Furnace

Bell Type Annealing Furnace manufactured by United Enterprises is a high-quality batch annealing furnace for cold-rolled steel coils, copper coils and wire stacks operating under a controlled reducing atmosphere.

Brief Description:

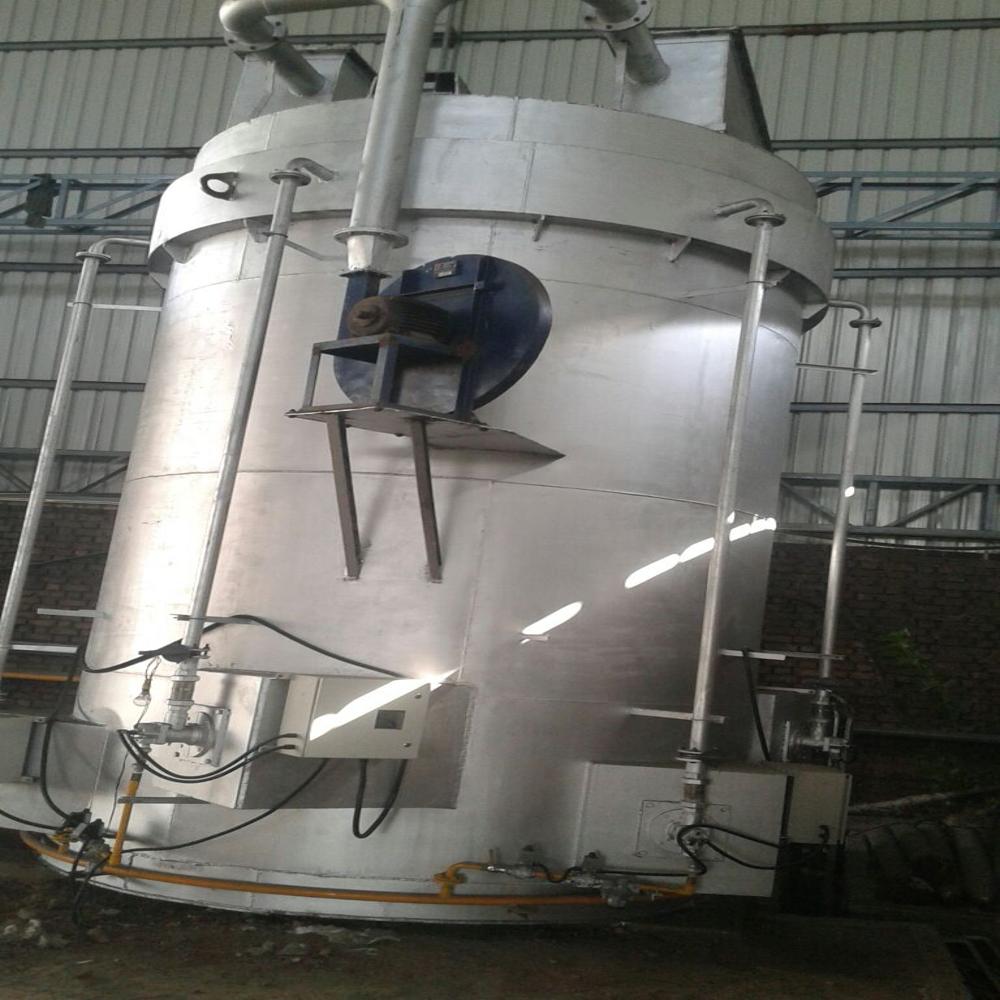

Bell type annealing remains a proven, energy-efficient route for batch annealing of CR strip coils and wire stacks. Our design uses a movable heating bell and stationary base configuration, with one bell capable of serving multiple bases improving overall shop floor productivity.

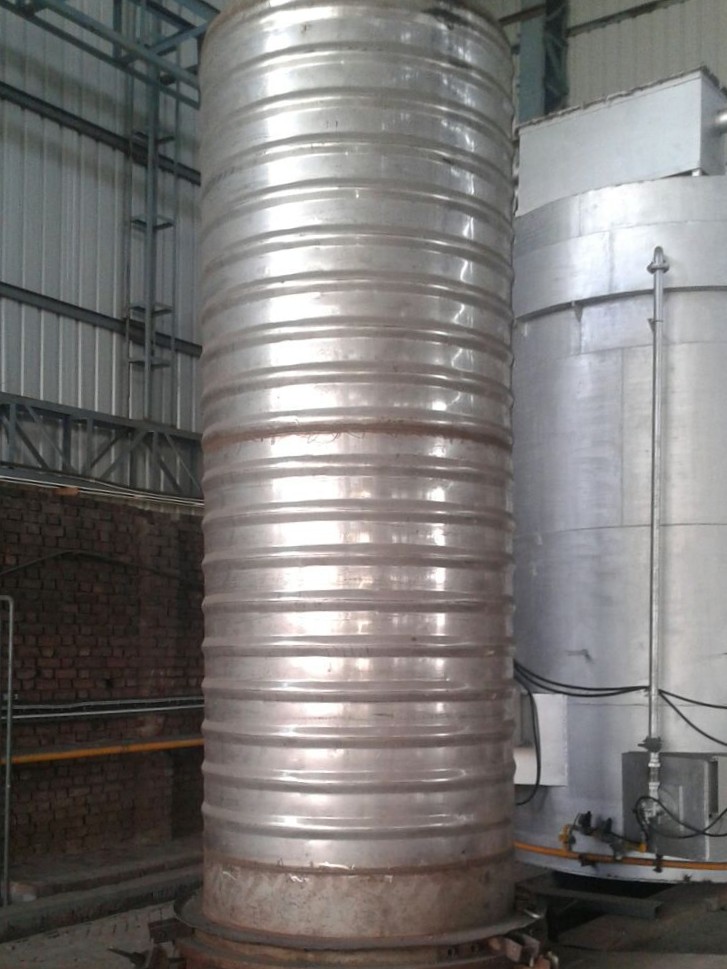

The furnace is fitted with high-quality refractory insulation, recuperative gas-fired or electric heating, and protective muffles to seal the load from combustion atmosphere. Cracked ammonia or pure hydrogen atmosphere is supplied via our in-house gas generators.

Suitable for single-stack and multi-stack configurations, the furnace is engineered around the customers coil weight and capacity targets.

Characteristics:

Maximum temperature up to 1080C
Single-stack or multi-stack designs
Movable bell with multiple stationary bases option
Available in electric and recuperative gas-fired versions
Cracked ammonia or pure hydrogen atmosphere
Outstanding seal between bell and base
Low-density high-quality insulation for heat retention
PLC and SCADA-based control

About United Enterprises:

United Enterprises is a recognised Bell Type Annealing Furnace manufacturer in India with over 25+ years of experience in batch annealing systems. We design, manufacture, supply, export and commission tailor-made bell annealing furnaces across Asia and Europe. With turnkey delivery, in-house gas generator manufacturing and CE / ISO compliant manufacturing, we are a preferred partner for CR strip mills and wire industries.

FAQs:

Q: Cracked ammonia or hydrogen atmosphere?

A: Cracked ammonia is more economical; pure hydrogen gives a brighter, cleaner surface for premium applications.

Q: How many bases per bell are typical?

A: Two to three bases per bell are common, depending on cycle time and shift pattern.

Q: Do you supply revamps of existing bell furnaces?

A: Yes. Refractory, burner, recuperator and automation revamps are routinely undertaken.

Introducing our sizzling Bell Type Annealing Furnace, now at a reduced price and designed for valorous performance in industrial heat treatment. This top-ranking, grand furnace features a robust heavy-duty steel body, refractory lining, and high-density ceramic insulation for unrivaled durability and efficiency. Access comprehensive PLC-based automated control, outstanding temperature uniformity (up to 1150C), and safe, flexible loading via manual or crane options. Experience optimal atmosphere control, versatile heating (electric, gas, or oil), and high thermal efficiency-ideal for annealing steel, copper, brass, alloys, and glass with seamless power, safety, and adaptability.

Advantages & Applications of Bell Type Annealing Furnace

The Bell Type Annealing Furnace offers valorous thermal efficiency and uniform temperature distribution, ensuring optimal results in heat treatment and annealing processes. Suited for grand industrial sites, it is widely applied across steel mills, glass facilities, and alloy processing units. Whether your application media includes inert atmospheres or controlled gases, this system provides reliable and consistent performance, making it a top-ranking choice for metal, copper, brass, and glass applications demanding the highest production standards.

FOB Port, Packaging & Dispatch Details for Bell Type Annealing Furnace

Our grand Bell Type Annealing Furnace is expertly packaged for international transport services, ensuring each unit is securely crated for safety. Samples are dispatched as per our defined sample policy, with full-sized units dispatched via leading transport services. Upon confirmation, your furnace is installed and dispatched from our top FOB ports. Our dispatching protocol ensures timely delivery and proper handling, whether you choose skids or custom freight specification, to safeguard your investment from our warehouse to your facility.

FAQ's of Bell Type Annealing Furnace:

Q: How does the PLC-based automated control system enhance the furnace operation?

A: The PLC-based automated control system enables precise temperature regulation, process automation, and user-friendly operation in the Bell Type Annealing Furnace, enhancing process consistency, safety, and efficiency.

Q: What types of materials can be processed using this bell type annealing furnace?

A: This furnace is suitable for processing steel, copper, brass, glass, and a range of alloy metals, making it versatile for various industrial heat-treatment applications.

Q: When is the use of an inert or controlled atmosphere recommended?

A: An inert or controlled atmosphere is recommended when treating sensitive materials prone to oxidation or contamination, ensuring product quality and preventing undesirable chemical reactions during annealing.

Q: Where can this annealing furnace be installed?

A: The furnace's robust construction and flexible installation types, such as freestanding or skid-mounted, make it suitable for diverse industrial environments including steel plants, foundries, and glass processing units.

Q: What are the primary safety features included with this furnace?

A: Key safety features include over temperature protection, emergency stop buttons, and comprehensive interlock systems to safeguard operations and personnel during usage.

Q: How are units dispatched and what packaging options are available?

A: Units are securely packaged and dispatched from major FOB ports using reliable transport services. Available packaging includes robust crating, skid mounting, and customized options to ensure safe delivery.
