Walk-In Oven

Name: Walk-In Oven
Brand: UNITED ENTERPRISES
Price: 1000000.0 INR
Availability: InStock

Price 1000000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Walk-In Oven Specification

Condition
New

Accuracy
1C

Heating Method
Forced Air Circulation

Heating Capacity
12 kW

Power Source
Electric

Control Mode
Digital Temperature Controller

Type
Walk-In Industrial Oven

Model
Industrial Walk-In Oven

Internal Size
1500 mm x 1200 mm x 1500 mm (W x D x H)

External Size
1800 mm x 1400 mm x 2000 mm (W x D x H)

Volume
2.7 m3

Air Flow
Horizontal or Vertical (adjustable),

Temperature Range
Ambient to 250C

Material
Stainless Steel (Inner Chamber), Powder Coated Steel (Exterior)

Dimension (L*W*H)
1800 mm x 1400 mm x 2000 mm

Power
12 kW

Voltage
380 V / 415 V, 3 Phase

Surface Finish
Powder Coated

Control Panel
Separate Mounted with Indicators and Alarm

Compliance Standard
IS/IEC Standards

Air Circulation Fan
Centrifugal Blower, Dynamically Balanced

Door Type
Double Door with Silicon Gasket

Ambient Operating Range
+5C to +40C

Noise Level
< 72 dB(A)

Insulation
High Density Mineral Wool 100 mm

Maintenance Access
Rear Service Panel

Timer
Digital, Programmable up to 999 Minutes

Shelves/Loading
Removable Trolley Type Racks

Observation Window
Tempered Glass Viewing Window

Safety Features
Over Temperature Protection, Emergency Stop Switch

Weight
Approx. 480 kg

Heating Elements
Nickel-Chromium Heaters

About Walk-In Oven

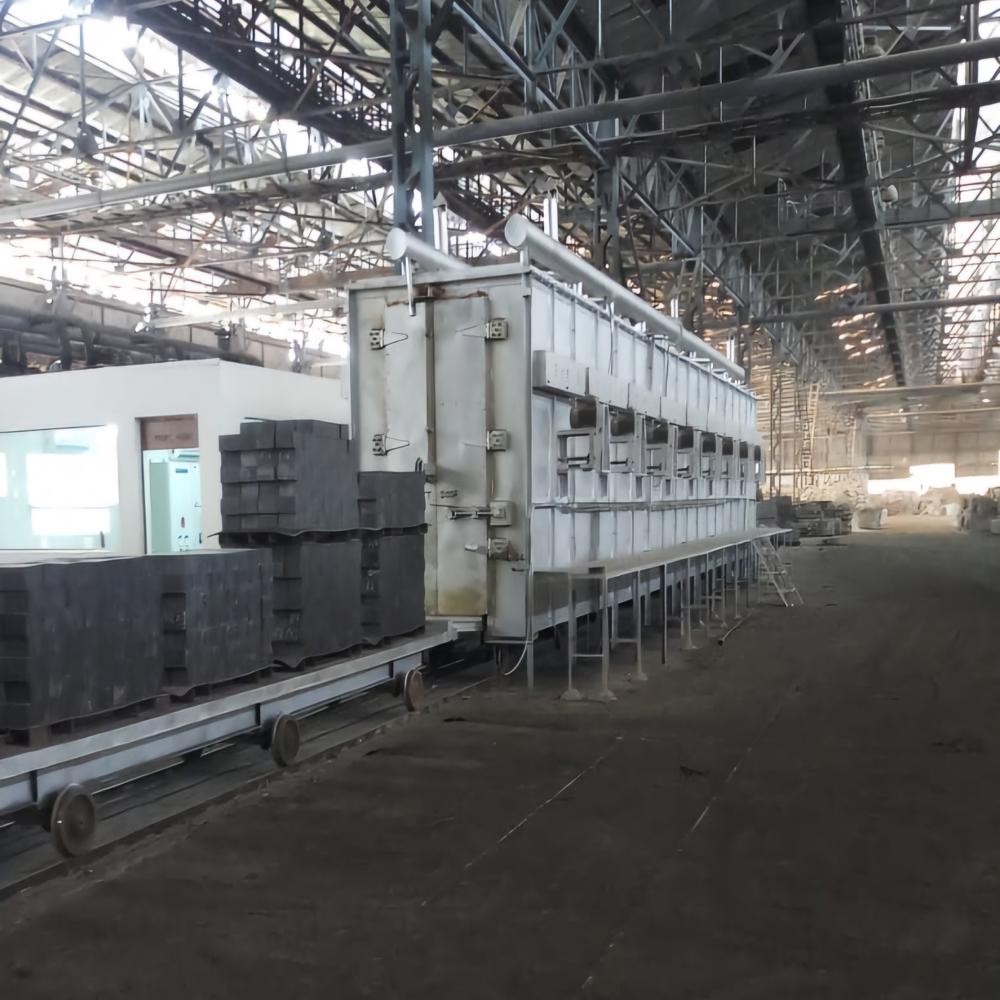

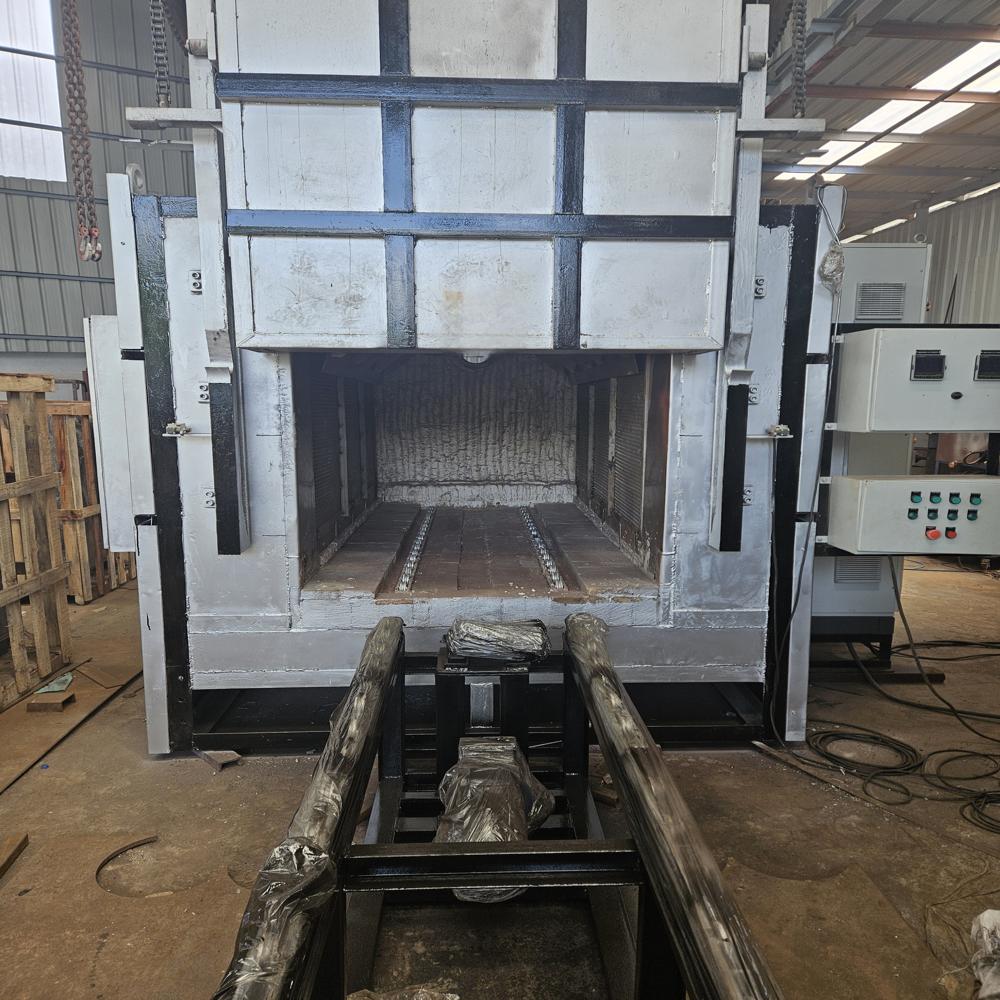

Walk-In Oven manufactured by United Enterprises is a large-format industrial oven designed for big or bulk loads operators or trolleys can literally walk into the oven for loading and unloading.

Brief Description:

Walk-in ovens are widely used in paint shops, electrical industries, fabrication shops and large-product manufacturers for curing, drying, ageing or preheating. The large door, walk-in floor and optional trolley track simplify handling of bulky items.

We design walk-in ovens with multi-zone hot-air recirculation, high-quality insulation, and digital or PLC-based temperature control. Electric, gas-fired (direct and indirect) and steam-heated versions are available.

Each oven is built to the customers product, throughput and shop layout including custom doors, conveyors and exhaust systems where needed.

Characteristics:

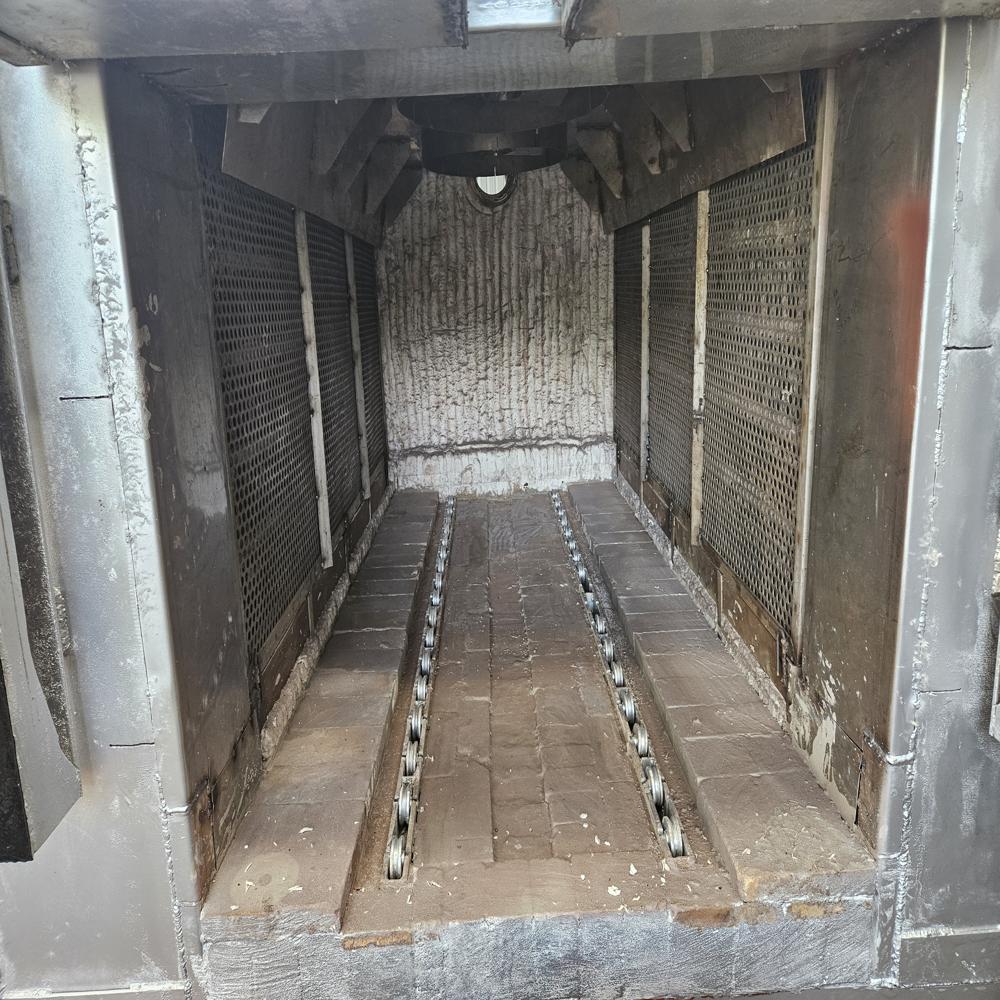

Large walk-in chamber for bulky items
Maximum temperature typically up to 300C400C
Available in electric, gas-fired and steam-heated versions

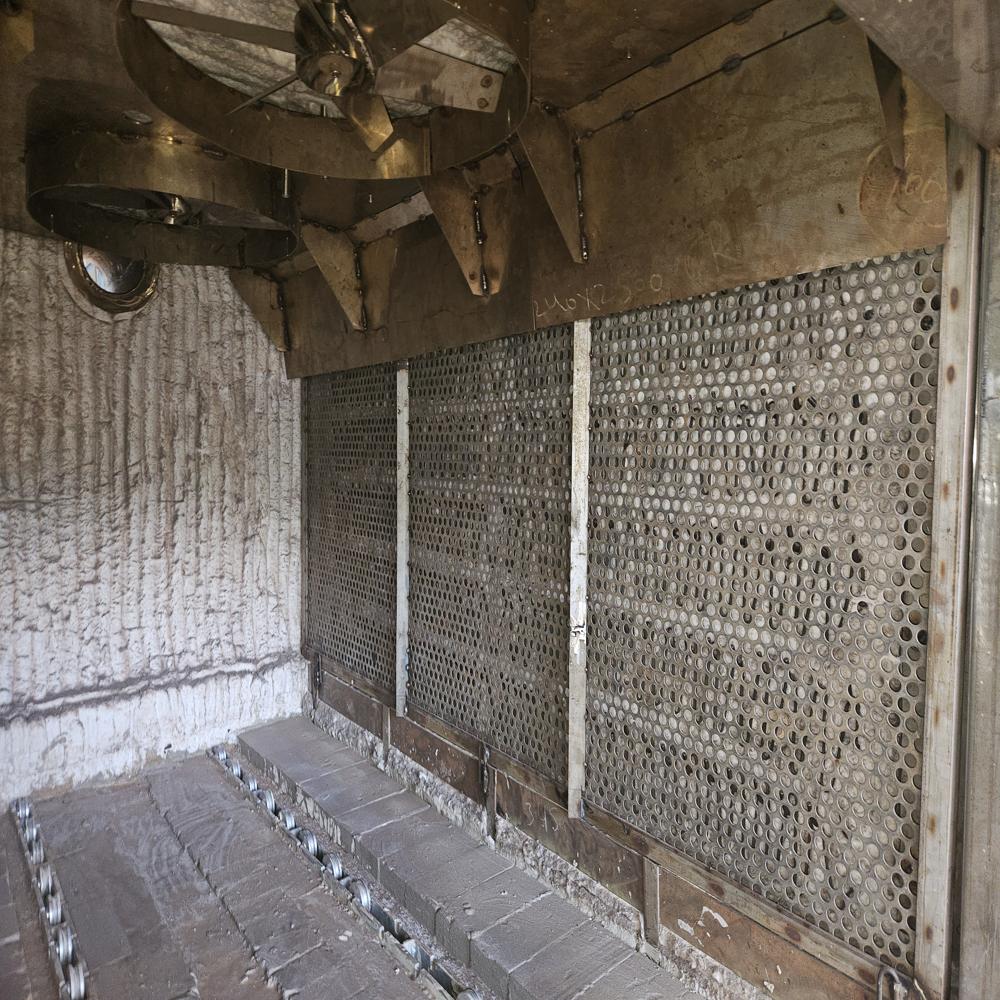

Multi-zone hot-air recirculation for uniform heating
Optional trolley track for easy loading
Low-density high-quality insulation
PLC and digital control with recipe storage
Customizable doors and exhaust systems

About United Enterprises:

United Enterprises is a recognised Walk-In Oven manufacturer in India with over 25+ years of experience in industrial ovens. We design, manufacture, supply, export and commission tailor-made walk-in ovens across Asia and Europe. Our turnkey approach, in-house design and fabrication and CE / ISO compliance serve paint, electrical, fabrication and engineering industries.

FAQs:

Q: How is uniformity maintained in a large oven?

A: Through multi-zone heating, hot-air recirculation and well-designed duct geometry supported by PLC-controlled thermocouples in each zone.

Q: Solvent-laden curing do you offer safety-vented design?

A: Yes. Explosion-proof / safety-vented designs are supplied as per applicable standards for paint and solvent applications.

Q: Can I integrate it with my powder-coating line?

A: Yes. Walk-in ovens can be integrated with conveyors and pretreatment lines as part of a turnkey powder-coating setup.

Optimized for Industrial Versatility

The Walk-In Industrial Oven accommodates a wide array of thermal processing tasks, from drying and curing to heat treatment. Its meticulously engineered air circulation, durable stainless steel chamber, and adjustable shelving make it suitable for numerous industries, including manufacturing, research, and fabrication. The internal capacity of 2.7 m3 and high heating power allow for efficient processing of large batches.

Advanced Safety and Control

Operator safety remains paramount with features such as over-temperature protection, an emergency stop switch, and a clearly organized, separate control panel. Real-time monitoring is facilitated by digital temperature controls, programmable timers, and an alarm system, all designed to maintain process accuracy. The observation window allows visual inspections without interrupting the cycle.

FAQ's of Walk-In Oven:

Q: How does the forced air circulation in this walk-in oven contribute to uniform heating?

A: The oven utilizes a dynamically balanced centrifugal blower for forced air circulation, ensuring even heat distribution throughout the chamber. This design minimizes temperature gradients, allowing all items inside to experience consistent heating and optimal processing results.

Q: What safety measures are incorporated in the oven to protect users and products?

A: Key safety features include over-temperature protection and an emergency stop switch. The oven also features a separate control panel with alarms and indicator lights to alert operators to any irregularities, all compliant with IS/IEC standards, ensuring safe operation even during intensive processes.

Q: When should I use the programmable timer, and what is its capacity?

A: The digital timer allows users to set processing times up to 999 minutes, providing flexibility for a range of thermal treatments. It is ideal for processes requiring precise timing, such as controlled drying, curing, or heat-treating cycles, ensuring repeatable and consistent results.

Q: Where are maintenance activities performed on the oven?

A: Maintenance can be safely carried out through the rear service panel, which offers convenient access to critical components. This design reduces downtime, facilitates regular inspections, and simplifies repairs without interrupting the oven's main operating area.

Q: What is the benefit of using high-density mineral wool insulation in this oven?

A: High-density mineral wool insulation with a thickness of 100 mm significantly enhances energy efficiency by minimizing heat loss. It also helps maintain stable internal temperatures and reduces surface temperatures on the exterior, increasing both safety and performance.

Q: How is product loading and unloading handled in this oven model?

A: The oven features removable trolley-type racks, allowing for convenient loading and unloading of products. This trolley system is particularly beneficial when handling bulky or heavy items, streamlining workflow and minimizing manual handling risks.

Q: What materials are used in the construction of the inner and outer oven chambers, and why?

A: The inner chamber is crafted from stainless steel for superior corrosion resistance and durability, ensuring long-term performance even under high temperatures. The exterior is constructed of powder-coated steel, delivering both strength and an attractive, easy-to-clean surface.
