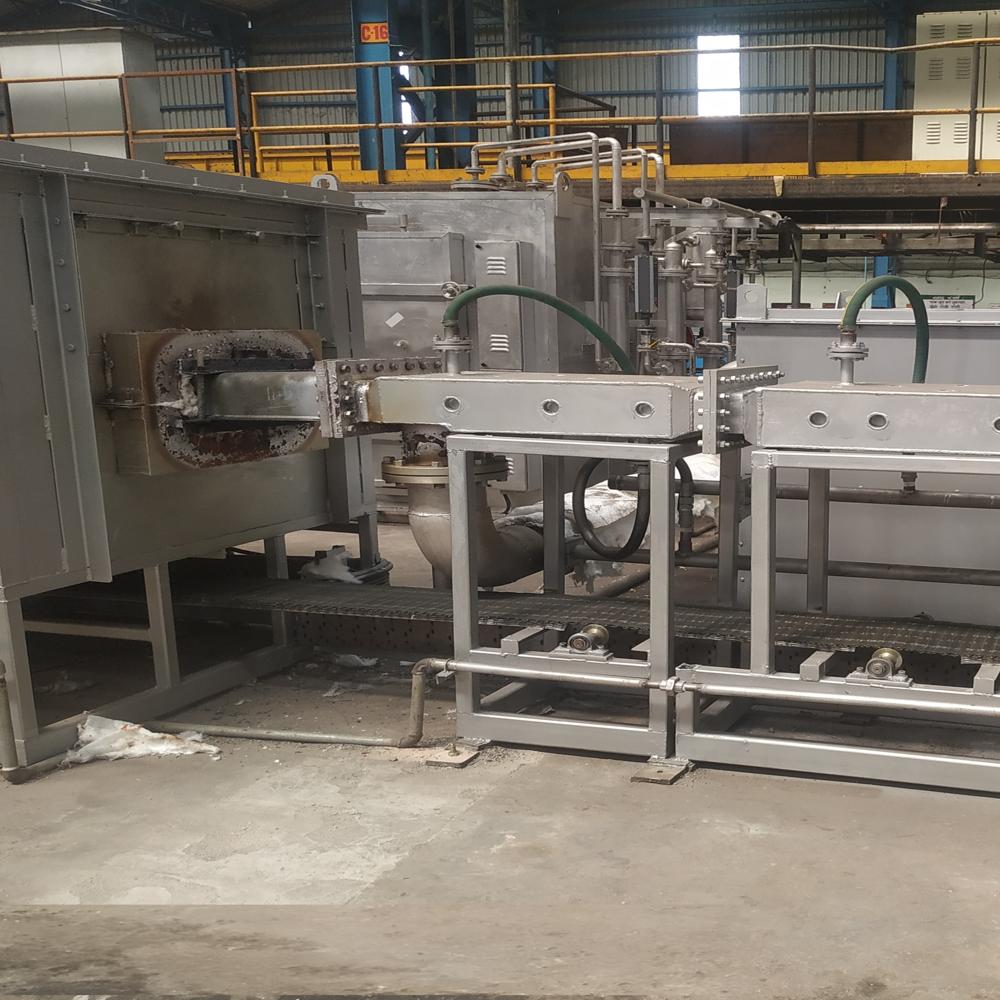

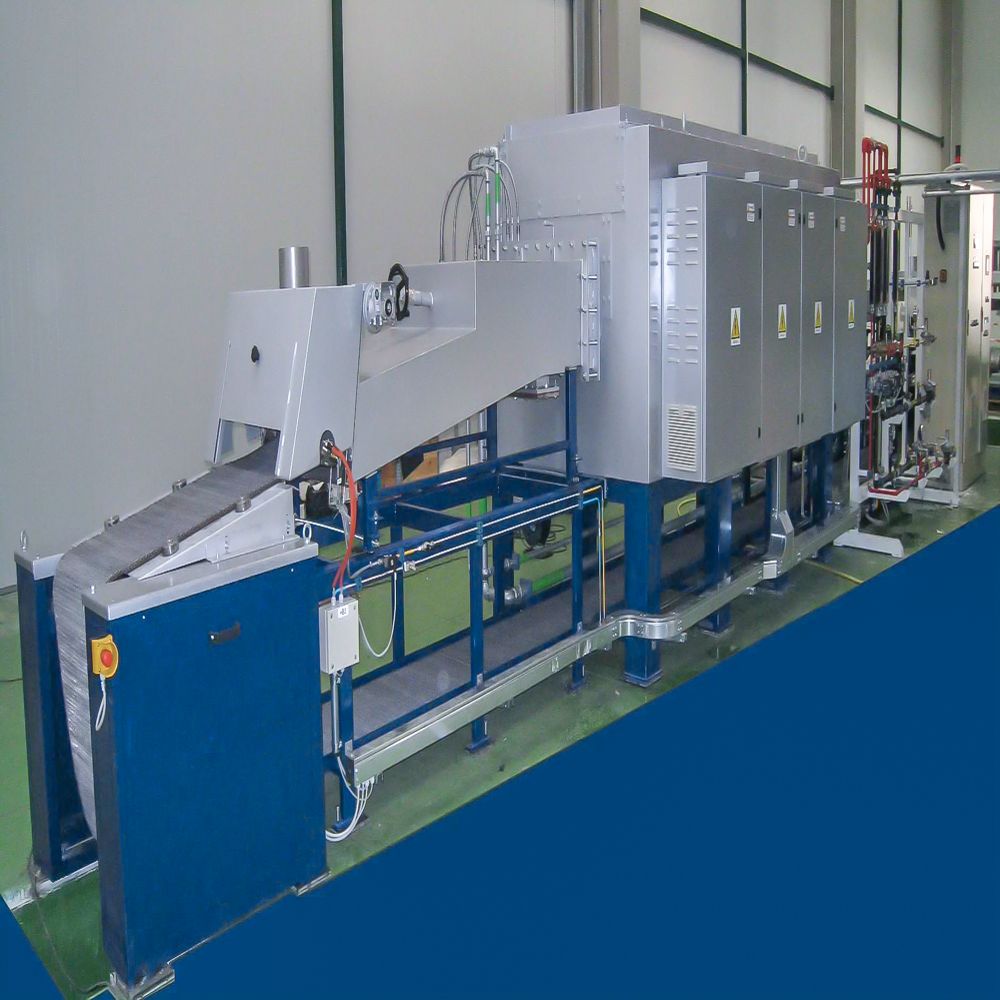

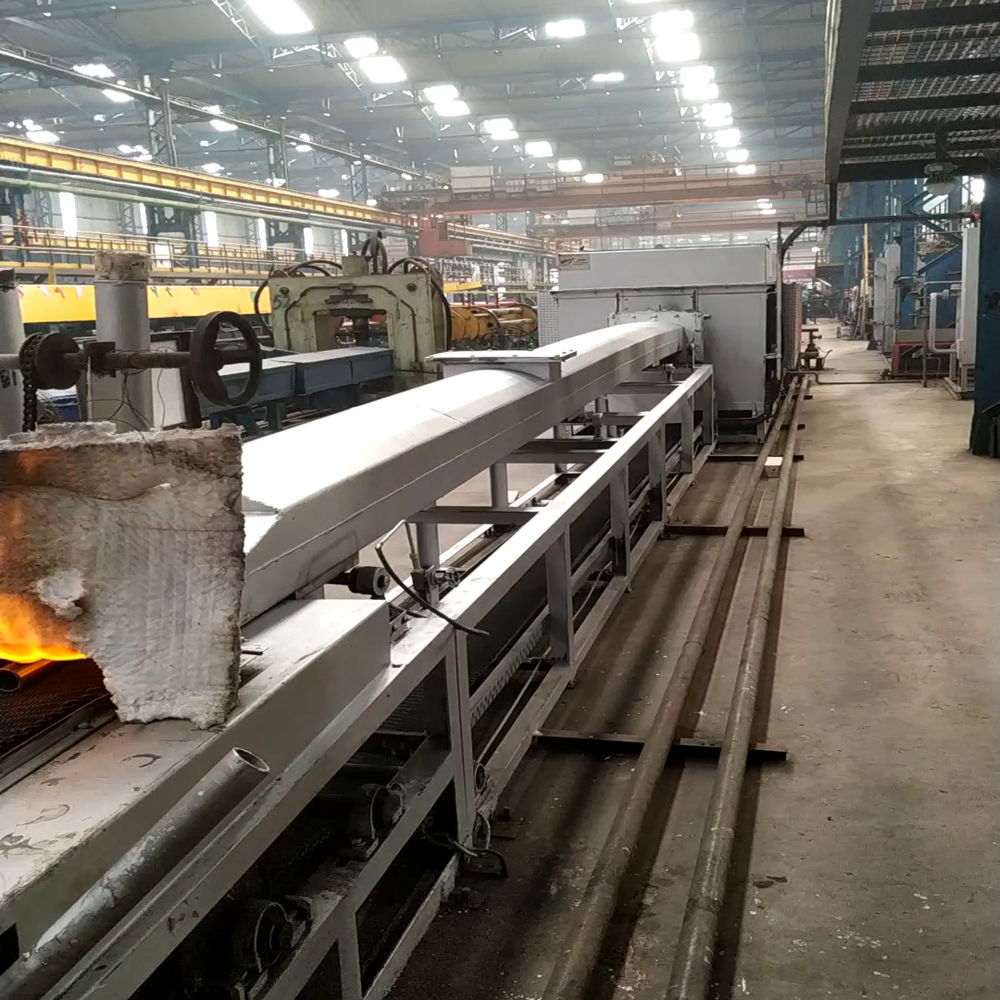

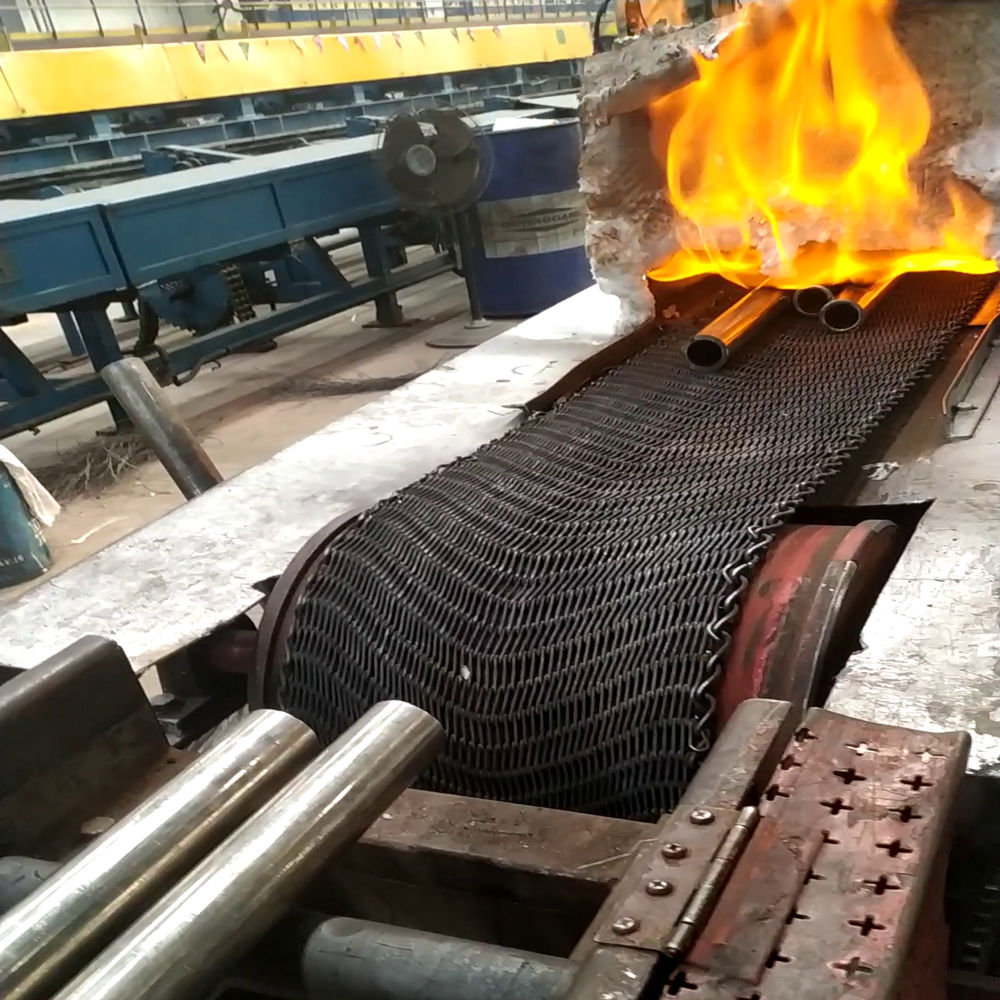

Walking Hearth Furnace

Name: Walking Hearth Furnace
Brand: UNITED ENTERPRISES
Price: 9000000.0 INR
Availability: InStock

Price 9000000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Walking Hearth Furnace Specification

Rating
Industrial Grade

Feature
High thermal efficiency, uniform heating, automatic control system

Condition
New

Type
Walking Hearth Furnace

Usage
Industrial heating, reheating and heat treatment

Power
Electric/ Gas/ Oil

Voltage
380-440 V, 3 Phase

Size
Customized as per client requirement

Dimensions
As per customer specification

Weight
As per design

Application
Metal forging, heat treatment, hardening, annealing

Fuel Type
Gas/Oil/Electric

Capacity
2 - 100 Tons

Max Operating Temperature
Upto 1300C

Surface Finish
Painted/ Powder coated

Door Type
Hydraulic or motorized

Insulation
Ceramic fiber/Fire bricks

Furnace Movement Drive
Electric motor-driven walking mechanism

Automation Grade
Semi-automatic & Fully Automatic options

Cooling System
Forced air/Water cooled options

Heating Chamber Material
High quality refractory lining

Safety
Over-temperature protection, emergency stop

Heat Recovery System
Available upon request

Chamber Capacity
Customizable

Controls
Digital temperature & process controllers

About Walking Hearth Furnace

Walking Hearth Furnace manufactured by United Enterprises is a semi-continuous heat treatment furnace where the load moves forward across a moving hearth, ideal for handling heavy or long stock without skid marking.

Brief Description:

In a Walking Hearth Furnace, the entire hearth section steps forward in a controlled lift-advance-lower motion, carrying the load from charge to discharge end. This avoids the contact damage seen in pusher designs and is suitable for billets, slabs, plates and large forging blanks.

We supply Walking Hearth Furnaces with recuperative gas-fired or electric heating, multi-zone temperature control, and high-density alloy hearth tiles. The mechanical drive and seals are designed for high-temperature service and minimum maintenance.

Each furnace is built around the customers stock weight, production rate and downstream process needs.

Characteristics:

Semi-continuous walking hearth motion for heavy loads
Maximum temperature suitable for reheating and heat treatment
Recuperative gas-fired or electrical heating
Multi-zone heating for precise ramp/soak control
Heavy-duty alloy hearth components for long life
Low-density refractory backup for efficient insulation
Optional atmosphere control with gas generators
Fully automated SCADA system with production reporting

About United Enterprises:

United Enterprises is among the top furnace manufacturers in India with over 25+ years of experience in walking-type and continuous reheating furnaces. We design, manufacture, supply, export and commission tailor-made Walking Hearth Furnaces across Asia and Europe. As a turnkey furnace solution provider since 1998, we serve steel, forging, automotive and defence sectors with CE and ISO compliant equipment.

FAQs:

Q: How is a walking hearth furnace different from a walking beam furnace?

A: In a walking beam furnace, only beams between fixed skids move; in a walking hearth furnace, the entire hearth steps forward. Walking hearth is preferred where skid marks must be avoided completely.

Q: Which industries commonly use this furnace?

A: It is widely used in steel rolling mills, large forging plants, defence ordnance factories and plate-heating applications.

Q: Do you provide remote diagnostics?

A: Yes. Our SCADA architecture supports secure remote access for diagnostics and troubleshooting, as per customer IT policy.

Explore the extraordinary capabilities of the Walking Hearth Furnace, a new release engineered for the heroic demands of industrial heating, reheating, and heat treatment. Unlock resplendent performance with a high-quality refractory lining and a maximum operating temperature of up to 1300C. Valorous in efficiency, this furnace is available in semi-automatic and fully automatic variants. Featuring digital controls, hydraulic or motorized doors, robust insulation, and customizable chamber capacities, it offers a safe, energy-efficient solution tailored for metal forging and processing. Step into a new era of industrial precision.

Versatile Industrial Solution for Metal Processing

Walking Hearth Furnaces are extensively used in metal forging, heat treatment, hardening, and annealing across various industries. Frequently adopted as a central heating solution, these furnaces are favored by manufacturers, metalworkers, and industrial heat treatment plants. By delivering uniform heating and enhanced process control, companies use them to achieve consistent, high-quality results in demanding environments where reliability and thermal efficiency are pivotal.

Reliable Supply Ability & Efficient Transaction Handover

Our supply capacity for Walking Hearth Furnaces is robust, ensuring timely fulfilment of bulk orders worldwide. Flexible payment terms are offered to facilitate smooth transactions. Upon order confirmation and successful charge processing, the equipment is expertly handed over to clients, ready for integration. Samples and technical consultations may be provided on request to support purchasing decisions, with every handover reinforcing our commitment to client satisfaction and operational excellence.

FAQ's of Walking Hearth Furnace:

Q: How does the Walking Hearth Furnace enhance heat treatment processes?

A: The Walking Hearth Furnace ensures uniform heating and precise temperature control, which results in consistent and efficient heat treatment, making it ideal for metal forging, hardening, and annealing applications.

Q: What materials are used in the construction of the furnace's heating chamber?

A: The heating chamber is constructed using high-quality refractory lining, supported by ceramic fiber or fire brick insulation to ensure remarkable heat resistance and maximize thermal efficiency.

Q: When should a company opt for a fully automatic over a semi-automatic furnace?

A: Fully automatic versions are best suited for facilities prioritizing minimal manual intervention and seamless process automation, while semi-automatic models offer reliable performance where operator involvement is feasible.

Q: Where can the Walking Hearth Furnace be installed?

A: These furnaces are designed for installation in various industrial settings, such as metalworking plants, forging facilities, and heat treatment workshops, with sizes and capacities customized per client requirements.

Q: What safety features are included in the Walking Hearth Furnace?

A: Key safety features include over-temperature protection and emergency stop mechanisms, safeguarding both personnel and production processes during operation.

Q: How does the heat recovery system benefit users?

A: The optional heat recovery system can significantly improve energy efficiency and help reduce fuel costs by capturing and reusing thermal energy during operation.
