Conveyor Furnace

Name: Conveyor Furnace
Brand: UNITED ENTERPRISES
Price: 9000000.0 INR
Availability: InStock

Price 9000000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Conveyor Furnace Specification

Rating
High Efficiency

Feature
Automatic Temperature Control, Sturdy Construction, Energy Efficient, Precise Conveyor Speed Adjustment

Glass Size
Upto 1200 mm width

Condition
New

Type
Continuous Conveyor Furnace

Usage
Industrial

Power
12 kW - 100 kW (Optional as per size)

Voltage
380/415 V, 3 Phase, 50 Hz

Size
Customizable as per requirement

Dimensions
As specified by client

Weight
Approx. 2-6 tons depending on size

Application
Heat Treatment, Annealing, Sintering, Hardening

Fuel Type
Electric / Gas Fired

Capacity
300 kg/hr - 2000 kg/hr

Installation
On site by manufacturer

Safety Features
Auto cutoff, Overload & Overheat Protection, Emergency Stop

Conveyor Speed
Adjustable 20 mm/min to 250 mm/min

Heat Uniformity
5C throughout chamber

Max Temperature
1200C

Cooling Zone
Integrated Forced Air and Water Cooling

Heating Element
Nickel Chrome or Silicon Carbide

Chamber Material
Premium Quality Stainless Steel Insulated Walls

Insulation Thickness
150 mm high-density ceramic fiber

Loading/Unloading
Manual or Automatic as per design

Service Support
Available PAN India

Noise Level
<75 dB(A)

Control System
PLC Based Digital Control Panel

Conveyor Material
Heat Resistant Alloy Steel

About Conveyor Furnace

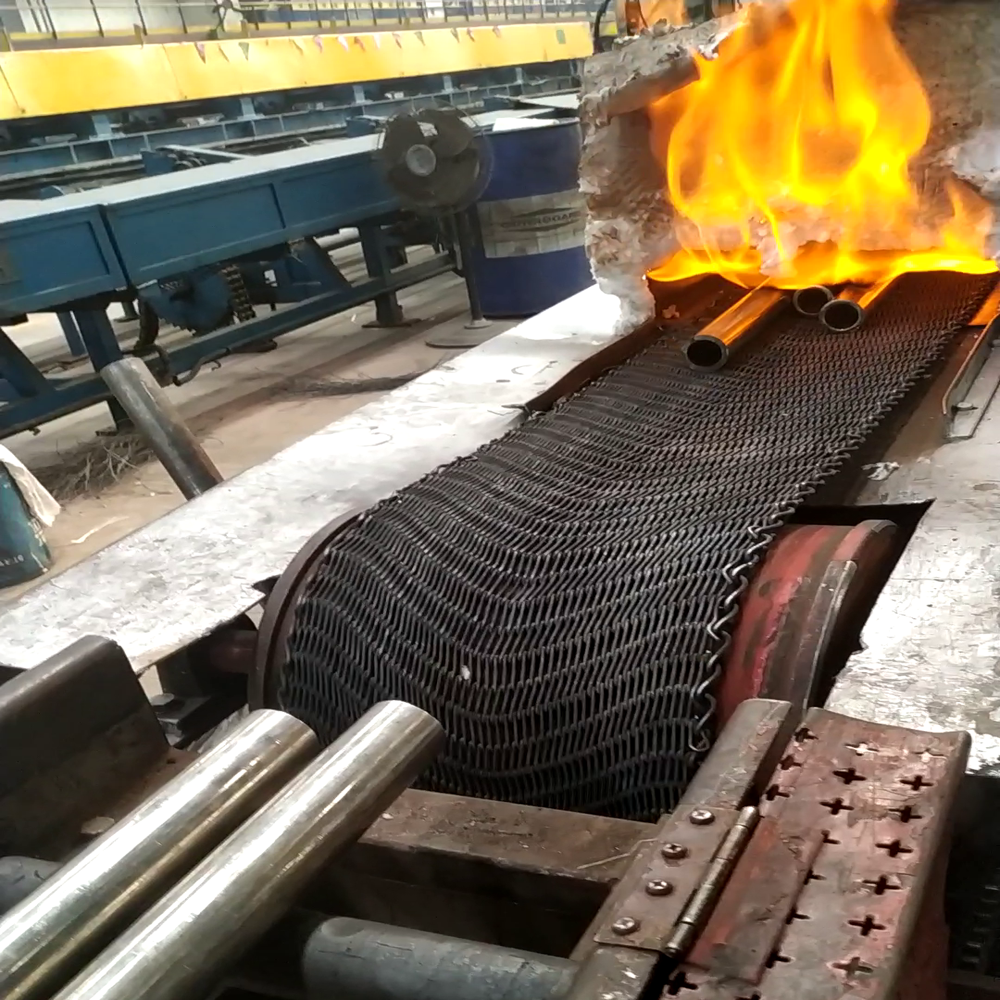

Conveyor Furnace manufactured by United Enterprises is a continuous heat-processing furnace where the load travels through the heating chamber on a conveyor typically mesh belt, cast link belt, roller or chain depending on the application.

Brief Description:

Conveyor furnaces are widely used in heat treatment, brazing, sintering, curing and drying applications where steady, high-volume production is required. We design conveyor furnaces in mesh belt, cast link belt, chain and roller variants to suit different load characteristics.

All units are engineered for accurate temperature control, low energy consumption and long operational life. Optional atmosphere control with our own Ammonia Cracker, Endo Gas Generator or Nitrogen Generator is integrated as needed.

From small lab-scale conveyors to production-grade industrial lines, every unit is custom-built around the customers product, throughput and process.

Characteristics:

Continuous conveyor-based heat processing
Mesh belt / cast link belt / roller / chain options
Maximum temperature up to 1200C as per design
Available in electric and gas-fired heating
Atmosphere control with in-house gas generators
Multi-zone temperature control with PLC and SCADA
Low-density high-quality insulation for energy savings
Custom design for capacity, dwell time and belt width

About United Enterprises:

United Enterprises is a leading industrial furnace manufacturer in India with over 25+ years of experience in conveyor-based heat treatment systems. We design, manufacture, supply, export and commission conveyor furnaces of all major belt types across Asia and Europe. Our turnkey solutions, in-house design and fabrication, and CE / ISO compliant manufacturing make us a preferred partner for automotive, hardware, ceramic and electronics industries.

FAQs:

Q: Which belt type is right for my product?

A: Mesh belt for small light parts, cast link belt for heavier or abrasive parts, chain or roller for very heavy fixtures. We help you decide based on your component drawings and throughput.

Q: Can the same conveyor furnace handle multiple recipes?

A: Yes. Recipes are stored in the SCADA system; operators can switch products with minimal changeover time.

Q: What about safety features?

A: We provide over-temperature protection, gas leak alarms, emergency stop, interlocked doors and SCADA-based audit trails as standard.

Shop Now for a famed Conveyor Furnace, renowned for its masterful engineering and breathtaking performance. Designed with premium quality stainless steel insulated walls and advanced PLC control, this affordable industrial furnace achieves a max temperature of 1200C. Featuring high-density ceramic fiber insulation and adjustable conveyor speed, it ensures uniform heating within 5C. Benefit from integrated forced air and water cooling, sturdy heat-resistant alloy steel conveyors, and built-in safety features. Now on sale-customizable sizes, energy efficient operation, noise level under 75 dB(A), and robust service support PAN India!

Conveyor Furnace: Usage and Application Guide

This Conveyor Furnace is primarily used for industrial heat treatment, annealing, sintering, and hardening processes. It operates through both electric and gas-fired systems, with a continuous conveyor for seamless processing. Direction of use involves manual or automatic loading/unloading, adjustable conveyor speed (20-250 mm/min), and precise digital control to ensure targeted results. Suitable for handling materials of up to 1200 mm width, its application method guarantees consistent product quality and efficiency for demanding industrial needs.

Certifications, Stock, and Packaging for Conveyor Furnaces

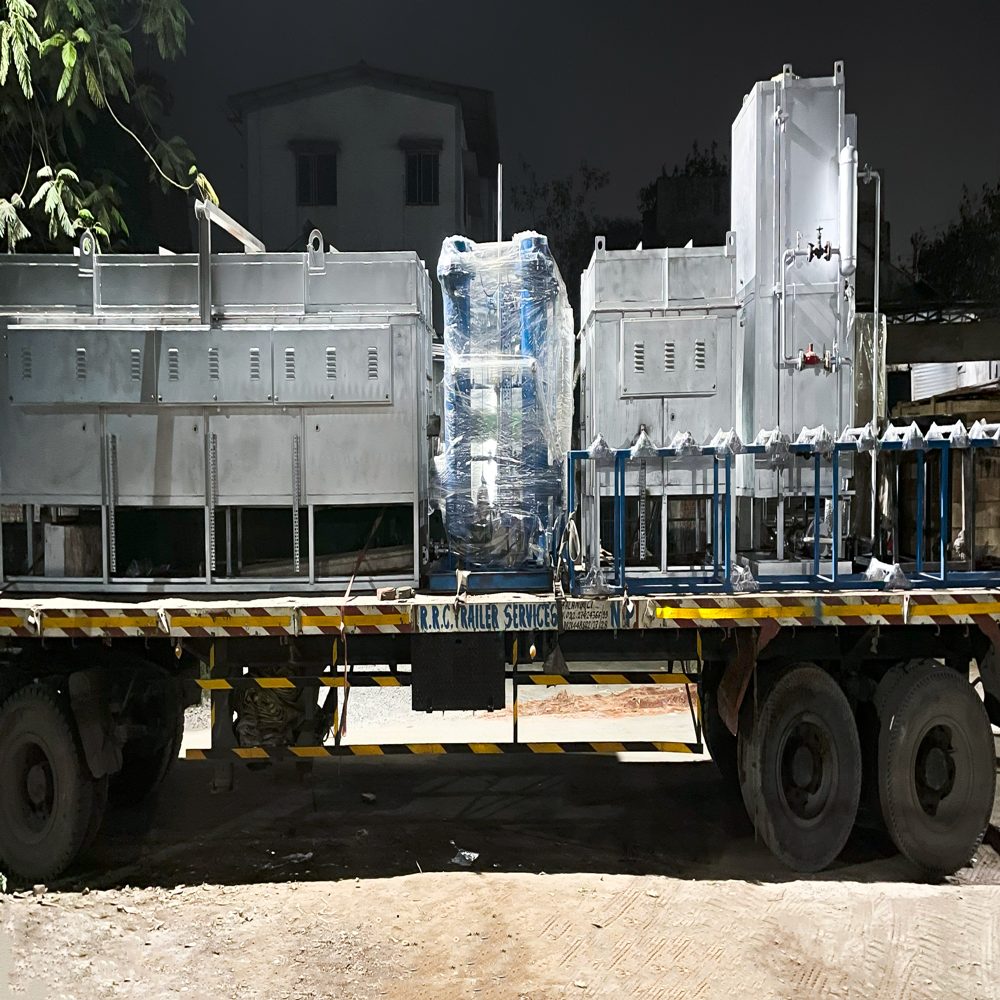

Our Conveyor Furnaces come equipped with industry certifications, underscoring their high quality and compliance. Stock is ready for immediate domestic mar delivery at an attractive sale price. Samples are available upon request to ensure customer confidence before purchase. Furnaces are carefully packaged in sturdy, export-grade materials for secure transportation. Take advantage of current stock availability-buy now and secure superior industrial heating technology backed by reliable after-sales support.

FAQ's of Conveyor Furnace:

Q: How does the Conveyor Furnace ensure precise temperature control?

A: The Conveyor Furnace features a PLC-based digital control panel and high-density ceramic fiber insulation, maintaining temperature uniformity within 5C throughout the chamber for consistent results.

Q: What are the main applications of this Conveyor Furnace?

A: This furnace is ideal for industrial processes such as heat treatment, annealing, sintering, and hardening, accommodating materials up to 1200 mm wide.

Q: Where can installation and service support be provided?

A: Installation is handled on-site by the manufacturer, with comprehensive service support available PAN India for continued reliable operation.

Q: What safety features are integrated into the furnace?

A: Safety is ensured through auto cutoff, overload and overheat protection, an emergency stop, and precise digital monitoring for safe and efficient operation.

Q: How is the furnace packaged for delivery?

A: Each furnace is securely packaged using export-grade materials to prevent damage in transit, ensuring safe arrival at your facility.

Q: What is the process for adjusting conveyor speed?

A: Conveyor speed can be seamlessly adjusted between 20 mm/min to 250 mm/min, allowing you to tailor the heating process to specific application requirements.
