Electric Resistance Heating Furnace

Name: Electric Resistance Heating Furnace
Brand: UNITED ENTERPRISES
Price: 1500000.0 INR
Availability: InStock

Price 1500000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Electric Resistance Heating Furnace Specification

Rating
High Efficiency

Feature
Uniform heating, precise temperature control, energy saving

Condition
New

Type
Electric Resistance Heating Furnace

Usage
Industrial, Laboratory

Power
Up to 100 kW

Voltage
220V-440V

Size
Customizable

Dimensions
As per requirement

Weight
Variable (Depends on model)

Application
Heat treatment, annealing, sintering

Fuel Type
Electric

Capacity
Up to 1000 kg

Door Type
Front loading, heavy duty

Chamber Material
High-grade refractory ceramic fiber

Working Temperature
Up to 1200C

Safety Feature
Overheat protection, auto cut-off

Installation
Floor mounted

Heating Element Material
Kanthal/Nichrome

Power Supply Frequency
50/60 Hz

Display
Digital LED/Touch

Controller Type
Digital PID Controller

Temperature Accuracy
1C

Insulation
Double insulation for low heat loss

Cooling Type
Natural air cooling

About Electric Resistance Heating Furnace

Electric Resistance Heating Furnace manufactured by United Enterprises is a precision electric-heated furnace where heat is generated by passing current through resistance heating elements clean, accurate and well-suited to a wide range of industrial and laboratory applications.

Brief Description:

Electric resistance heating remains the most common and most reliable form of electric heating for industrial furnaces. Our Electric Resistance Heating Furnaces use Kanthal A-1, SiC or MoSi2 elements depending on temperature, with multi-zone control for tight uniformity.

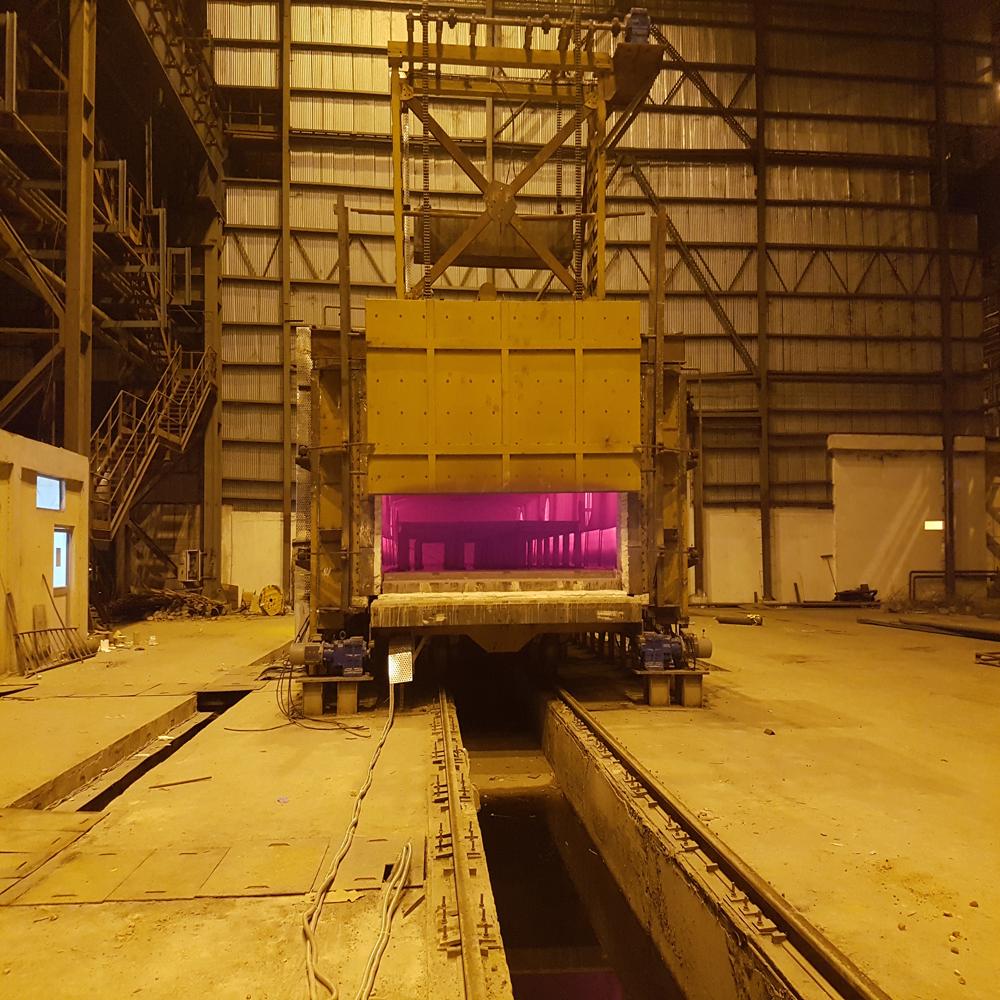

Box, bogie, bell, pit, pusher, mesh belt, tube, muffle and laboratory configurations are available. Sealed retort versions for inert, reducing or vacuum operation are also supplied.

Each furnace is engineered around the customers process, throughput and product range.

Characteristics:

Electric resistance heating with multi-zone control
Maximum temperature up to 1700C
Box / bogie / bell / pit / pusher / belt / tube configurations
Imported heating elements (Kanthal A-1 / SiC / MoSi2)
Multi-zone PLC and SCADA temperature control
Low-density high-quality insulation
Sealed retort version for atmosphere operation
Operator-friendly design with safety features

About United Enterprises:

United Enterprises is among the recognised Electric Resistance Heating Furnace manufacturers in India with over 25+ years of experience in industrial and laboratory furnaces. We design, manufacture, supply, export and commission tailor-made Electric Resistance Heating Furnaces across Asia and Europe. Our turnkey approach, in-house design and CE / ISO compliant manufacturing serve heat treatment, sintering, brazing, research and engineering industries.

FAQs:

Q: Resistance or induction heating?

A: Resistance heating is more uniform and easier to control; induction is faster but more localised.

Q: Which heating element life can I expect?

A: With proper sizing and operation, Kanthal A-1 typically gives 57 years; SiC and MoSi2 vary based on use.

Q: Do you supply heating element renewals?

A: Yes. We supply replacement elements and undertake renewal contracts.

Efficient and Reliable Heating Solutions

Engineered for both industrial and laboratory environments, this electric resistance furnace excels in uniform heating with precise temperature control up to 1200C. Its high efficiency and energy-saving design make it a cost-effective option for demanding heat treatment applications.

Advanced Safety and Control Features

The furnace incorporates double insulation to reduce heat loss, and comes equipped with essential safety features such as overheat protection and auto cut-off mechanisms. A digital PID controller provides exceptional temperature accuracy, supported by an easy-to-read digital LED or touch display.

Customizable for Diverse Needs

Whether you require a compact laboratory model or a high-capacity industrial unit, the furnace can be customized to your specific chamber size, power requirements, and voltage specifications. This flexibility ensures optimal integration into various operational settings.

FAQ's of Electric Resistance Heating Furnace:

Q: How does the digital PID controller enhance temperature accuracy in this furnace?

A: The digital PID controller continuously monitors and adjusts the furnace's heating input, maintaining the set temperature within a tight accuracy of 1C. This ensures consistent heat treatment results and eliminates unwanted temperature fluctuations.

Q: What types of applications are suitable for this electric resistance heating furnace?

A: This furnace is ideal for industrial and laboratory use, including heat treatment, annealing, and sintering of materials. Its high-temperature range and uniform heating make it suitable for both research and production environments.

Q: When should I choose Kanthal or Nichrome heating elements?

A: Kanthal is preferred for longer lifespan and higher temperature stability, while Nichrome offers excellent resistance and quick heat-up. The choice depends on your temperature requirements and intended usage frequency.

Q: Where should the furnace be installed for optimal performance and safety?

A: The furnace is designed for floor mounting in well-ventilated industrial or laboratory spaces. Ensure that the installation area accommodates electrical supply (220V-440V), supports unit weight, and adheres to local safety regulations.

Q: What is the process of controlling and monitoring the furnace during operation?

A: Once powered, operators set the required temperature using the digital PID controller interface. The LED or touch display provides real-time feedback, while the controller maintains accuracy. Safety features like overheat protection and auto cut-off operate automatically.

Q: How does double insulation benefit the furnace's operation?

A: Double insulation significantly reduces heat loss, resulting in lower operating costs, enhanced energy efficiency, and safer surface temperatures during operation.

Q: What are the main advantages of using this electric resistance heating furnace?

A: Key benefits include high efficiency, precise temperature control, uniform heating, robust safety features, and customizable options to suit specific operational requirements, all powered by clean electric energy.
