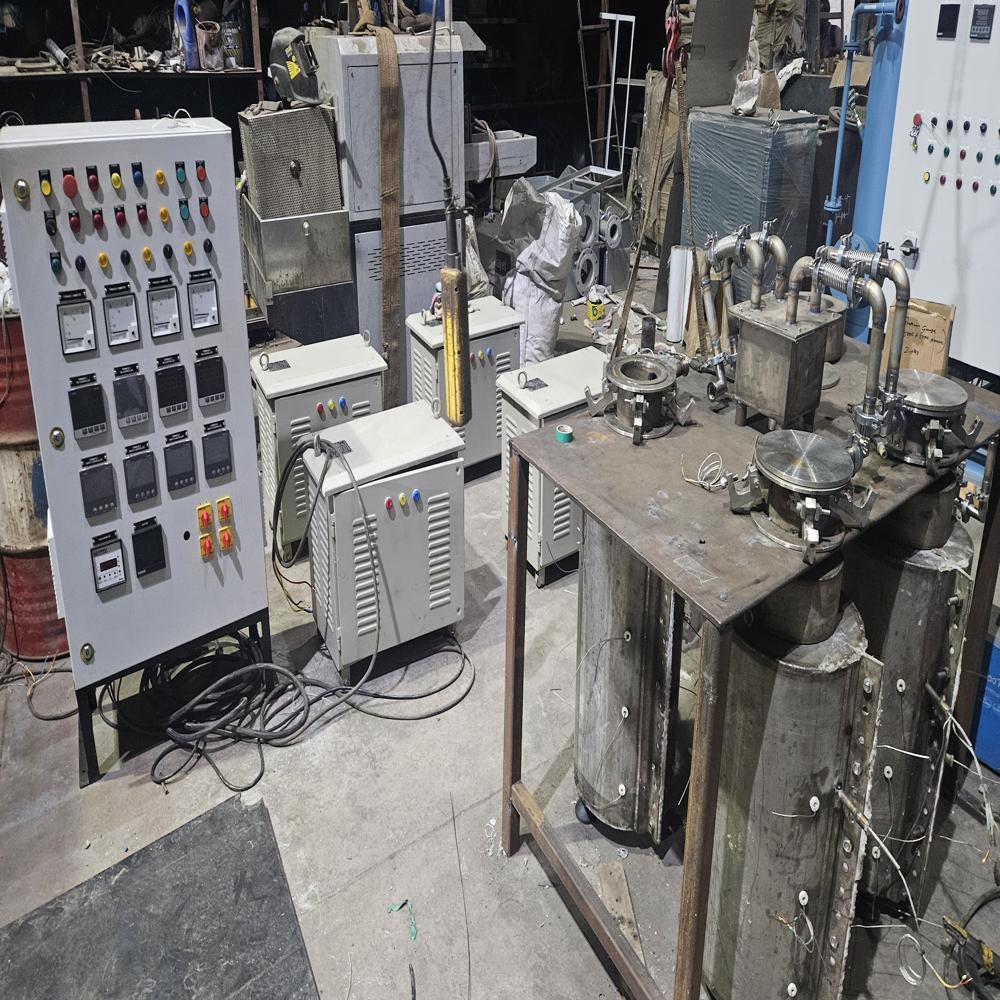

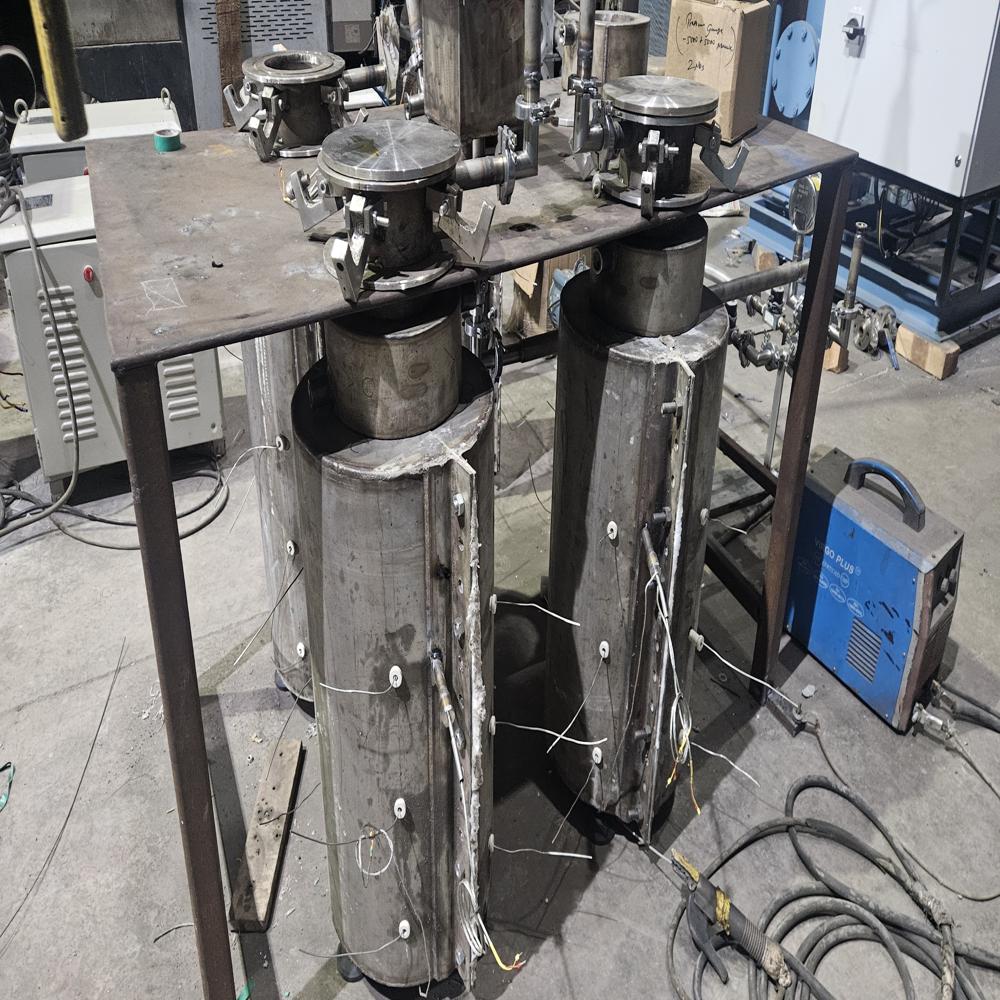

Split Tube Furnace

Name: Split Tube Furnace
Brand: UNITED ENTERPRISES
Price: 600000.0 INR
Availability: InStock

Price 600000.0 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

Split Tube Furnace Specification

Glass Size
Compatible with various quartz, alumina, and ceramic tube sizes

Rating
Up to 1200C continuous

Feature
Hinged design for easy loading/unloading, Digital PID controller, Over-temperature protection, Uniform temperature zone

Condition
New

Type
Split Tube Furnace

Usage
Laboratory, Research Institutes, Industrial Testing

Power
2 kW - 8 kW (model dependent)

Voltage
220V/240V AC, 50Hz

Size
Customizable (Standard sizes: 25mm, 50mm, 75mm ID)

Dimensions
Dependent on tube and chamber size (Typical: 600 mm L 400 mm W 400 mm H)

Weight
Approx. 40-60 kg, varies with model

Application
Heat treatment, Annealing, Sintering, Material Synthesis

Fuel Type
Electric

Capacity
Supports tubes up to 1200 mm length

Thermocouple Type
K-type or S-type (optional)

Ambient Operating Temperature
5C to 40C

Chamber Construction
Double-walled, powder-coated steel exterior

Safety Feature
Door interlock, Over-temperature alarm, Power cut-off on door opening

Control System
Digital PID controller with program profile capability

Mounting
Table-top, compact design

Tube Material Compatibility
Quartz, Alumina, Ceramic, Metal

Temperature Uniformity
1C at the center zone

Heating Element
High-quality Kanthal or Silicon Carbide elements

Display
LED/LCD temperature display

Insulation
High-efficiency ceramic fiber insulation

Accessories Included
Tube adapters, Sample holders, User manual

Cooling System
Optional air cooling or fan-assisted cooling

About Split Tube Furnace

Split Tube Furnace manufactured by United Enterprises is a laboratory and research-grade tube furnace whose heating chamber splits into two halves for easy access to the work tube ideal for sensitive samples and quick experiments.

Brief Description:

Split-tube design simplifies installation and removal of the work tube, sample holders and atmosphere assemblies. This is particularly useful in research labs and pilot-scale studies where frequent tube changes are needed.

We supply split tube furnaces with Kanthal A-1, SiC or MoSi2 heating elements as per temperature range. Programmable 30-step PID controllers, atmosphere ports and modern safety devices are standard.

Each unit is engineered for the customers working tube size, temperature range and process needs.

Characteristics:

Split heating chamber for easy tube access
Maximum temperature up to 1200C in standard models
Programmable 30-step PID controller
Atmosphere ports for inert / reducing / vacuum
Imported heating elements (Kanthal A-1 / SiC)
Compact lab-bench footprint
Safety devices and rugged construction
Customizable as per user requirement

About United Enterprises:

United Enterprises is an established Split Tube Furnace manufacturer in India with over 25+ years of experience in lab and research furnaces. We design, manufacture, supply, export and commission tailor-made split tube furnaces across Asia and Europe. Our in-house engineering, CE / ISO compliant manufacturing and prompt service support serve research labs, universities and R&D-driven industries.

FAQs:

Q: Split vs solid tube furnace?

A: Split design simplifies tube replacement and sample loading; solid design is more compact and sometimes more economical.

Q: Atmosphere capability?

A: Yes. Inert, reducing and vacuum-capable versions with end seals and gas trains are available.

Q: Can I get a high-temperature split furnace?

A: Yes see our High Temperature Split Tube Furnace model with MoSi2 heating elements.

Superior Temperature Uniformity

Our split tube furnace delivers consistent temperature distribution, maintaining a uniformity of just 1C at the center zone. This ensures reliable and repeatable results during sensitive processes like annealing, sintering, and material synthesis. Coupled with a high-precision digital PID controller, the device excels at intricate heat profiles demanded by advanced research and industrial testing.

Advanced Safety Features

Operator safety is a top priority. The furnace features a door interlock mechanism that cuts off power when opened, an over-temperature alarm for added protection, and robust electrical insulation. These measures safeguard both personnel and samples, allowing users to work confidently in laboratory and industrial settings.

Versatile Design and Accessories

Engineered for versatility, the furnace supports a variety of tube materials such as quartz, alumina, ceramic, and metal. Its hinged, split design enables effortless loading and unloading of long tubes, and optional air or fan-assisted cooling further broadens the application range. Included tube adapters, sample holders, and user manual allow for immediate use and convenient setup.

FAQ's of Split Tube Furnace:

Q: How does the split tube furnace ensure temperature uniformity during operation?

A: The furnace uses high-quality Kanthal or silicon carbide heating elements and a digital PID control system, ensuring temperature variation is within 1C at the center zone. High-efficiency ceramic fiber insulation and double-walled construction further enhance uniform heat distribution.

Q: What safety mechanisms are integrated into the furnace?

A: The design incorporates a door interlock that cuts power when opened, an over-temperature alarm, and robust electrical insulation. These features minimize risks and protect both users and materials from accidental exposure to high temperatures.

Q: Which materials are compatible with this split tube furnace?

A: The furnace accommodates tubes made from quartz, alumina, ceramic, and metal, making it suitable for various laboratory and industrial applications. Standard and custom tube sizes can be fitted easily using included adapters.

Q: When should I use the optional air or fan-assisted cooling system?

A: The optional cooling feature is recommended for applications that require faster cooldown times or when handling temperature-sensitive samples. It helps maintain operational efficiency and ensures a controlled thermal environment.

Q: Where can this split tube furnace be utilized?

A: This furnace is ideal for laboratories, research institutes, and industrial testing environments. It is well-suited for processes such as heat treatment, annealing, sintering, and material synthesis, supporting research and production needs.

Q: What is the process to operate and program the digital PID controller?

A: The user-friendly PID controller allows you to set and save custom heat profiles. Simply follow the included user manual for step-by-step programming and monitoring, ensuring precise temperature control throughout your experiments.

Q: What are the primary benefits of using this split tube furnace design?

A: Benefits include superior temperature uniformity, enhanced safety features, a hinged split design for convenient sample handling, and broad compatibility with different tube materials and sizes. The compact, table-top form factor allows easy installation and operation in diverse environments.
