Integral Quench Furnace

About Integral Quench Furnace

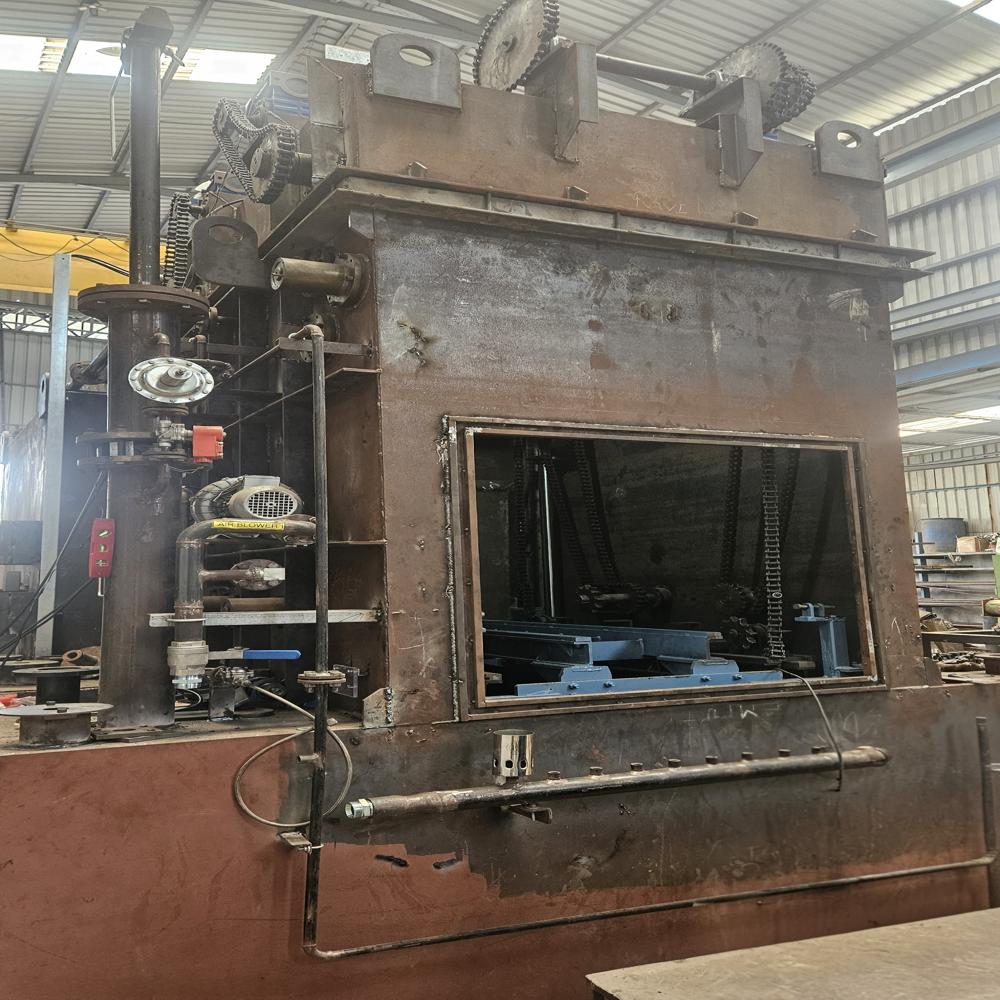

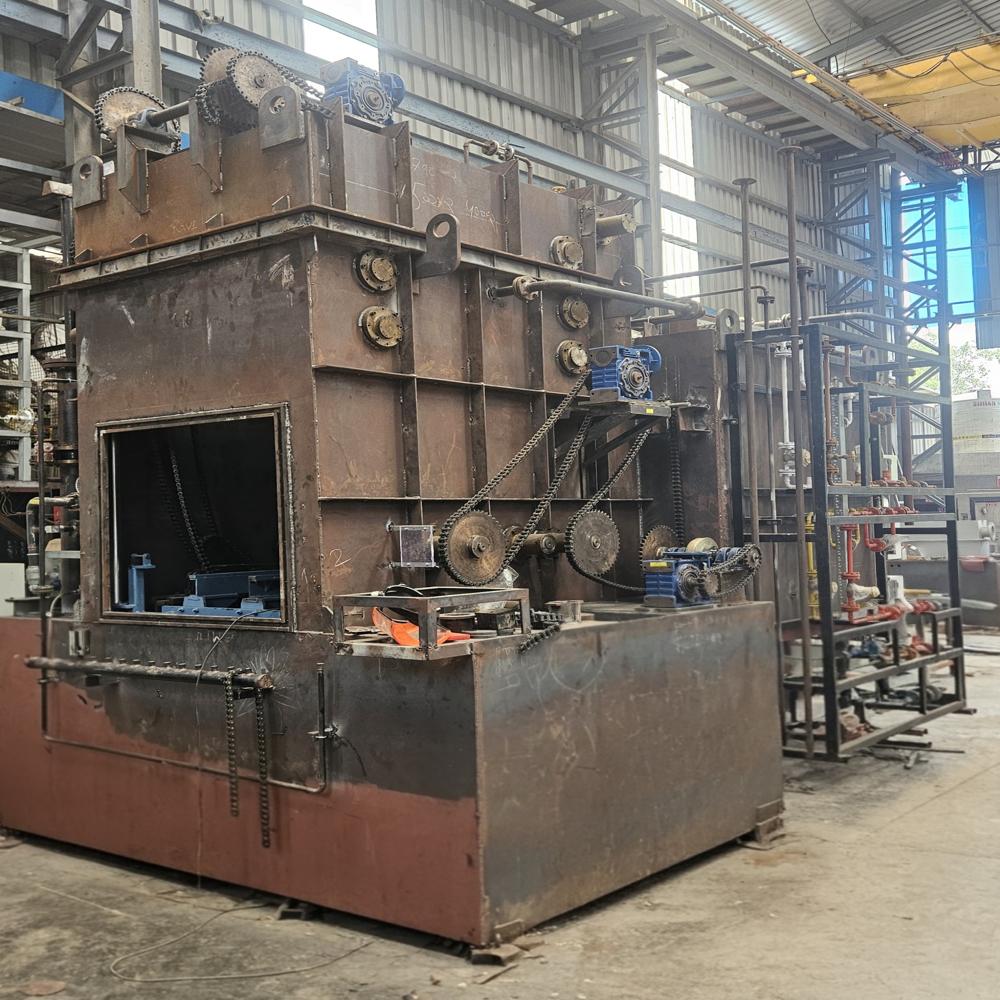

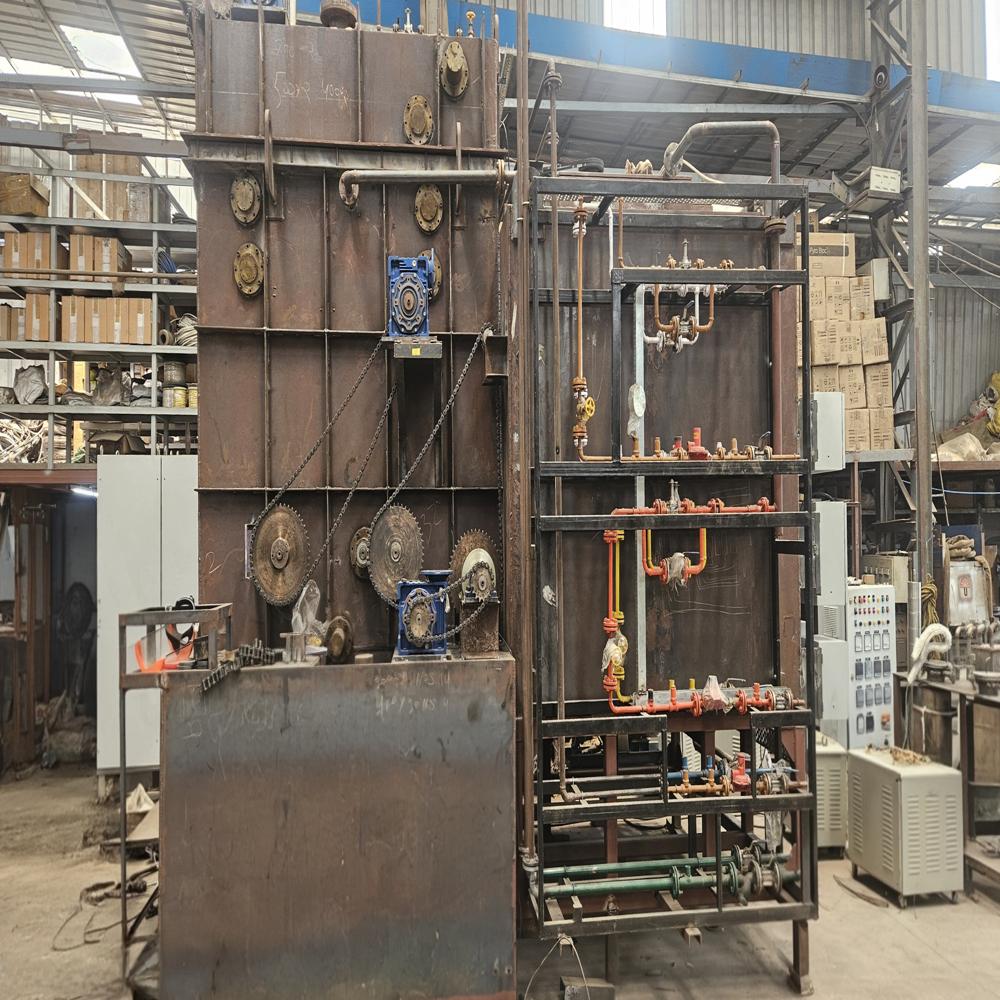

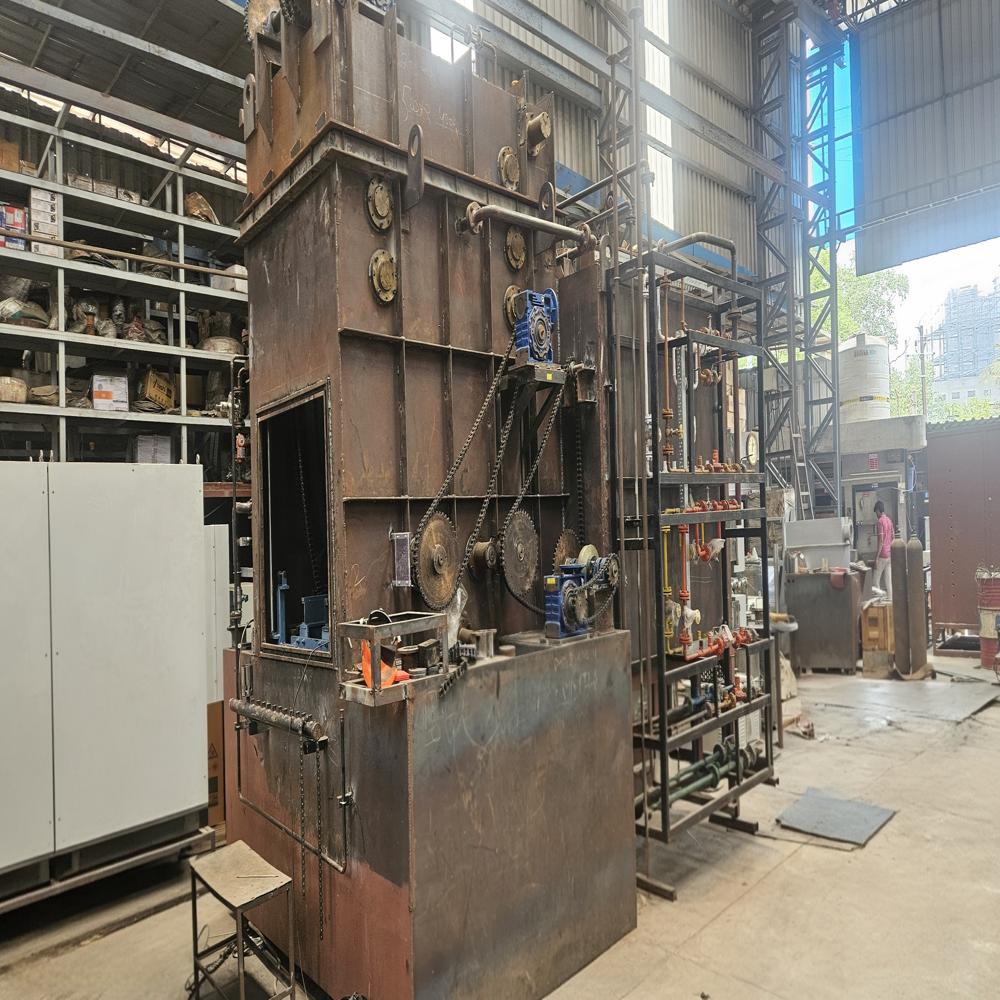

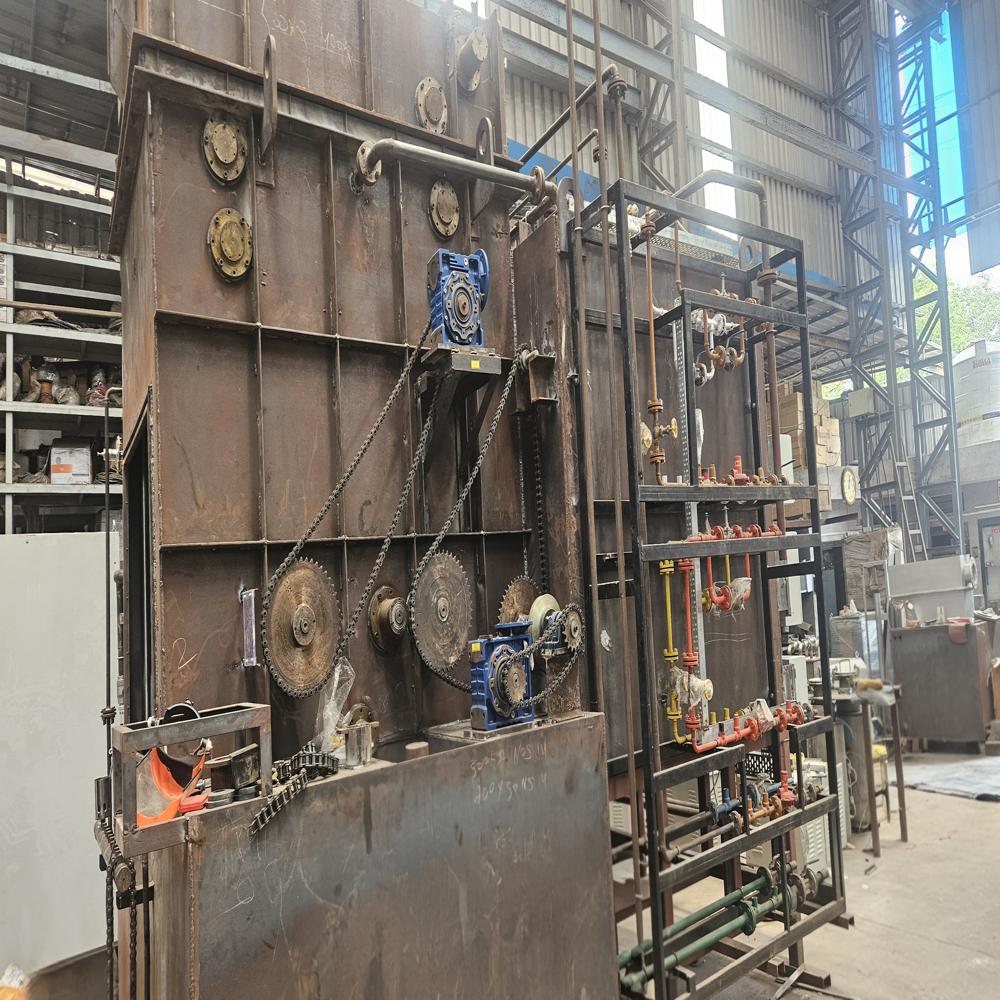

Integral Quench Furnace manufactured by United Enterprises is a sealed-chamber heat treatment furnace with an integrated quench tank the industry-standard configuration for carburizing, carbonitriding and bright hardening.

Brief Description:

Integral Quench Furnaces (IQF) provide tightly controlled atmosphere, repeatable hardening cycles and easy integration into modern heat treatment lines. The integrated tank below the heating chamber allows the load to be transferred to quench in seconds, without exposure to ambient air.

We supply IQFs with our in-house Endo Gas Generator, Ammonia Cracker and Nitrogen Generator. Both electric and recuperative gas-fired heating versions are available. Lines typically include pre-wash, IQF, post-wash and tempering furnace as a complete system.

Each unit is engineered around the customers part mix, atmosphere needs and target metallurgy.

Characteristics:

• Sealed chamber with integrated quench tank
• Maximum temperature up to 1200C
• Endo gas / cracked ammonia atmosphere
• Available in electric and recuperative gas-fired versions
• Low-density high-quality insulation
• In-house gas generators for controlled atmosphere
• Multi-zone PLC and SCADA temperature control
• Maximum operational efficiency

About United Enterprises:

United Enterprises is among the established Integral Quench Furnace manufacturers in India with over 25+ years of experience in modern heat treatment lines. We design, manufacture, supply, export and commission tailor-made IQFs across Asia and Europe. Our turnkey approach, in-house gas generator manufacturing and CE / ISO compliance serve automotive, bearing, gear and engineering industries.

FAQs:

Q: Integral or sealed quench same thing?

A: Essentially yes; both denote a sealed chamber with integrated quench tank. We use both terms based on customer preference.

Q: What atmosphere is most common?

A: Endothermic gas (with controlled carbon potential) for carburizing and carbonitriding.

Q: Do you provide carbon-potential control?

A: Yes. Endo gas, dew point and oxygen probe systems are integrated for precise carbon-potential control.

Superior Construction and Customization

Fabricated from high grade alloy steel, the Integral Quench Furnace ensures longevity and minimal maintenance. Its robust design supports custom sizing and configuration, accommodating industrial needs ranging from 500 kg to 5 tons per batch. The versatile loading systems-pusher or walking beam-simplify material handling, boosting productivity.


Advanced Control and Atmosphere Versatility

With a PLC-integrated HMI, the furnace guarantees precise automation and user-friendly operation. It supports a range of atmospheres including endothermic, nitrogen, methanol, and ammonia, allowing flexible and optimized heat treatment for different materials, enhancing product quality and process control.


Safety, Efficiency, and Energy Savings

Equipped with over-temperature alarms, emergency stop, and flame failure protection, the furnace prioritizes operator and plant safety. High density ceramic fiber insulation minimizes heat loss, resulting in outstanding energy efficiency and stable temperature profiles-essential for uniform heat treatment outcomes.
