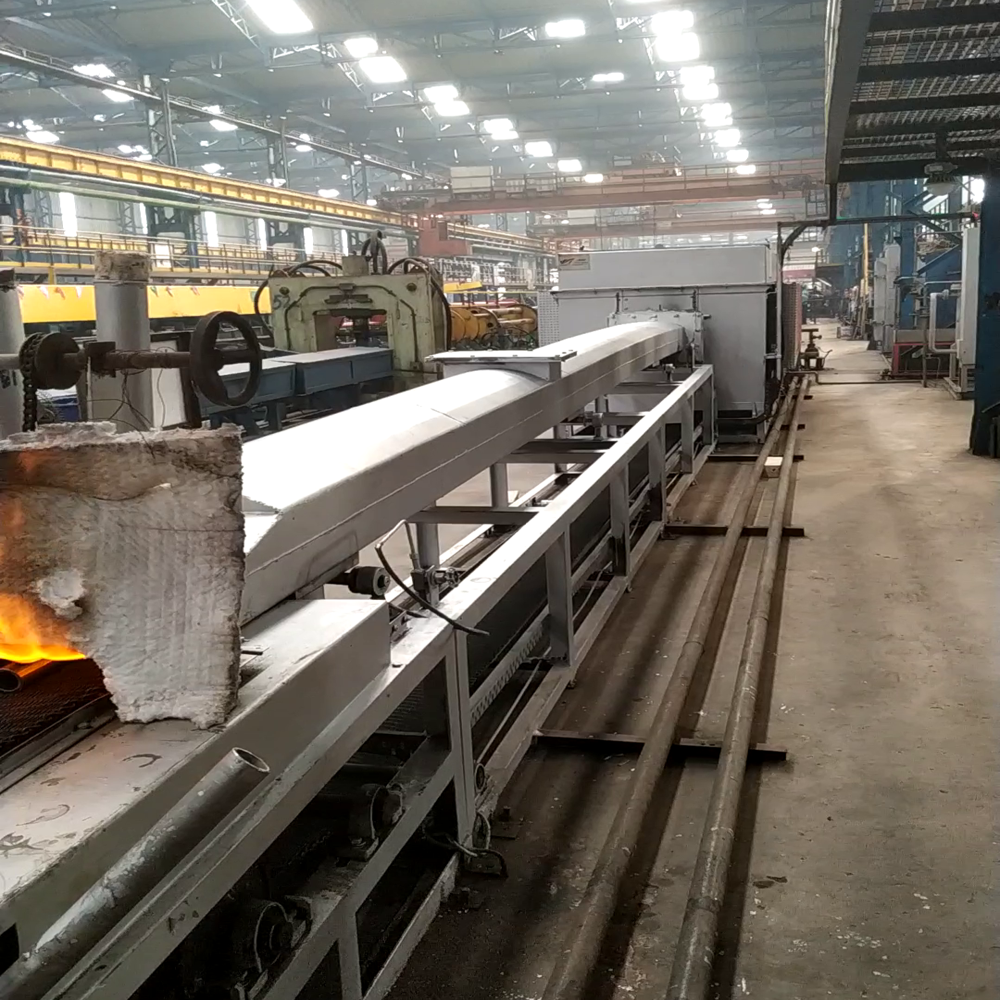

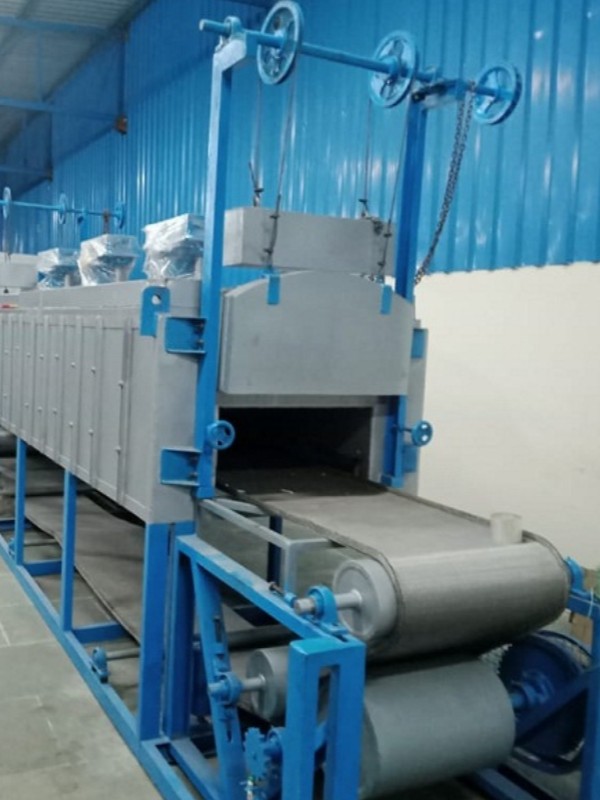

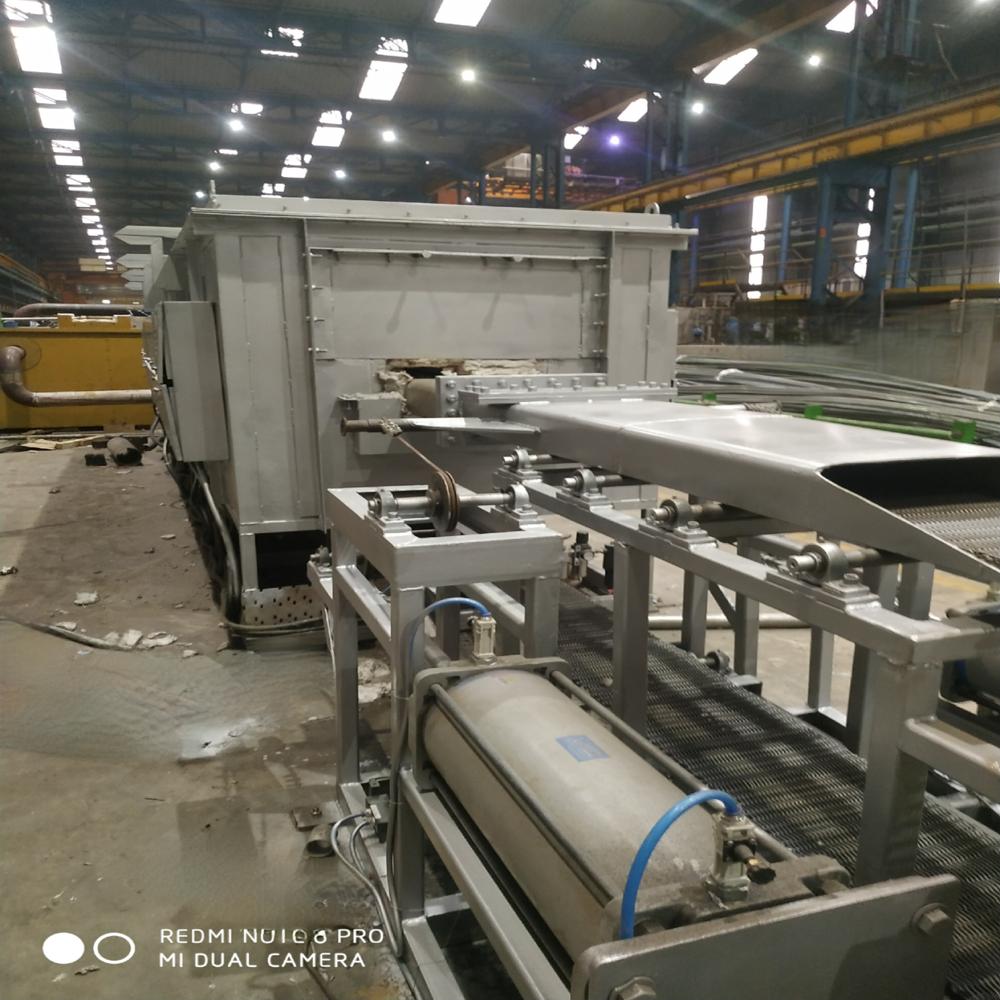

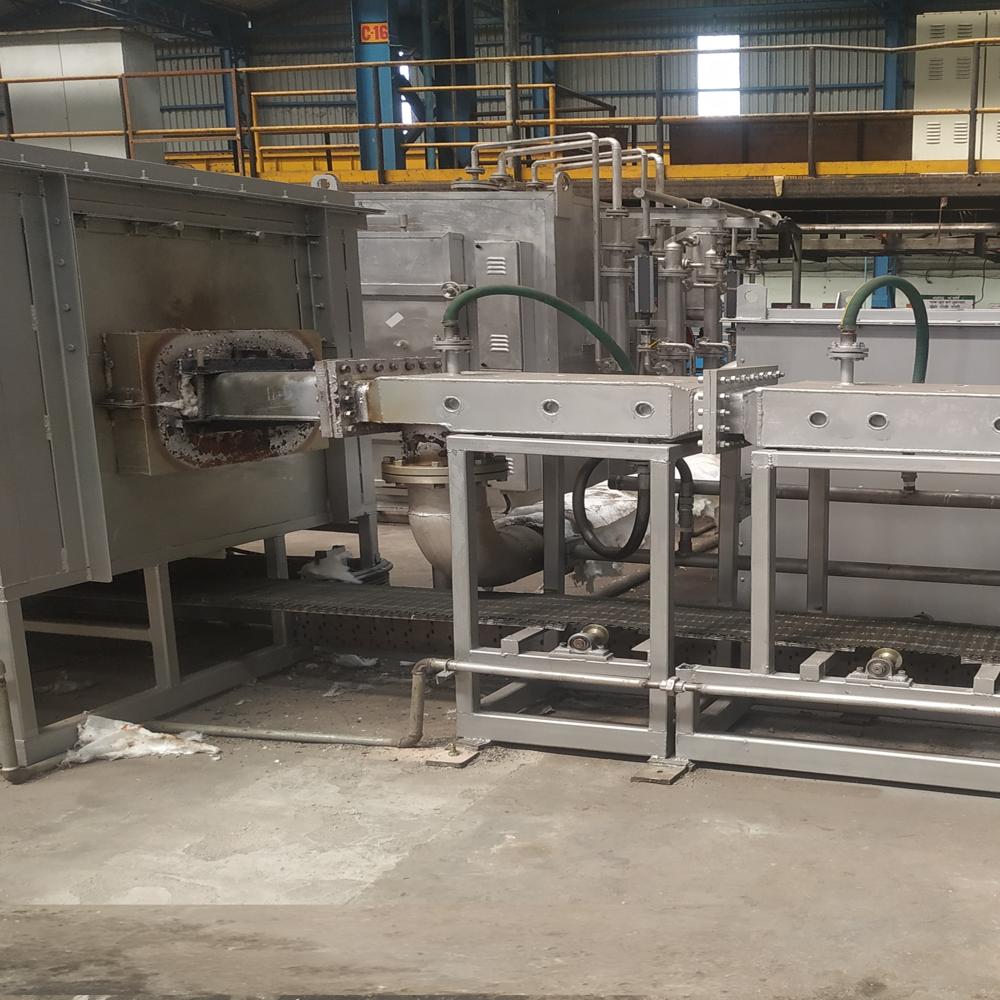

Mesh Belt Conveyor Type Furnace

Name: Mesh Belt Conveyor Type Furnace
Brand: UNITED ENTERPRISES
Price: 2500000.0 INR
Availability: InStock

Price 2500000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Mesh Belt Conveyor Type Furnace Specification

Rating
High efficiency

Feature
Continuous operation, Energy efficient, Uniform temperature control

Condition
New

Type
Mesh Belt Conveyor Furnace

Usage
Industrial heat treatment

Power
5-50 kW (Based on model)

Voltage
220 V / 380 V / 415 V

Size
Customizable as per requirement

Dimensions
Varies (standard and custom sizes available)

Weight
Ranging from 500 kg to several tons depending on size

Application
Annealing, Sintering, Tempering, Brazing

Fuel Type
Electric, Gas or Oil

Capacity
Up to 1000 kg/hr (depends on design)

Cooling Section
Integrated or modular cooling conveyors

Insulation
High-density ceramic fiber / Brick lining

Conveyor Speed
Adjustable, up to 200 mm/min

Heating Zone
Single, Double or Multi-zone

Temperature Range
Up to 1200C

Belt Material
Stainless Steel or Custom Alloy

Automation Level
Semi-automatic / Fully automatic

Belt Width
100 mm to 2000 mm

Safety Features
Overtemperature protection, Emergency stop

Load Type
Continuous or Batch loading possible

Chamber Material
Mild Steel, Stainless Steel, Refractory lining

Installation
On-site installation and commissioning provided

Atmosphere Control
Optional (Inert/Oxidising/Reducing atmospheres)

Control System
PLC based with digital PID controllers

About Mesh Belt Conveyor Type Furnace

Mesh Belt Conveyor Type Furnace manufactured by United Enterprises is a high-output continuous furnace where components are transported on an alloy mesh conveyor through controlled heating and cooling zones.

Brief Description:

This furnace is well suited for industries that need consistent heat treatment of bulk parts fasteners, springs, bearing parts, stampings, hardware and sintered components. The conveyor mesh, made of Inconel alloy, ensures stable belt life under continuous high-temperature service.

We supply both electrically heated and recuperative gas-fired versions with atmosphere control via our own Ammonia Cracker, Endo Gas Generator or Nitrogen Generator. Process zones include heating, soaking, optional quench and tempering as required.

Customization for capacity, dwell time, belt width and atmosphere is part of our standard offering.

Characteristics:

Continuous mesh conveyor design for steady production
High-quality Inconel alloy belt for long life
Suitable for fasteners, springs, bearings, sintered parts
Reducing / inert atmosphere with in-house gas generators
Available in electric or gas-fired heating
Multi-zone PLC temperature control with 1C accuracy
Integrated water/oil quench and belt tensioning
Fully automated SCADA system

About United Enterprises:

United Enterprises is a trusted Mesh Belt Conveyor Type Furnace manufacturer in India with over 25+ years of industrial experience. We design, manufacture, supply, export and commission tailor-made conveyor furnaces across Asia and Europe. As a turnkey furnace solution provider with in-house gas generator manufacturing and CE/ISO compliance, we are a preferred partner for high-volume heat treatment plants.

FAQs:

Q: How do I choose between mesh belt and cast link belt furnace?

A: Mesh belt is ideal for lighter, smaller components. For heavy or abrasive loads, a cast link belt furnace is more durable. Our team helps you pick the right design.

Q: Can the furnace be used for low-temperature tempering?

A: Yes. We offer mesh belt furnaces for both high-temperature hardening and low-temperature tempering. Often both are supplied as a connected line.

Q: What kind of training do you offer?

A: We provide hands-on operator training, process settings handover and detailed O&M manuals at the time of commissioning.

Ending Soon: Discover the opulent Mesh Belt Conveyor Type Furnace, now offered at a reduced price for a limited time! This celebrated industrial furnace is perfect for heat treating, annealing, sintering, tempering, and brazing applications. Designed with customizable belt widths (100-2000 mm), this new, high-efficiency system features PLC-based controls, digital PID controllers, and advanced safety features such as overtemperature protection. With an adjustable conveyor speed and options for atmosphere control, it delivers uniform temperature and energy efficiency. Available in stainless steel or custom alloys, installation is fully supported on-site. Suitable for continuous or batch operations.

Engineered for Excellence: Mesh Belt Conveyor Type Furnace

Constructed with stainless steel or custom alloy belts and insulated by high-density ceramic fiber or refractory brick, this furnace delivers perfect durability and energy efficiency. Its PLC-powered control system and integrated modular cooling conveyors provide celebrated advantages in uniformity and temperature management. Widely utilized by precision-driven industries for annealing and sintering, it offers unmatched adaptability and performance. Flexible loading options cater to both continuous and batch operations, making it indispensable for modern manufacturing environments.

Packing & Dispatch: Global Delivery on Demand

Each Mesh Belt Conveyor Type Furnace is meticulously packed to safeguard every opulent component. Our logistics team coordinates secure and efficient dispatching from the designated FOB port. Packaging includes reinforced wooden cases and shock-absorbing materials to ensure flawless arrival. We support global exports across main markets in Asia, the Middle East, Europe, and North America. Every unit undergoes a thorough inspection before packing & dispatch, guaranteeing international standards and prompt delivery timelines.

FAQ's of Mesh Belt Conveyor Type Furnace:

Q: How does the Mesh Belt Conveyor Type Furnace benefit industrial operations?

A: The furnace ensures high efficiency, energy savings, and uniform temperature control, enabling precise and continuous heat treatment for various industrial processes such as annealing, sintering, tempering, and brazing.

Q: What materials and sizes are available for the conveyor belt?

A: Belt materials include stainless steel or custom alloys, with widths ranging from 100 mm to 2000 mm, and the size is fully customizable to meet specific requirements.

Q: Where can the Mesh Belt Conveyor Type Furnace be installed?

A: We provide on-site installation and commissioning, allowing seamless integration into existing industrial facilities anywhere in the world.

Q: When is the best time to undergo maintenance for this furnace?

A: Routine maintenance is recommended as per the manufacturer's schedule, typically after a certain number of operational hours or production cycles, to ensure optimal performance and longevity.

Q: What is the process for adjusting conveyor speed and temperature?

A: The PLC-based control system with digital PID controllers enables precise adjustment of conveyor speed (up to 200 mm/min) and temperature (up to 1200C) to suit operational needs.

Q: How is the furnace packaged for international shipping?

A: Each unit is securely packed in reinforced wooden cases with appropriate cushioning, ensuring components remain fully protected during logistics and global transportation.
